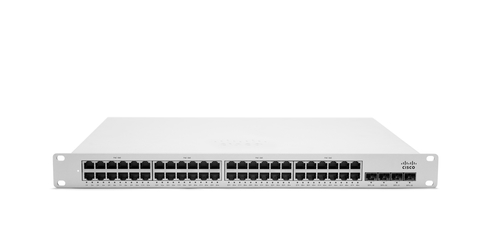

Cisco MS350-48FP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Name: Cisco MS350-48FP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Brand: Cisco
SKU: MS350-48FP-HW
Price: 8916.41 EUR
Availability: OutOfStock

Cloud Managed Switching for the Mission Critical Network

Cloud management

- Visibility and control over thousands of ports
- Built-in multi site management
- Zero touch provisioning

Monitoring and diagnostics

- Cable failure testing
- Gateway connectivity testing
- Real time troubleshooting tools
- Email and text message alerts

Layer 3

- Dynamic routing (OSPFv2)
- Static routing
- DHCP Relay
- DHCP Server
- First of a kind UI-based configuration
- Easy to configure routed interfaces
- Warm spare redundancy (VRRP)
- DHCP Failover

ON ORDER

SKU: MS350-48FP-HW

Manufacturer: Cisco Cisco

RRP Price €8,916.41

Specifications

Management features

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Yes

Web-based management

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

SFP+ module slots quantity

ExpressCard slot

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z

10G support

Yes

Copper ethernet cabling technology

10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T

Link aggregation

Yes

Broadcast storm control

Yes

Auto MDI/MDI-X

Yes

Spanning tree protocol

Yes

Auto-negotiation

Yes

VLAN support

Yes

Virtual LAN features

Tagged VLAN

Number of VLANs

4095

Data transmission

Switching capacity

176 Gbit/s

MAC address table

96000 entries

Security

DHCP features

DHCP server

IGMP snooping

Yes

Security algorithms

802.1x RADIUS

Authentication

Port-based authentication

Multicast features

Multicast support

Yes

Protocols

Management protocols

SNMP v2c

Design

Rack mounting

Yes

Stackable

Yes

Form factor

Product colour

Grey

LED indicators

Yes

Performance

Physical stacking (units)

Firmware upgradeable

Yes

Power

Power supply included

Yes

AC input voltage

100 - 240 V

AC input frequency

47/63 Hz

Power consumption (typical)

70 W

Power consumption (max)

888 W

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) power per port

25.5 W

Total Power over Ethernet (PoE) budget

740 W

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Operating relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

485 mm

Depth

554 mm

Height

44 mm

Weight

6.8 kg

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Cisco

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

6.8 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
