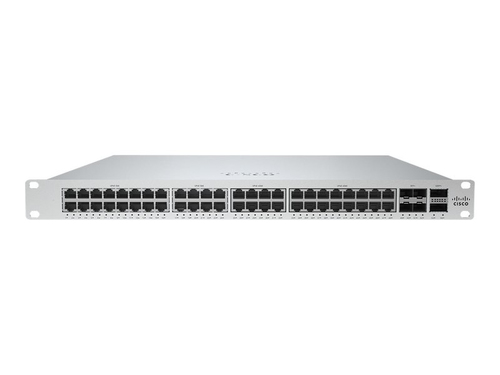

Cisco Meraki MS355-48X2 Managed L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Silver

CLOUD-MANAGED STACKABLE MULTI-GIGABIT SWITCHES

The Cisco Meraki MS355 series provides full 10G multi-gigabit (mGig) access switching for demanding enterprise and campus environments.

The switch series features a high mGig port density for 802.11ax wireless access points, servers, and workstations. The family supports 40G or 10G uplinks, physical stacking, up to 60W of port
power with UPoE, and field replaceable power supplies/fans.

All Meraki switches are managed through an elegant, intuitive cloud-based interface, rather than cryptic command line.

To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.

Meraki’s centralized management platform gives administrators granular visibility into their network. Our dashboard helps you keep track of every configuration change in your network with our detailed event and change logs.

ON ORDER

SKU: MS355-48X2-HW

Manufacturer: Cisco Cisco

RRP Price €14,178.66

Specifications

Management features

Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes
Packet redirection
Yes
System event log
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
Gigabit Ethernet (copper) ports quantity
24
SFP+ module slots quantity
4
QSFP+ module slots quantity
2

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x
Port mirroring
Yes
Full duplex
Yes
Policy-based routing
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Multicast VLAN, Stacked VLAN, Voice VLAN
Number of VLANs
4094

Optical fiber

Switching optical modules type
100 Gigabit Ethernet

Data transmission

Switching capacity
688 Gbit/s
Forwarding rate
512 Mpps
MAC address table
32000 entries
Number of queues
8
Static route
Yes
Jumbo frames support
Yes
Jumbo frames
9600
Packet forwarding
Yes

Security

DHCP features
DHCP snooping, DHCP relay
Access Control List (ACL)
Yes
IGMP snooping
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication, Port-based authentication, Web-based authentication
Root protection
Yes
BPDU tunneling
Yes
Password protection
Yes
ARP attack prevention
Yes
Persistent MAC Learning (Sticky MAC)
Yes
Authentication type
RADIUS
Whitelist
Yes
Neighbor discovery snooping
Yes

Multicast features

Multicast support
Yes

Protocols

Switching protocols
DSCP-to-CoS, RSTP, STP, CDP, LLDP
Routing protocols
CDP
IPv4 & IPv6 features
Dual stack IPv4/IPv6

Design

Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Silver
Number of fans
3 fan(s)

Performance

Mean time between failures (MTBF)
330.228 h

Power

Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
47/63 Hz
Power consumption (typical)
740 W
Power consumption (max)
1723 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
516.6 mm
Depth
484.6 mm
Height
43.7 mm
Weight
5.96 kg

Packaging content

Cables included
AC, LAN (RJ-45)
User guide
Yes
Manual
Yes

Packaging data

Package type
Box

Certificates

Certification
CSA-US, FCC, IC, CE, RCM, RoHS

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
