Tripp Lite P136-06N-HVV2BP DisplayPort to VGA/HDMI All-in-One Converter Adapter, DP ver 1.2, 4K 30 Hz HDMI, 50 Pack

A Smart Solution for Displaying 4K Video in Business and Digital Signage Applications
This set includes 50 P136-06N-HV-V2 DisplayPort 1.2 to VGA/HDMI passive adapters. Each adapter allows you to play high-definition or Ultra High Definition video with audio from your DisplayPort computer to a VGA or HDMI display. No more carrying around separate adapters for various monitors, projectors and televisions. The simple all-in-one solution for displaying content on a larger screen, these units are an easy, inexpensive way to play high-quality video in classrooms, conference rooms, trade shows and other on-the-road presentations.

Ready to Use Right Out of the Package

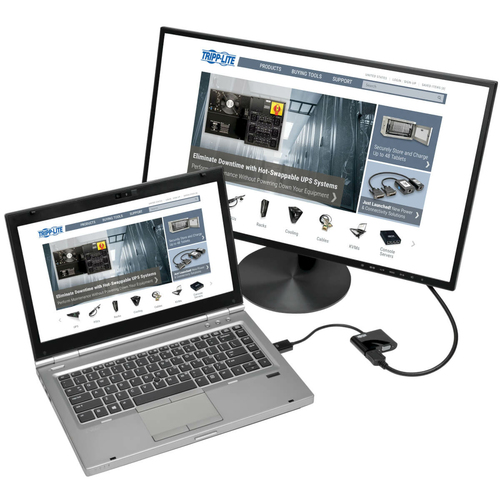

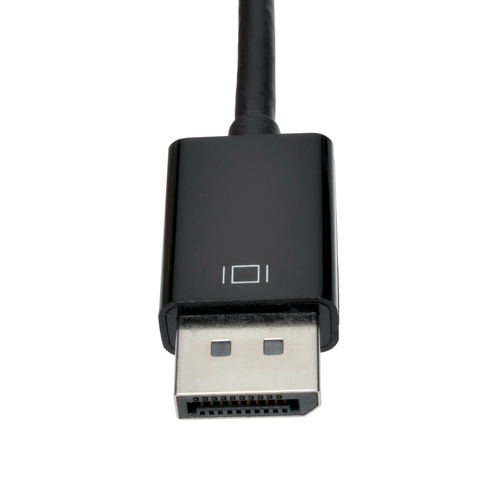

Ideal for displaying video on a large monitor or digital sign, each adapter is perfectly sized for carrying in your pocket, briefcase, purse or laptop bag for convenient use anywhere. Just connect the male DP end to your computer’s DisplayPort and the female VGA or HDMI connector to a compatible cable to begin sharing audio/video signals. Only one display may be connected at a time. The plug-and-play P136-06N-HV-V2 requires no software, drivers or external power.

Enjoy Outstanding Picture Quality up to 4K x 2K

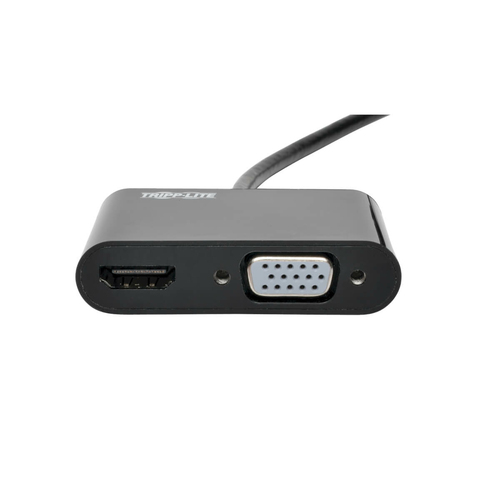

The all-in-one unit contains separate female HD15 and HDMI ports. It supports video resolutions up to 1920 x 1200, including 1080p (HD15), and 4K x 2K (HDMI) at 24/30 Hz.

Passive Adapters Require DisplayPort++ for HDMI Pass Through
Because they are passive adapters, these units require that the connected source device have a DisplayPort++ (DP++) dual-mode port, which allows HDMI signals to pass through. Check your DisplayPort source’s documentation for compatibility.

ON ORDER

SKU: P136-06N-HVV2BP

Manufacturer: Eaton Eaton

RRP Price €901.10

Specifications

Features

Connector 1 form factor
Straight
Connector contacts plating
Nickel/Gold
Cable length
0.15 m
Connector 1
DisplayPort
Connector 2
HDMI + VGA (D-Sub)
Connector 1 gender
Male
Connector 2 gender
Female
HDMI version
1.4
HDCP
Yes
HDCP version
1.4
Maximum resolution
3840 x 2160 pixels
Supported graphics resolutions
1920 x 1200 (WUXGA), 3840 x 2160
Supported video modes
1080p, 2160i
Maximum refresh rate
60 Hz
Product colour
Black
Jacket material
ABS synthetics, Polyvinyl chloride (PVC)
Plug and Play
Yes
Country of origin
China

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 90%

Certificates

Compliance certificates
RoHS
Certification
CE, FCC, REACH

Weight & dimensions

Cable diameter
4.5 mm
Weight
50 g

Packaging data

Package width
279.9 mm
Package depth
249.9 mm
Package height
150.1 mm
Package weight
2.44 kg

Packaging content

Quantity per pack
50 pc(s)

Logistics data

Master (outer) case width
519.9 mm
Master (outer) case length
325.1 mm
Master (outer) case height
300 mm
Master (outer) case gross weight
10 kg
Products per master (outer) case
4 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332237672
