StarTech.com 4x4 HDMI Matrix Video Switch Splitter with Audio and RS232

The VS440HDMI 4x4 HDMI® Audio/Video Matrix Switch/Splitter (with Audio and RS232) lets you share up to 4 distinct HDMI or DVI inputs (using HDMI to DVI adapters - not included), with audio, between 4 independent displays or projectors.

Providing convenient front push-button and RS232 PC software control, this matrix switch allows each input and the corresponding audio to be switched individually, meaning that different A/V sources can be shown on each output, or a single source can be output to several offering maximum flexibility.

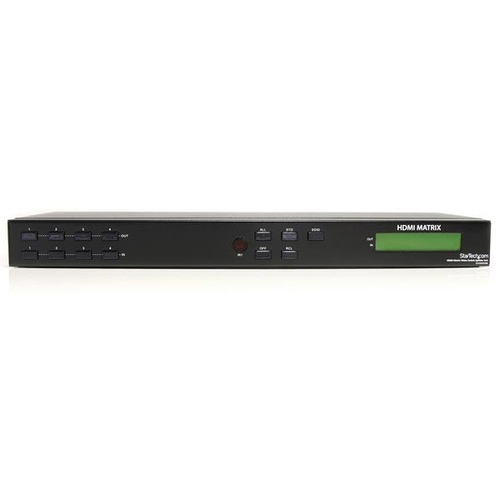

The switcher features a front panel LCD display for easy status monitoring, plus an included remote control and IR extender module for simple control from a distance.

Designed to provide maximum functionality while saving space, the HDMI Video Matrix Switch can be used as a standalone solution or rack-mounted using ear-mounts (included).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Matrix switching functionality gives you full control of the video source displayed on each monitor, at the touch of a button
- Front panel push-buttons, RS-232 PC port and IR remote included for simple control and flexible switching options
- Storage of display configurations allow for convenient recall of preferred combinations

ON ORDER

SKU: VS440HDMI

Manufacturer: StarTech.com StarTech.com

RRP Price €747.45

Specifications

Features

Product type
AV matrix switcher
Maximum resolution
1920 x 1200 pixels

Design

Housing colour
Black
Rack mounting
Yes
LED indicators
Yes
Certification
CE, FCC, TAA, REACH

Display

Built-in display
Yes

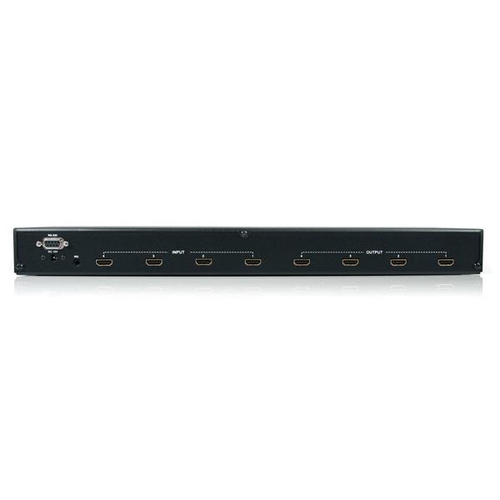

Ports & interfaces

HDMI input ports quantity
4
HDMI output ports quantity
4
RS-232 ports
1

Power

Power consumption (typical)
18 W
AC input voltage
100 - 240 V
Input current
0.6 A
Output current
1500 mA
Output voltage
12 V

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-20 - 85 °C
Operating relative humidity (H-H)
0 - 95%

Logistics data

Harmonized System (HS) code
85299097

Technical details

Compliance certificates
RoHS

Weight & dimensions

Width
185 mm
Depth
440 mm
Height
42 mm
Weight
2.4 kg
Package width
263 mm
Package depth
581 mm
Package height
90 mm
Package weight
3.1 kg

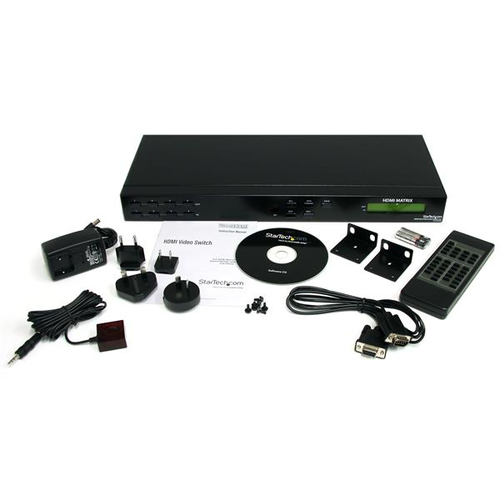

Packaging content

Cables included
RS-232
Rack mount kit
Yes
Manual
Yes
Mounting brackets included
Yes
AC adapter included
Yes
Screws included
Yes
Number of screws
6
Included power plug types
AU, EU, UK, US
IR extender included
Yes

Accessories

License
