5420F-48P-4XE-TAA

Trendnet TEG-S51SFP network switch Unmanaged Gigabit Ethernet (10/100/1000) Black Other

- 4 x Gigabit ports- 1 x SFP slot- 10 Gbps switching fabric- Quality of Service traffic prioritization (802.1p QoS)- Jumbo Frame support- Fanless design- Metal housing- Magnet Mount- Limited Lifetime WarrantyTRENDnet’s metal housing 4-Port Gigabit Switch with SFP Slot, model TEG-S51SFP, provides performance, proven reliability, and flexible extension of your Gigabit network. This fanless unmanaged desktop switch offers a total switching capacity of 10 Gbps combined with the flexibility of fiber networking. 802.1p QoS maintains your voice and video priority throughout the network. Magnetic mounting kit for easy and flexible setups.Plug and PlaySimply power up the switch and plug in connected devicesRear Facing Ports4 x Gigabit Ethernet ports and 1 x SFP slotSwitching Capacity10 Gbps switching capacityJumbo FrameSends larger packets, or Jumbo Frames (up to 9 KB), for increased performanceLED IndicatorsLED indicators convey port statusFanlessFanless design lowers energy consumption and eliminates operating noiseHousingRugged metal enclosure with magnet mount

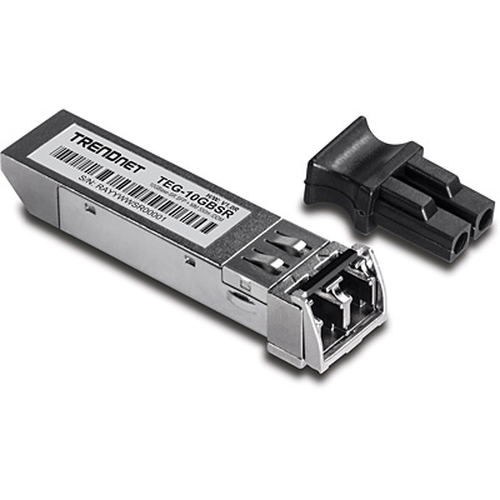

Trendnet TEG-10GBSR network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm Other

TRENDnet’s hot-pluggable TEG-10GBSR, 10GBASE-SR SFP+ Multi Mode LC Module, works with a MSA compliant SFP+ slot. This Multi Mode transceiver spans distances up to 550 meters (1,804 feet), comes with a LC duplex connector, and supports up to 10.5 Gbps networking throughput speeds. Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage.Hot-Pluggable SFP+Hot-pluggable SFP+ transceiver works with a MSA compliant SFP+ slotFiber WavelengthCompatible with Multi Mode 850 nm transmissionsFiber DistanceSupports networking for distances up to 550 meters (1,804 feet)Fiber PortLC-type duplex connectorDDM SupportDigital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltagePower SupplySingle 3.3 volt power supplyOperating TemperatureRated for an operating temperature range of 0 to 70 °C (32 to 158 °F)StandardsCompliant with SFF-8431, SFF-8432, SFF-8472, FC-PI-4,10G FC, and IEEE802.3ae 10GBASE-SR

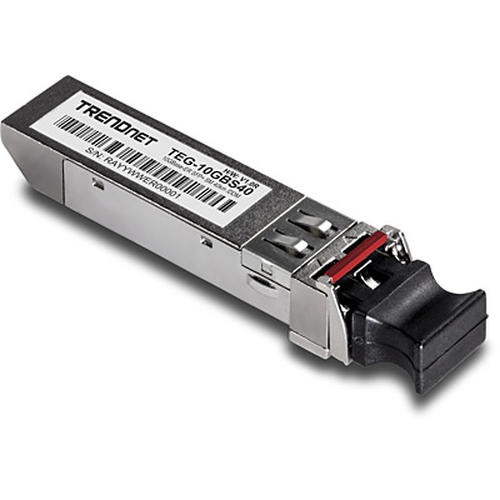

Trendnet TEG-10GBS40 network transceiver module Fiber optic 10000 Mbit/s SFP+ 1550 nm Other

TRENDnet’s hot-pluggable TEG-10GBS40, 10GBASE-ER SFP+ Single Mode LC Module, works with a MSA compliant SFP+ slot. This Single Mode transceiver spans distances up to 40 km (24.9 miles), comes with a LC duplex connector, and supports up to 10.3 Gbps networking throughput speeds. Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage.Hot-Pluggable SFP+Hot-pluggable SFP+ transceiver works with a MSA compliant SFP+ slotFiber WavelengthCompatible with Single Mode 1550 nm transmissionsFiber DistanceSupports networking for distances up to 40 km (24.9 miles)Fiber PortLC-type duplex connectorDDM SupportDigital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltagePower SupplySingle 3.3 volt power supplyOperating TemperatureRated for an operating temperature range of 0 to 70 °C (32 to 158 °F)StandardsCompliant with SFF-8431, SFF-8472, IEC-60825, FDA 21 CFR 1040.10/ 1040.11, and IEEE802.3ae 10GBASE-ER/EW

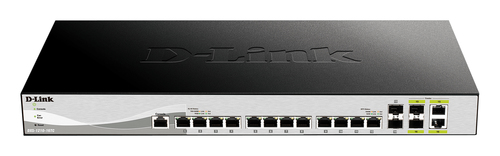

D-Link DXS-1210-16TC/E network switch Managed L2 10G Ethernet (100/1000/10000) Grey Other

X465-48T-B3 Other

Trendnet TI-S12048 v1.0R network switch component Power supply Other

TRENDnet’s high efficiency 120 W Single Output Industrial DIN-Rail Power Supply, model TI-S12048 (Mean Well SDR-120-48), supplies up to 120 Watts (48 V, 2.5 A) of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection.120 Watt PowerProvides up to 120 Watts (48 V, 2.5 A) of power for PoE devices such as switches, network cameras, and access pointsActive PFCThe built-in active Power Factor Controller (PFC, PF > 0.93) helps eliminate unusable reactive powerOverload ProtectionOverload/short circuit/over voltage/over temperature protectionFull Load TestThis power supply undergoes a 100 % full load burn-in testPassive CoolingCooling by free air convectionDIN-Rail MountMetal enclosure with integrated DIN-rail mountExtreme TemperaturesRated for an operating temperature range of -25 to 70 °C (-13 to 158 °F)Safety CertificationsCertified for UL 508 and TUV EN60950-1Electro Magnetic Emission/ImmunityCompliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approvedVibration ResistantRated for vibrationLED IndicatorLED indicator confirms power to the unit

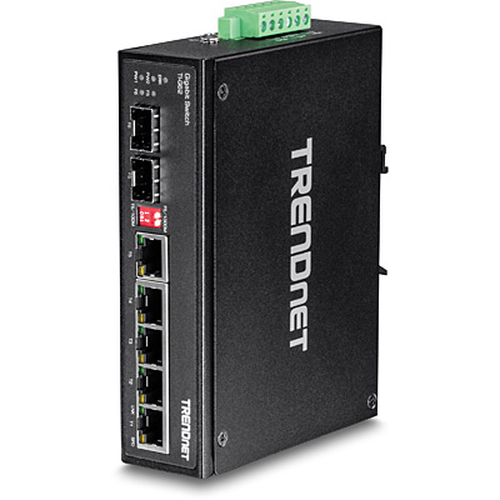

Trendnet TI-G62 network switch Unmanaged L2 Gigabit Ethernet (10/100/1000) Black Other

TRENDnet’s TI-G62 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit Ethernet ports, one shared SFP slot, one dedicated SFP slot, and a 12 Gbps switching capacity. DIP switches toggle between the shared Gigabit port and SFP slot and set supported throughput to either 100 Mbps or 1 Gbps. Dual redundant power inputs (power supply sold separately: TI-M6024) and a power failure alarm output trigger support zero downtime applications.

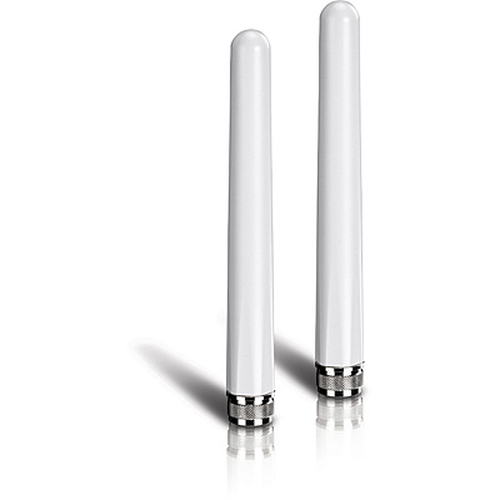

Trendnet TEW-AO57 network antenna Omni-directional antenna N-type 7 dBi Other

TRENDnet’s 5/7 dBi Outdoor Dual Band Omni Antenna Kit, model TEW-AO57, comes with a pair of high performance outdoor antennas which support 2.4 and 5 GHz radio transmissions. The omni-directional antennas provide blanket wireless coverage and have N-Type male connectors. The antennas work with 802.11ac/n/g/b/a routers and access points with N-Type female connectors.- Antenna KitComes with a pair of outdoor antennas- OutdoorDurable antenna construction for extreme outdoor conditions- Omni-DirectionalOmni-directional antennas for blanket wireless coverage- Dual Band Support (2.4 + 5 GHz)Compatible with 802.11ac/n/g/b/a routers and access points- Antenna Gain2.4 GHz peak gain: 5 dBi, 5 GHz peak gain: 7 dBi- N-Type ConnectorN-Type male connectors are compatible with routers and access points with N-Type female connectors* Effective wireless coverage may vary depending on the wireless device's output power, antenna gain, antenna align-ment, receiving sensitivity, and radio interference. Additionally environmental factors such as weather conditions, physical obstacles, and other considerations may affect performance. For optimal results, we recommended consulting a professional installer for site survey, safety precautions, and proper installation.

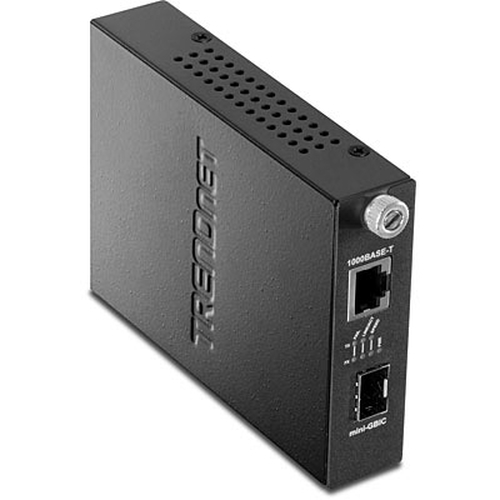

Trendnet TFC-1000MGA network media converter Internal 1000 Mbit/s Multi-mode Black, Silver Other

TRENDnet’s 100/1000BASE-T to SFP Media Converter, model TFC-1000MGA, is a reliable Plug-and-Play Fiber-to-Ethernet converter in a compact form factor. This versatile fiber converter supports both Multi-Mode (SX) and Single-Mode (LX) fiber standards for transmission distances of up to 80 kilometers (50 miles).The Mini-GBIC slot and Gigabit Ethernet port Auto-Negotiate between 100 and 1000Mbps transmission speeds. Diagnostic LEDs on the front of the converter convey device status. Control Auto-Negotiation (Forced/Auto-Negotiation) and Link Loss Return (Enable/Disable) with an internal dip-switch. This sturdy metal housed converter can be installed as a standalone unit and is compatible with TRENDnet’s expandable 16-Bay Fiber Converter Chassis System, model TFC-1600- Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards- 1 x 10/100/1000Base-T RJ-45 port- 1 x 100Base-FX/1000Base-SX/LX Mini-GBIC slot- Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)- Support LLCF (Link Loss Carry Forward, Link Pass Through)- Monitor and configure Ethernet or Fiber’s duplex mode, LLR, and receive link down information via management module TFC-1600MM and chassis TFC-1600- Status LED indicators for Power, Link/Activity and Fail- Wall mountable- Compatible with TRENDnet’s 16-Bay Fiber Converter Chassis System, model TFC-1600 (holds up to 16 TFC series Media Converters)

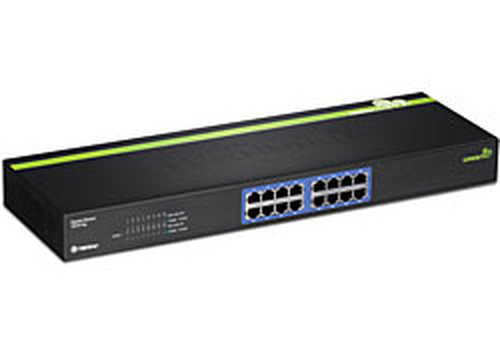

Trendnet TEG-S16G network switch Unmanaged Black Other

- GREENnet technology reduces power consumption by up to 70%- 16 x Gigabit Auto-MDIX RJ-45 ports- Sturdy rackmount metal switch with built in power supply- 32Gbps forwarding capacityThe 16-Port Gigabit GREENnet Switch, model TEG-S16g, provides high bandwidth performance, ease of use, and reliability, all while reducing power consumption by up to 70%*.GREENnet technology automatically adjusts power voltage as needed, resulting in substantial energy savings. Embedded GREENnet technology works right out of the box with no management requirement.Boost office network efficiency and eliminate network congestion with Gigabit speeds and a total switching capacity of 32Gbps with Full-Duplex mode. A built in universal power supply reduces cable clutter and diagnostic LEDs help with network troubleshooting. Plug and Play this sturdy metal switch for reliable high-speed network connectivity.
