Peplink Antenna MAX network antenna SMA antenna SMA 6.6 dBi

Peplink Antenna MAX network antenna SMA antenna SMA 6.6 dBi

Name: Peplink Antenna MAX network antenna SMA antenna SMA 6.6 dBi
Brand: Peplink
SKU: ANT-MAX
Price: 379.54 EUR
Availability: InStock

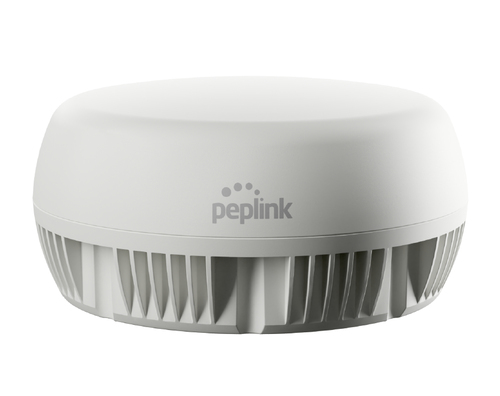

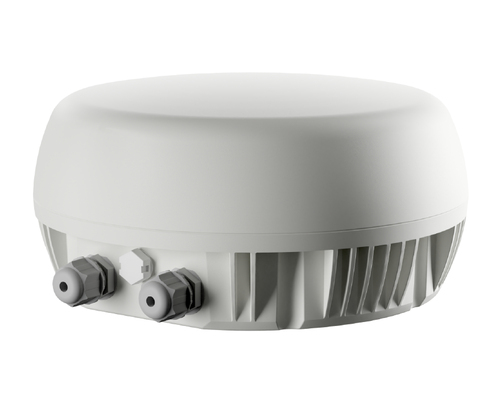

Maximum Flexibility, Maximum Gain
Outdoor Cellular / GPS Antenna + Enclosure

Worried about cable loss?

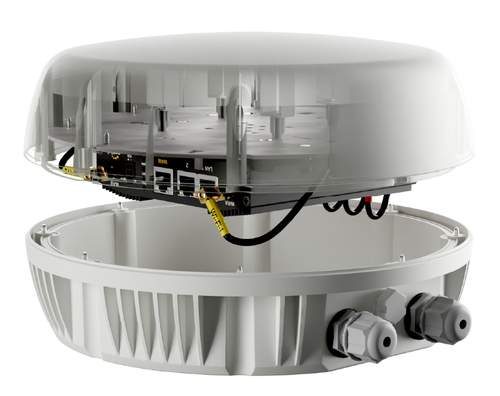

Minimize cable loss by installing your router directly into the antenna enclosure.
Retain maximum signal gain by connecting the Antenna Max to the rest of your network with an ethernet cable.

Maximum durability
UV-resistant plastic enclosure resists moisture, water intrusion, salt spray and corrosion

Maximum value
Antenna Max is a cost-effective way to get maximum performance from your cellular and 5G routers in outdoor environments

96 IN STOCK

SKU: ANT-MAX

Manufacturer: Peplink Peplink

RRP Price €379.54

Specifications

Performance

Frequency band

5 - 6 GHz

Antenna gain (2.4 GHz)

6.2 dBi

Antenna gain (5 GHz)

6.6 dBi

Impedance

50 Ω

Antenna gain level (max)

6.6 dBi

LNA gain

27 dB

GPS frequency

600-6000 MHz

Noise figure

2.5 dB

Features

Antenna type

SMA antenna

Antenna connector type

SMA

Connector gender

Male

Polarization

Horizontal polarization

Voltage Standing Wave Ratio (VSWR)

< 2.0

Product colour

White

Housing material

Polycarbonate (PC)

International Protection (IP) code

IP67

Ultraviolet (UV) resistant

Yes

Power handling

10 W

Mounting

Wall/Pole

Power

Power consumption

10 mA

Input voltage

3.3 V

Certificates

Compliance certificates

REACH, RoHS, WEEE

Certification

MIL-STD 810F/ASTM 8117, UL 94 V-0, UL 746C

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Storage temperature (T-T)

-40 - 80 °C

Weight & dimensions

Height

120 mm

Diameter

25 cm

Packaging data

Package width

351 mm

Package depth

295 mm

Package height

146 mm

Description

Manufacturer

Peplink

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

N/A

Weight

N/A

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

IR530SB-OFD-BRZ/K9 Antennas

€3,249.24

3DBI INDOOR 600MHZ CELLULAR ANTENNA Antennas

3DBI INDOOR 600MHZ CELLULAR ANTENNA

€17.10

Ubiquiti Antennen network antenna Directional antenna 30 dBi Antennas

Innovative Industrial DesignWeighing in at only 7.4 kg, the RocketDish LW is engineered with ruggedized yet lightweight components to withstand harsh outdoor conditions.Plug and Play IntegrationThe RocketDish LW has a built-in Rocket™ mount, so no tools are needed to install the Rocket BaseStation.Optional Isolator RadomeThe IsoBeam™ enhances isolation performance for co-location and features an integrated protective radome.Optional Alignment AccessoryThe Precision Alignment Kit enables extremely accurate aiming for optimal link performance.

€95.45

Ubiquiti AF-5G23-S45 network antenna 23 dBi Antennas

The airFiber X antennas are purpose-built with 45° slant polarity for seamless integration with the AF-5X.

€93.48

IR530 915MHZ WPAN IP67 RANGE EXT. BBU SINGLE ANTENNA AUS NZ Antennas

IR530 915MHZ WPAN IP67 RANGE EXT. BBU SINGLE ANTENNA AUS NZ

€3,249.24

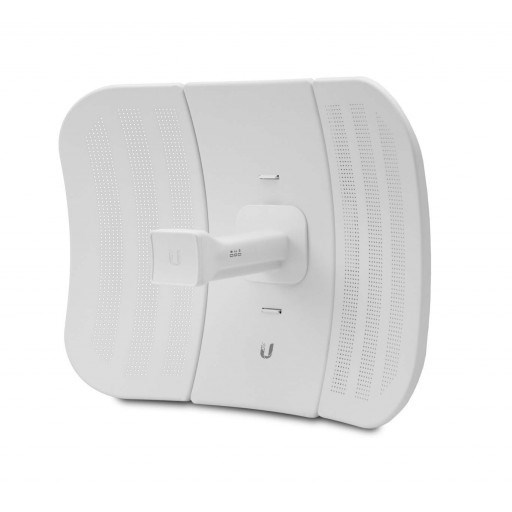

Ubiquiti LBE-5AC-LR network antenna Directional antenna 26 dBi Antennas
