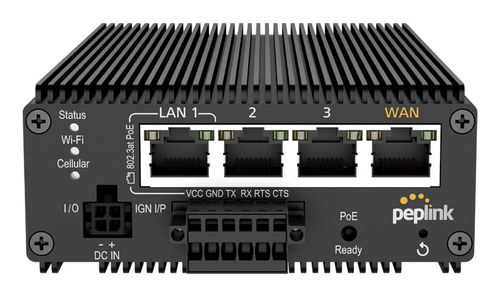

MAX-TST-PROE-5GN-T-PRM - Routers by Peplink

Rugged, Mobile 5G Router with Edge Compute EngineBuilt for Adverse Remote and Mobile ApplicationsFlexible powering options12-56V DC via power port or terminal block (included 100-240V AC adapter)Built-in Edge ComputingRun containerized software without additional hardware

18 IN STOCK

RRP Price €1,182.09

Specifications

WAN connection

Ethernet WAN
Yes
SIM card slot
Yes
3G/4G USB modem compatibility
Yes
WAN connection type
RJ-45

Wireless LAN features

Wi-Fi band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)
1000 Mbit/s
Wi-Fi standards
Wi-Fi 6 (802.11ax)

Network

Ethernet LAN
Yes
Ethernet LAN interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3at
GPS compatibility
Yes

Mobile network

Mobile network generation
5G
Dual SIM support
Yes
5G standard
Sub6 NSA
SIM card type
NanoSIM + eSIM

Ports & interfaces

Ethernet LAN (RJ-45) ports
3
USB port
No
DC-in jack
Yes

Management features

Web-based management
Yes
MIMO
Yes

Security

Security algorithms
256-bit AES

Design

Product colour
Black
LED indicators
Status, WLAN
Product type
Tabletop router

Certificates

Compliance certificates
CE, RCM, RoHS, UKCA

Packaging content

AC adapter included
Yes
Antenna included
Yes
Mounting kit
Yes
Packaging content
1x Transit Pro E 4x 5G/LTE Antennas (ACW-235) 2x Dual Band Wi-Fi Antennas (ACW-815) 1x GPS Active Antenna (ACW-232) 1x 12V 2A 4 Pin Power Supply (ACW-632) 1x 6 Pin Terminal Block Connector (ACW-131) 1 Pair of Mounting Brackets (ACW-724)

Antenna

Antenna design
External
Antenna connector type
SMA/RP-SMA
Antennas quantity
7
Detachable antenna(s)
Yes

Features

Number of simultaneously connected devices (max)
150

Power

Power source type
AC, PoE
AC input voltage
100 - 240 V
Output voltage
12 V
Power consumption (typical)
12 W
Power over Ethernet (PoE)
Yes

Operational conditions

Operating temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
15 - 95%

Weight & dimensions

Width
101 mm
Depth
160 mm
Height
43.5 mm
Weight
900 g

Other features

Operating temperature (T-T)
-40 - 158 °F
Upstream data rate
3400 Mbit/s
Downstream data rate
900 Mbit/s

Accessories
