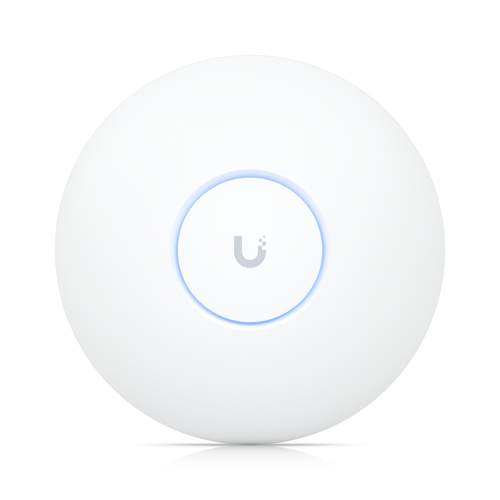

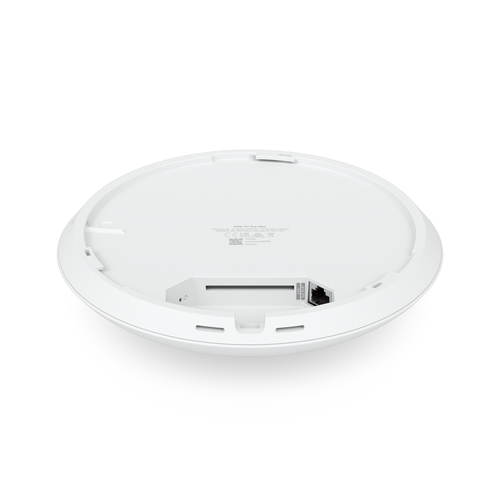

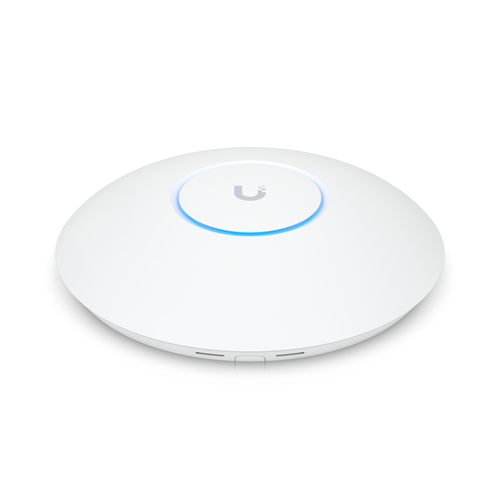

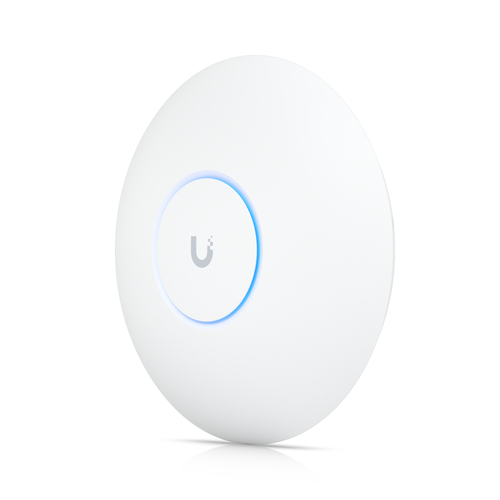

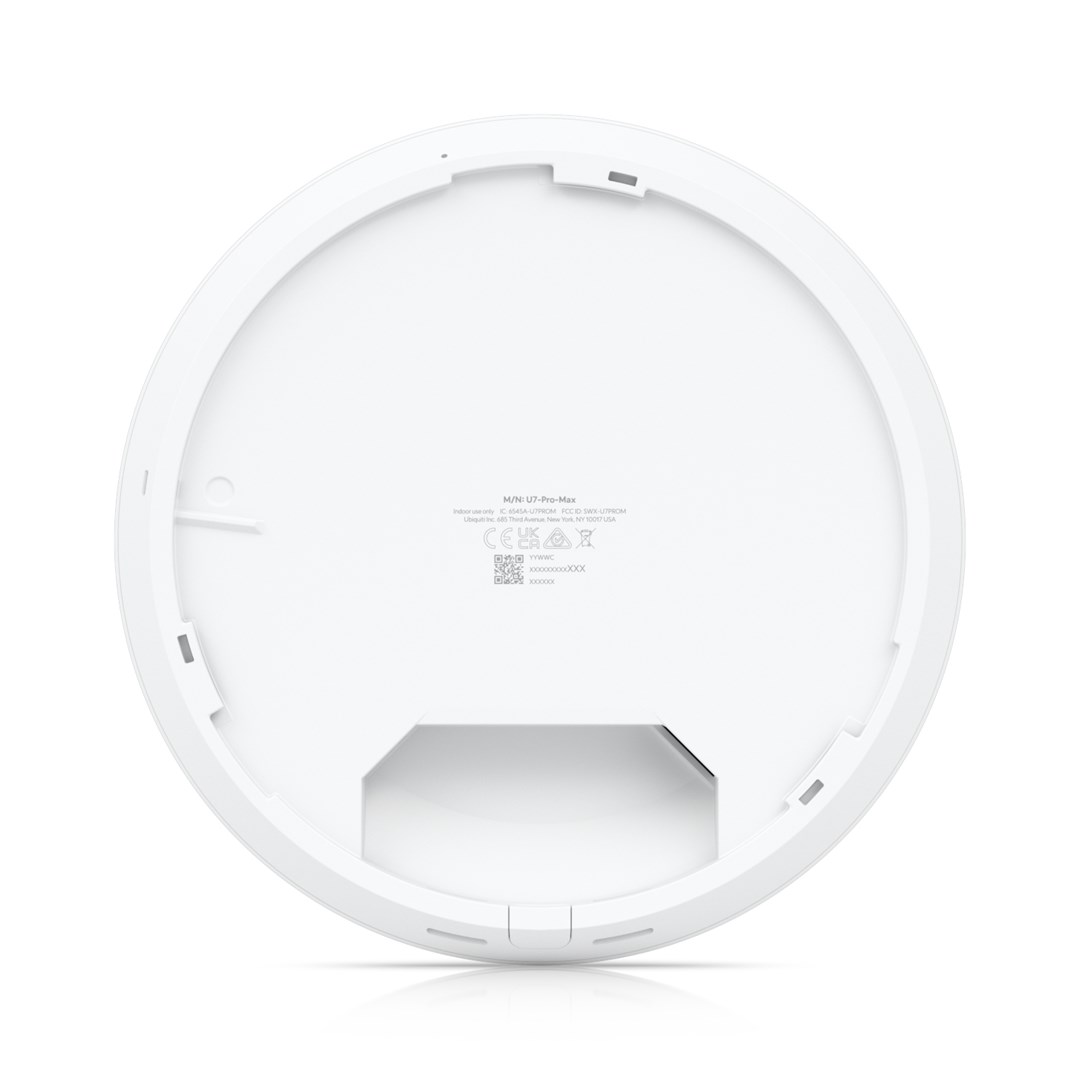

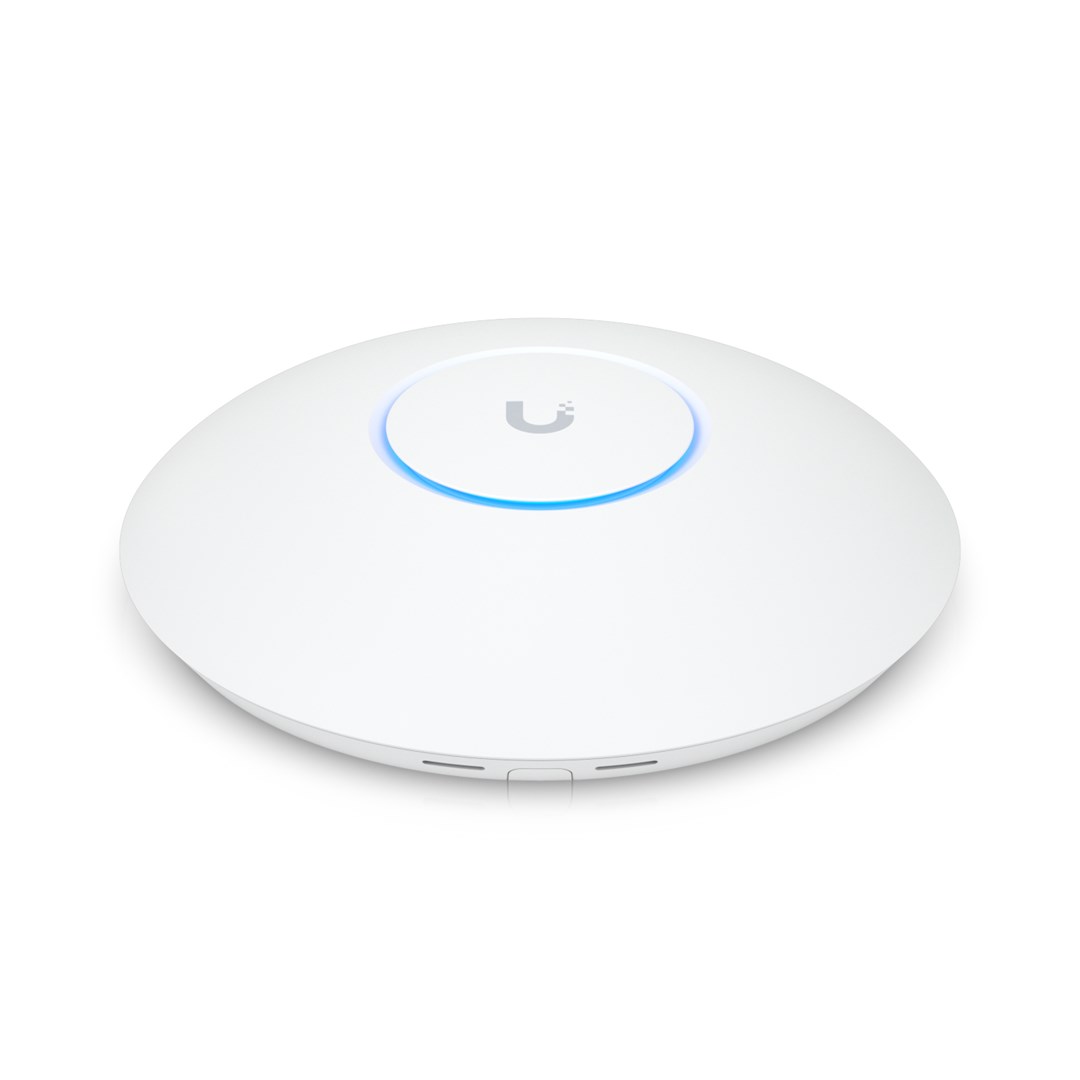

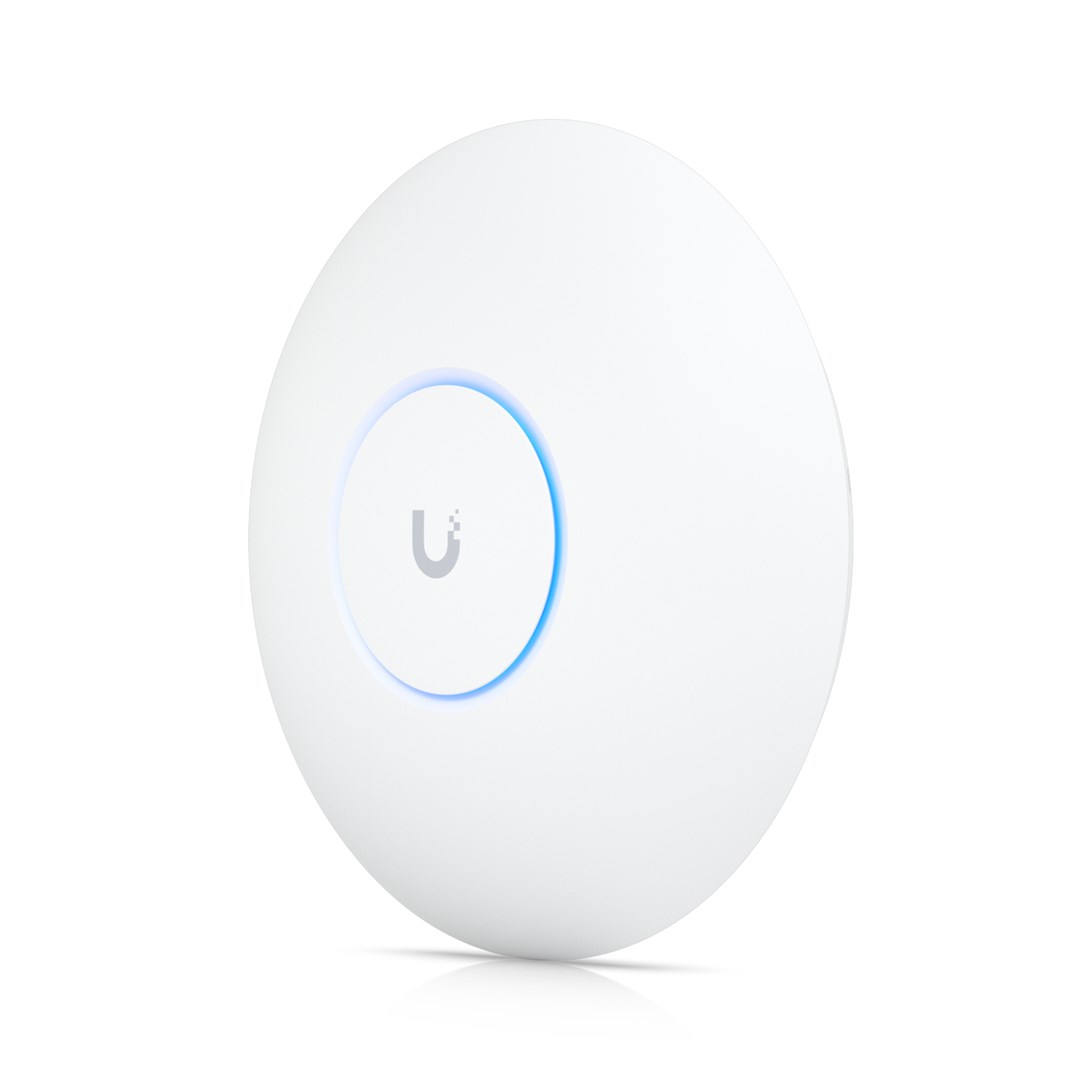

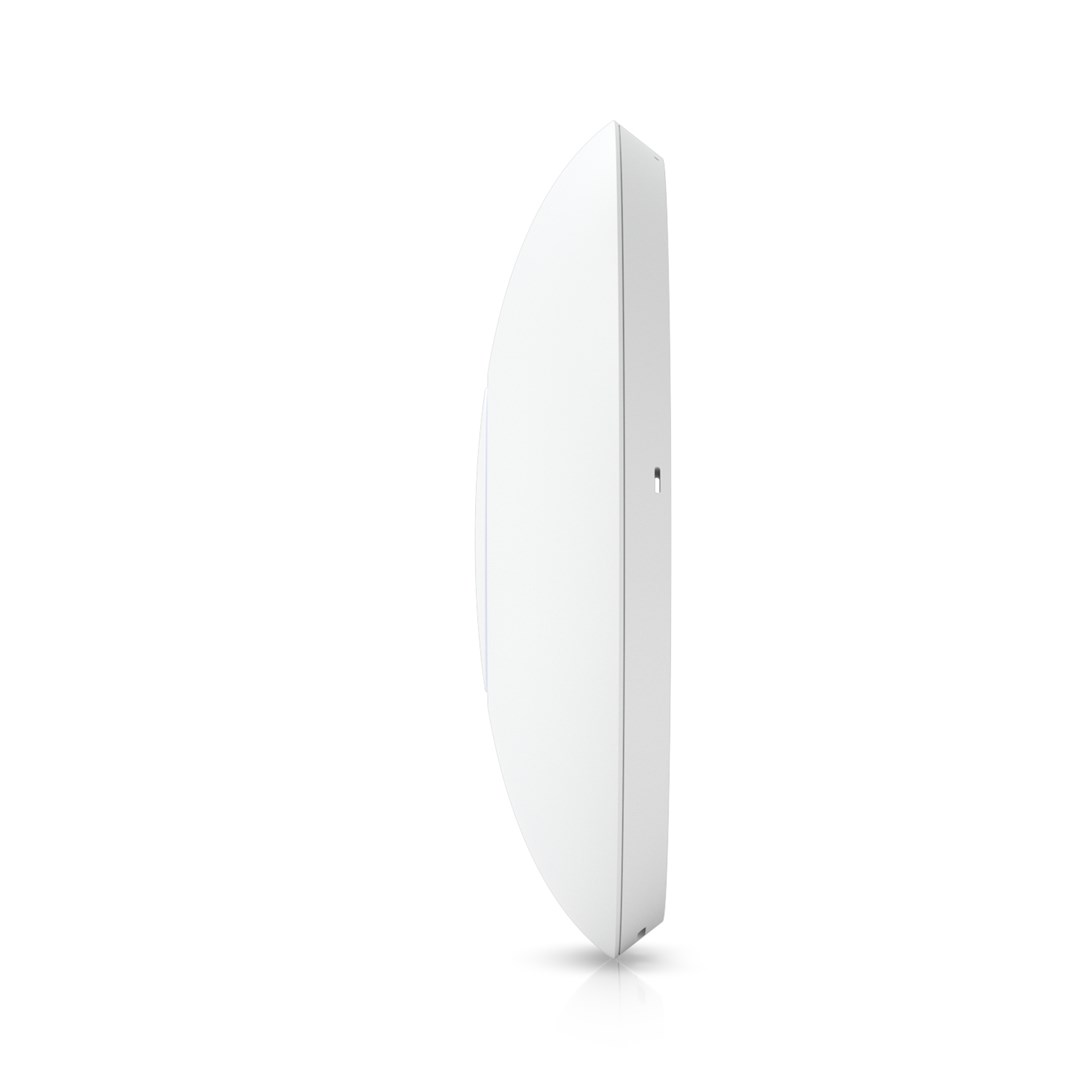

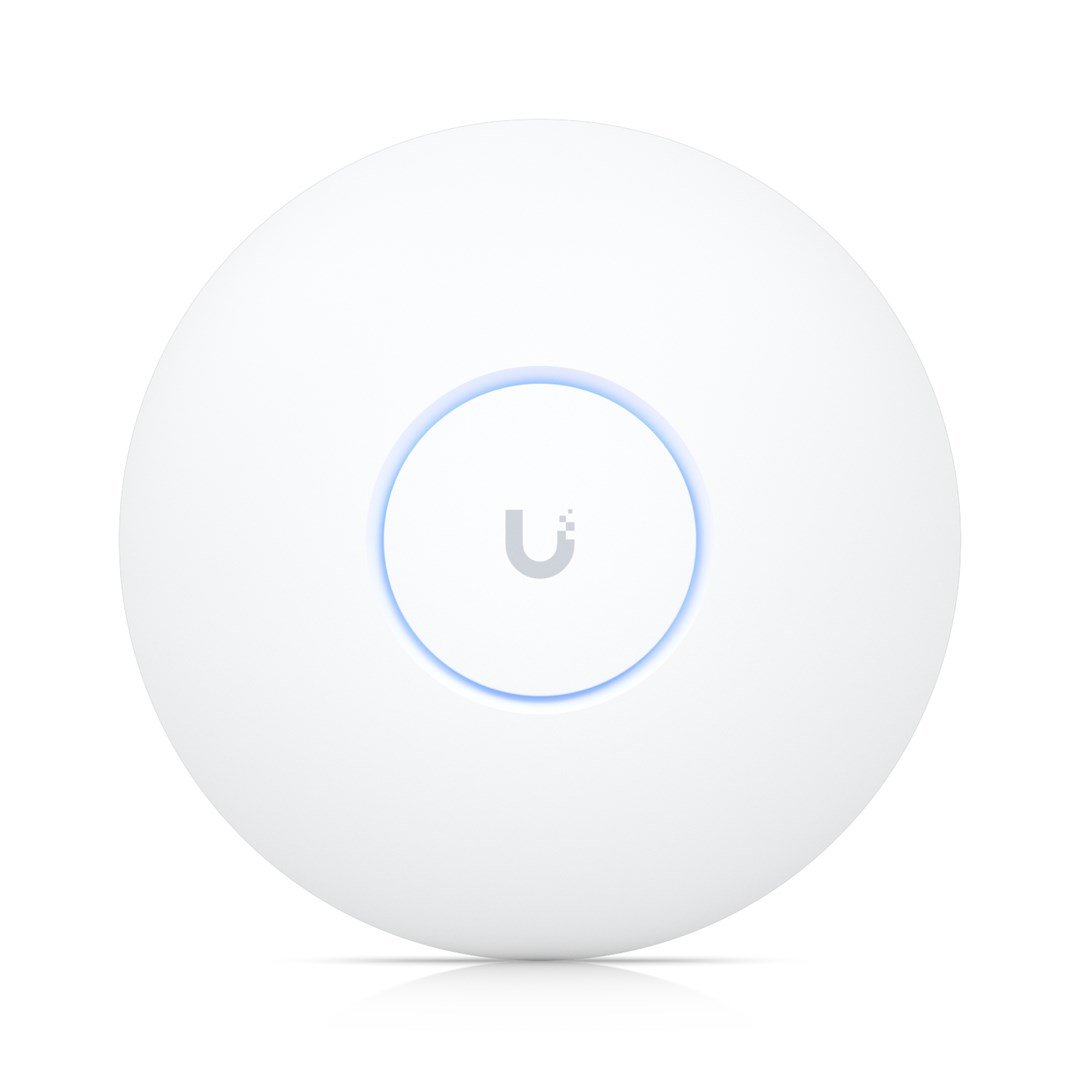

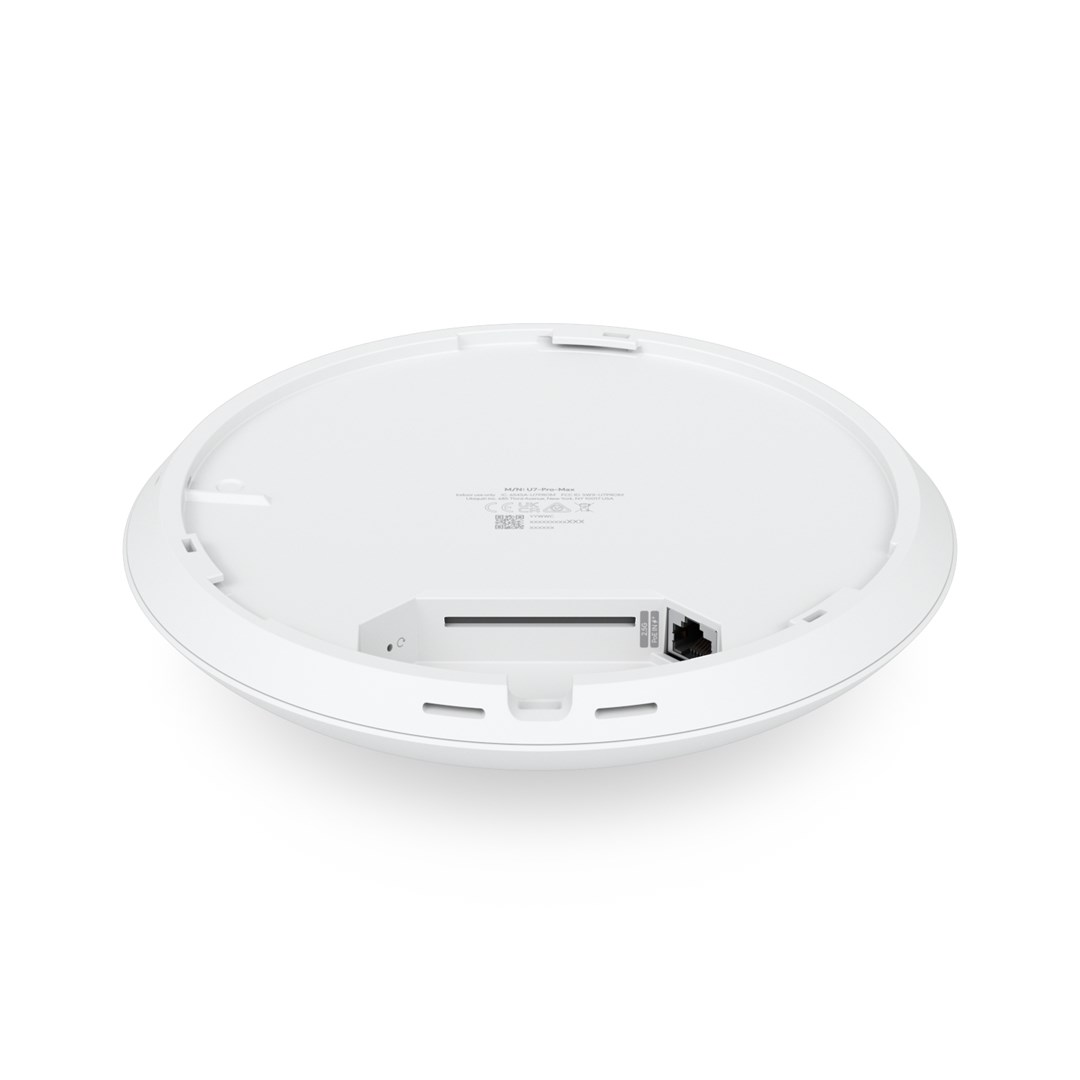

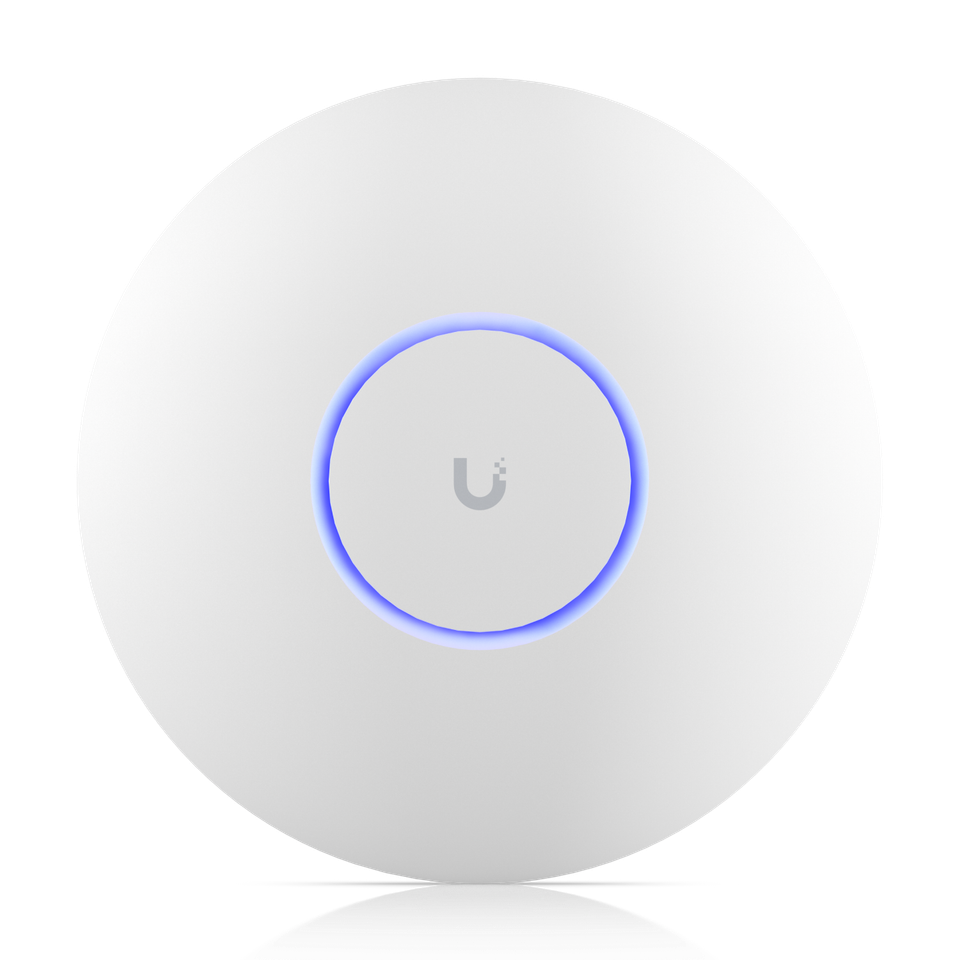

Ubiquiti U7 Pro Max 5700 Mbit/s White Power over Ethernet (PoE)

Ceiling-mounted WiFi 7 AP with 8 spatial streams, 6 GHz support, and a dedicated spectral scanning engine for interference-free WiFi in demanding, large-scale environments.

5 IN STOCK

RRP Price €305.59

  loading...
Register for Discounts

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
6 GHz
Yes
Maximum data transfer rate
5700 Mbit/s
Ethernet LAN data rates
2500 Mbit/s
Throughput data rate
5765 Mbit/s
Frequency band
2.4 - 5.7 GHz
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
MIMO
Yes
MIMO type
Multi User MIMO
Spatial streams
8
VLAN support
Yes
Rate limiting
Yes
Quality of Service (QoS) support
Yes

Security

Security algorithms
PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Power

Power over Ethernet (PoE)
Yes
DC voltage range
44 - 57 V
Power consumption (max)
22 W

Design

Placement
Ceiling, Wall
Product colour
White
Housing material
Aluminium, Polycarbonate (PC)
Reset button
Yes
LED indicators
Yes
Recommended usage
Indoor

Antenna

Antenna type
Internal
Antenna gain level (max)
5.9 dBi

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), Industry Canada (IC)

Weight & dimensions

Width
206 mm
Depth
206 mm
Height
46 mm
Weight
680 g

Packaging content

Quantity per pack
1 pc(s)

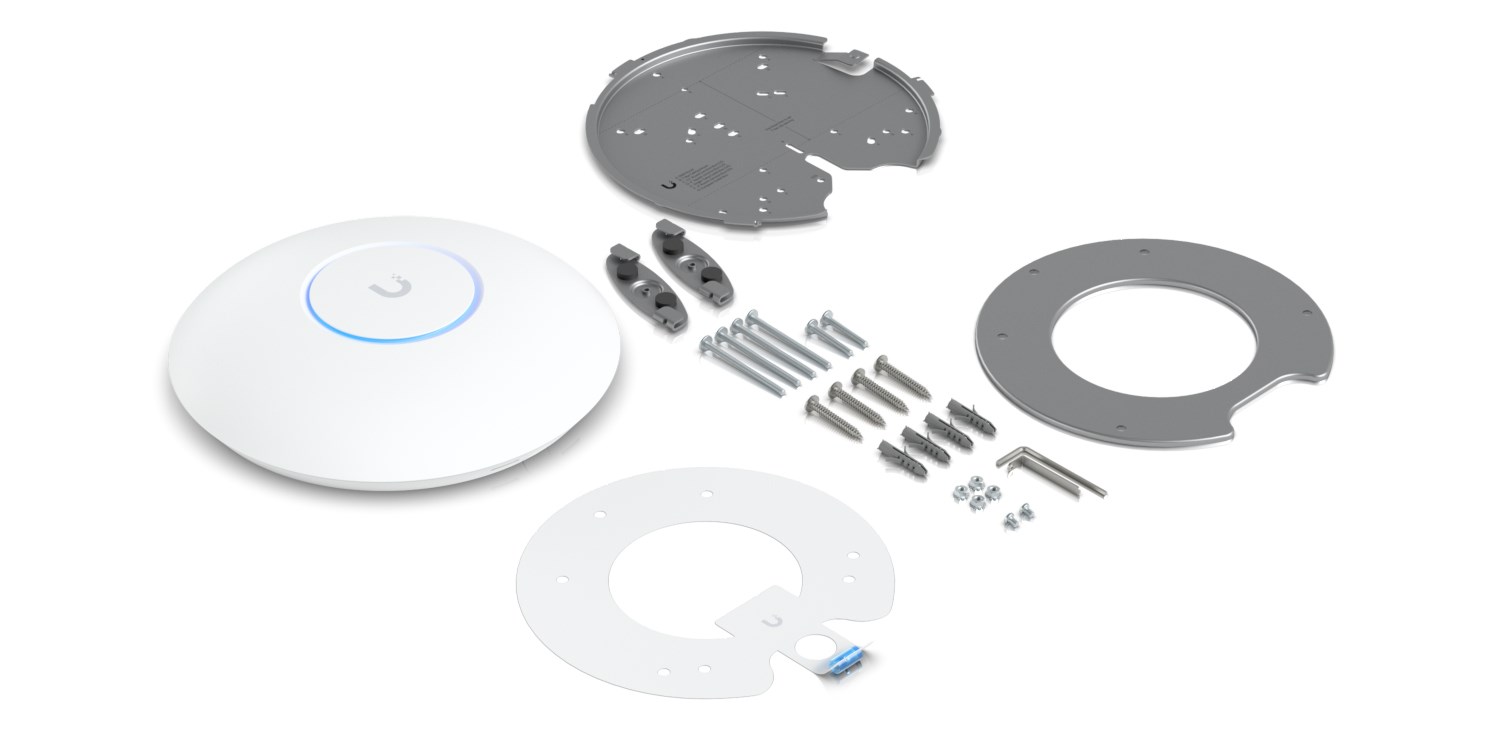

Mounting kit
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-30 - 60 °C

Sustainability

Sustainability compliance
Yes
