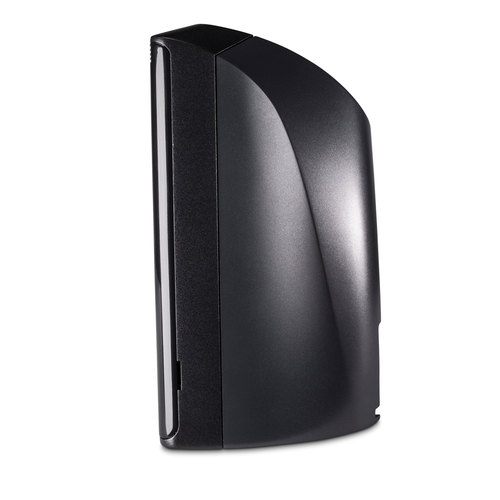

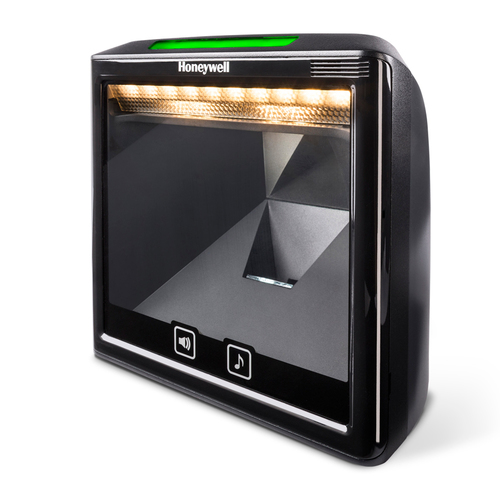

Honeywell 7980G-2USBC-0 barcode reader Fixed bar code reader 1D/2D Black

ON ORDER

SKU: 7980G-2USBC-0

Manufacturer: Honeywell Honeywell

RRP Price €556.36

Specifications

Scanning

Type
Fixed bar code reader
Scanner type
1D/2D
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, JAN, MSI, Planet, POSTNET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported
Aztec Code, Code 49, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code
Light levels (direct sunlight)
0 - 100000 lx
Pitch reading angle
-65 - 65°
Yaw reading angle
-75 - 75°
Maximum scan area
0 x 190 mm
Motion tolerance (cm/s)
300

Ports & interfaces

Connectivity technology
Wired
Standard interfaces
Keyboard wedge, USB
USB version
2.0
PC connection
RJ-45

Performance

International Protection (IP) code
IPX5
LED indicators
Yes
Product colour
Black
Programming function
Yes

Power

Power source type
AC, DC
Input voltage
100 - 240 V
Input frequency
50/60 Hz
Power consumption
400 mA

Weight & dimensions

Width
152 mm
Depth
85 mm
Height
148 mm
Weight
539 g

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
5 - 95%

Logistics data

Harmonized System (HS) code
84716070

Accessories

License
