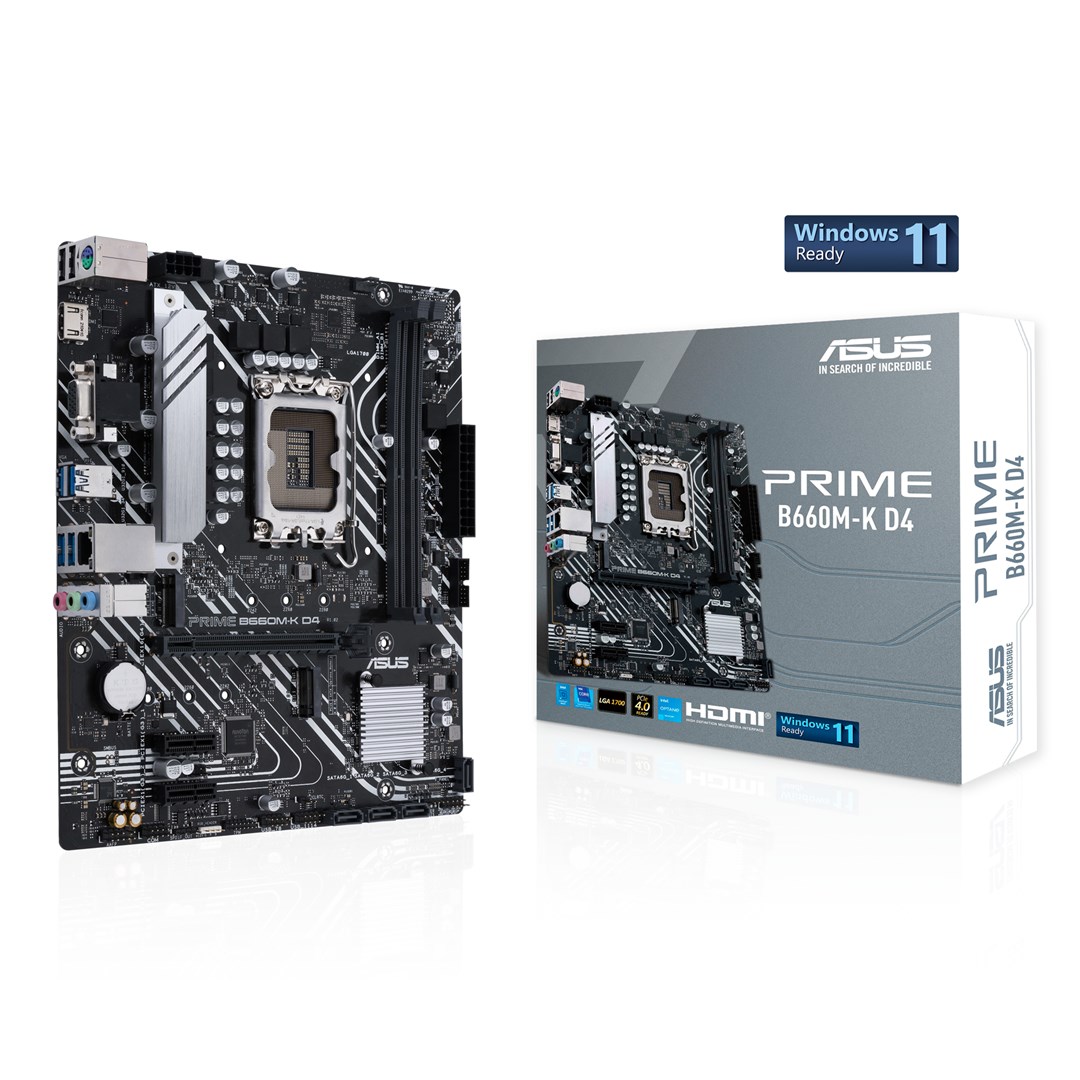

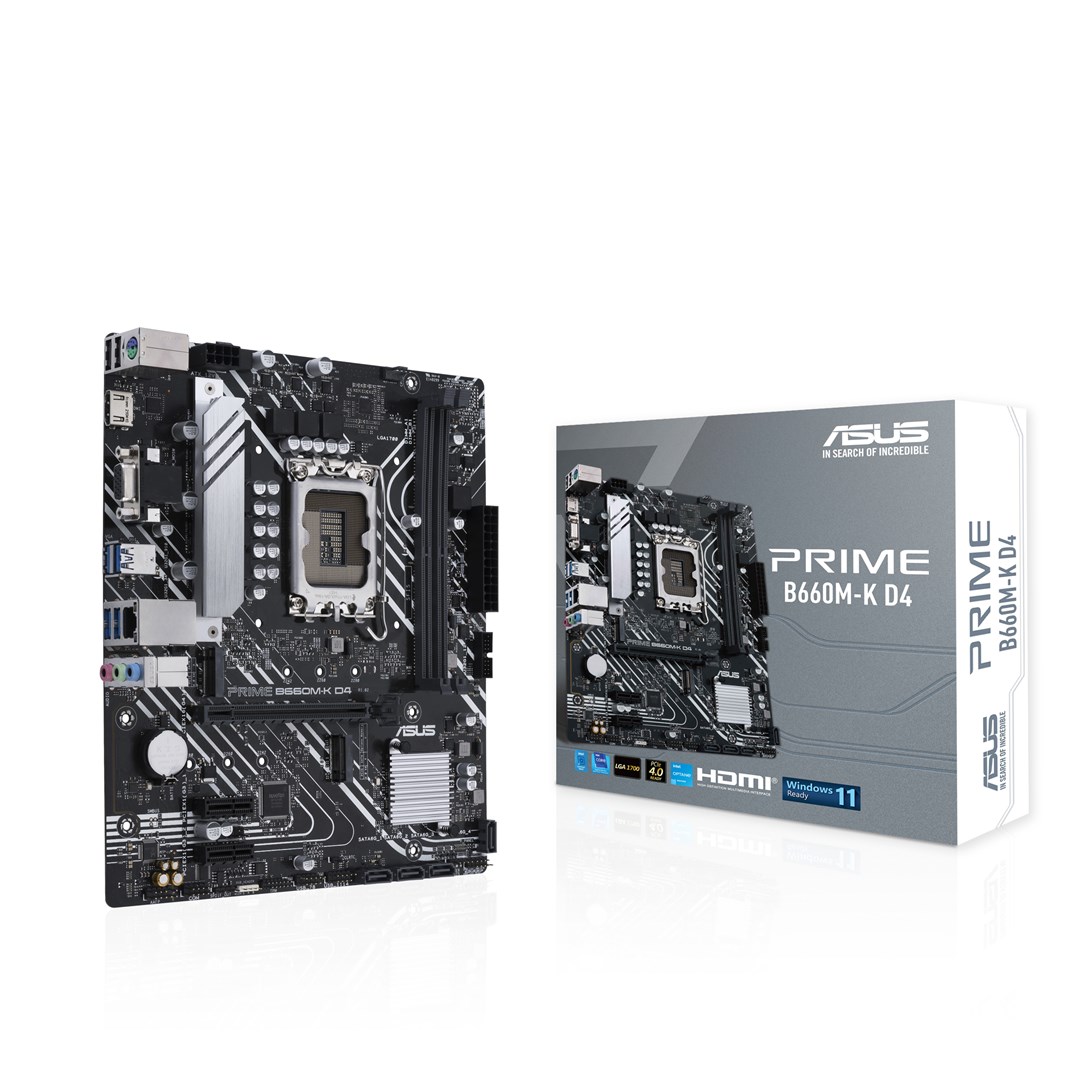

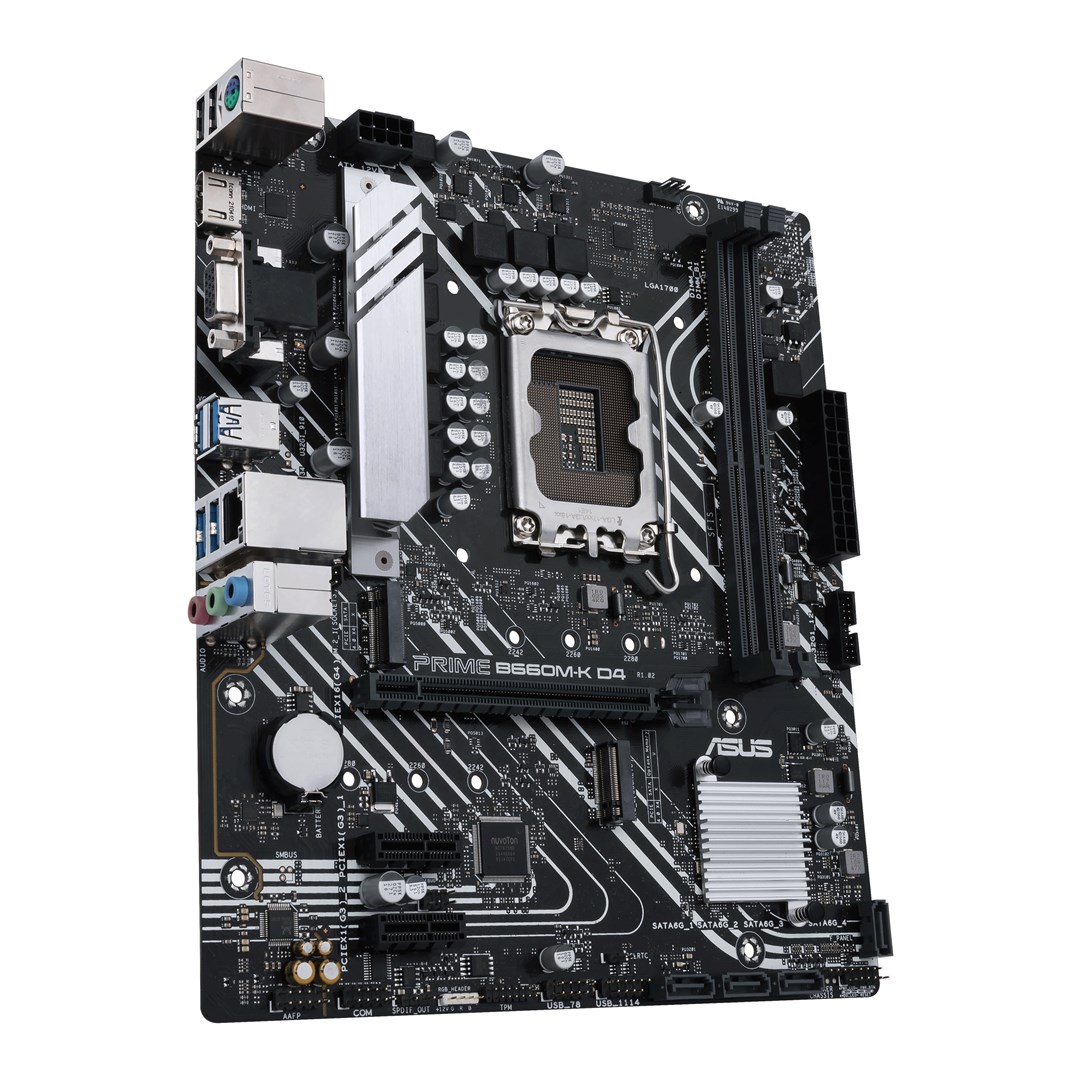

ASUS PRIME B660M-K D4 Intel B660 LGA 1700 micro ATX

10 IN STOCK

SKU: 90MB1950-M1EAY0

Manufacturer: ASUS ASUS

RRP Price €118.00

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 1700
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Maximum number of SMP processors
1

Memory

Supported memory types
DDR4-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz
Supported memory clock speed (max)
5333 MHz
Maximum internal memory
128 GB

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10

Internal I/O

USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
Number of SATA III connectors
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
Power fan connector
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
TPM connector
Yes
RGB LED pin header
Yes

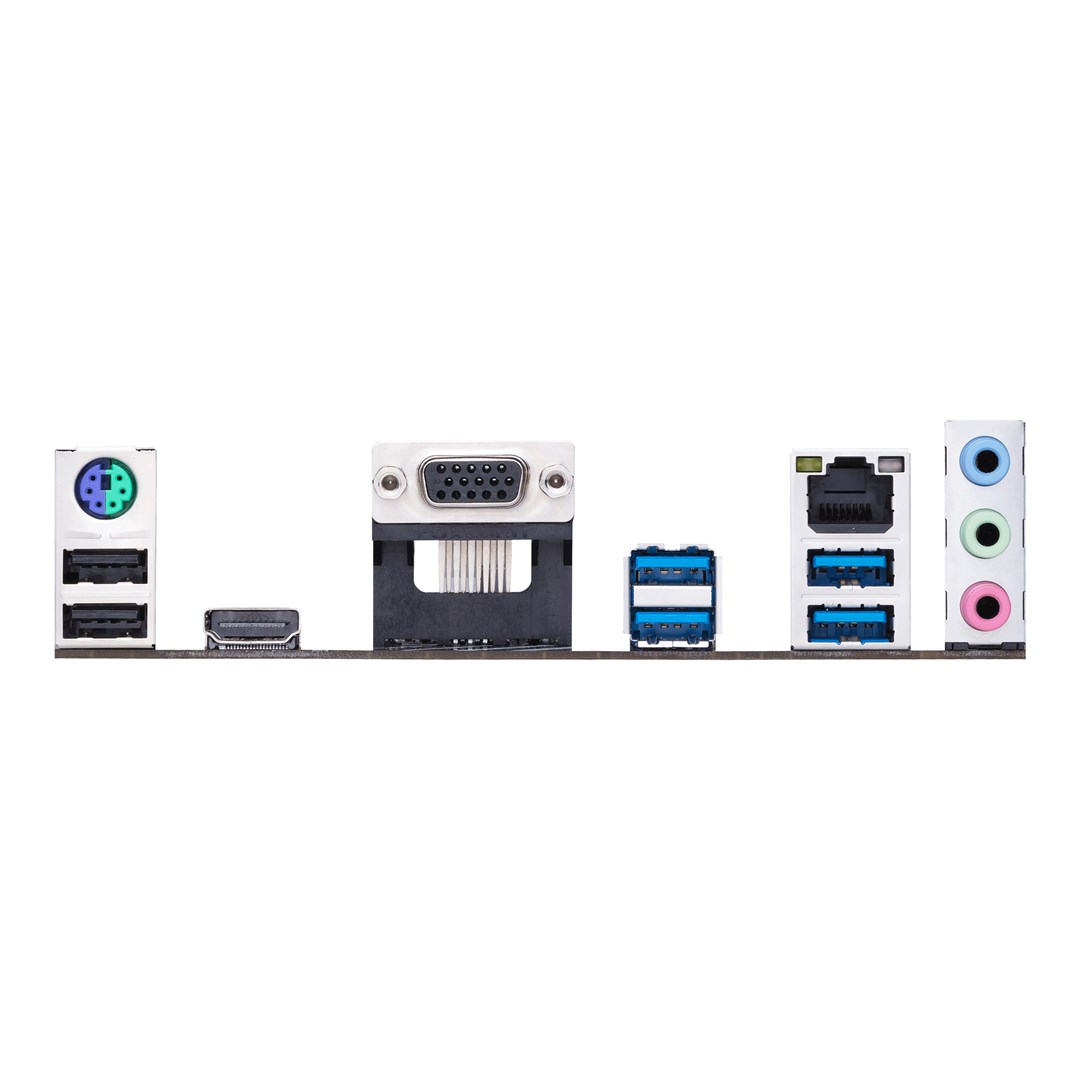

Rear panel I/O ports

USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
1
HDMI ports quantity
1
DisplayPorts quantity
1

Network

Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi
No

Features

Motherboard chipset
Intel B660
Audio chip
Realtek ALC897
Audio output channels
7.1 channels
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Cooling type
Passive
Windows operating systems supported
Windows 10, Windows 11

Expansion slots

PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2

BIOS

BIOS type
UEFI AMI
BIOS memory size
128 Mbit

Weight & dimensions

Width
244 mm
Depth
244 mm

Packaging content

Cables included
SATA

Accessories

License
