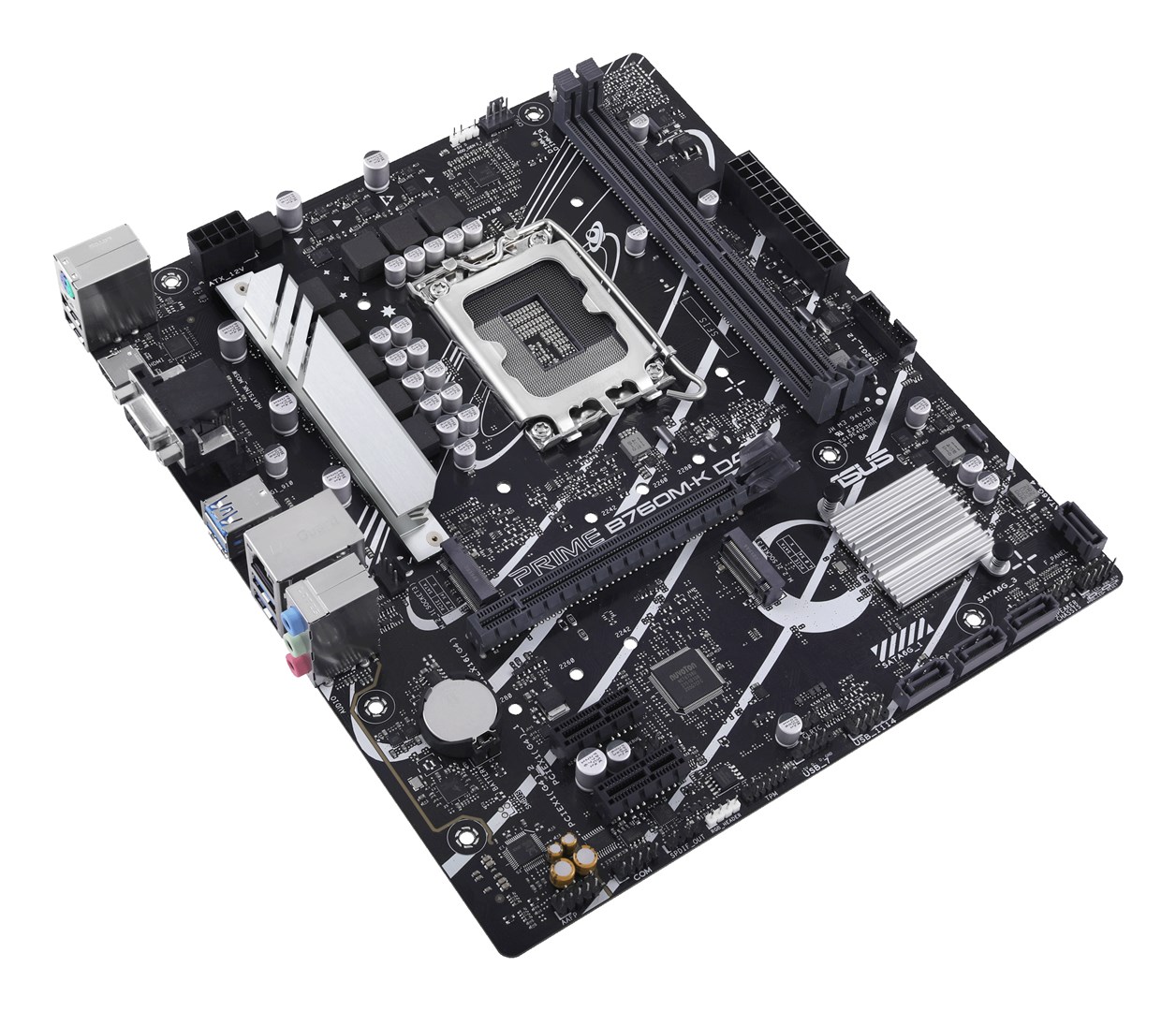

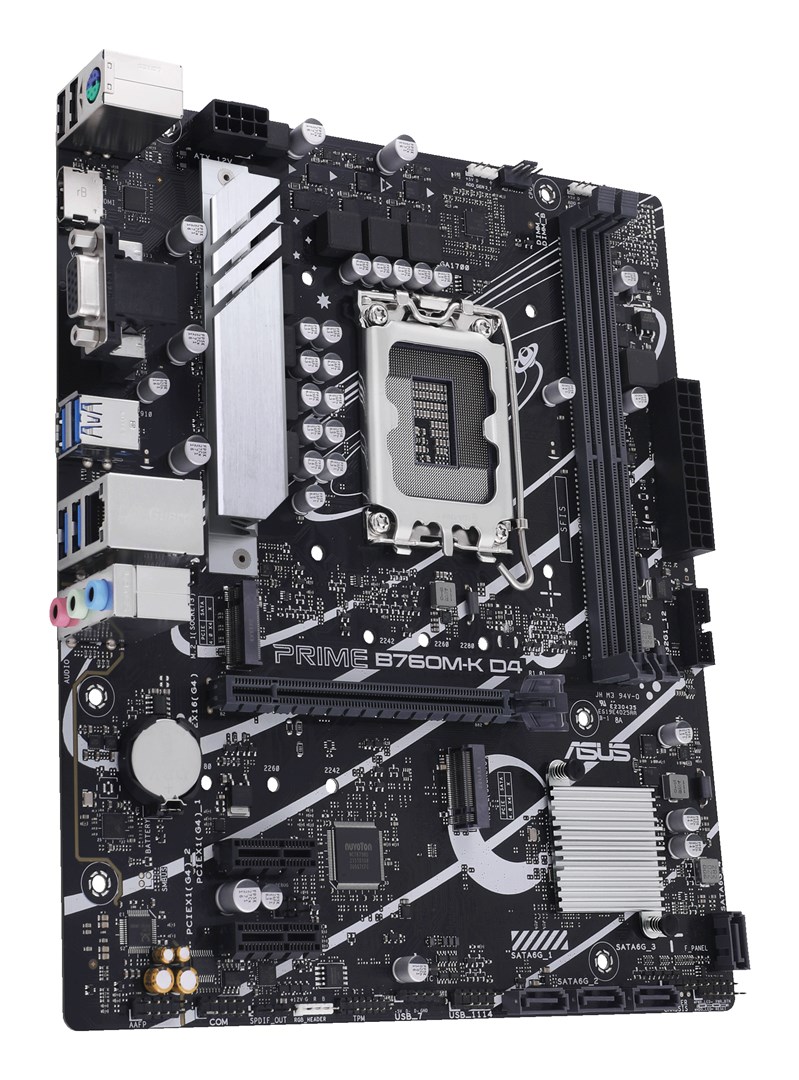

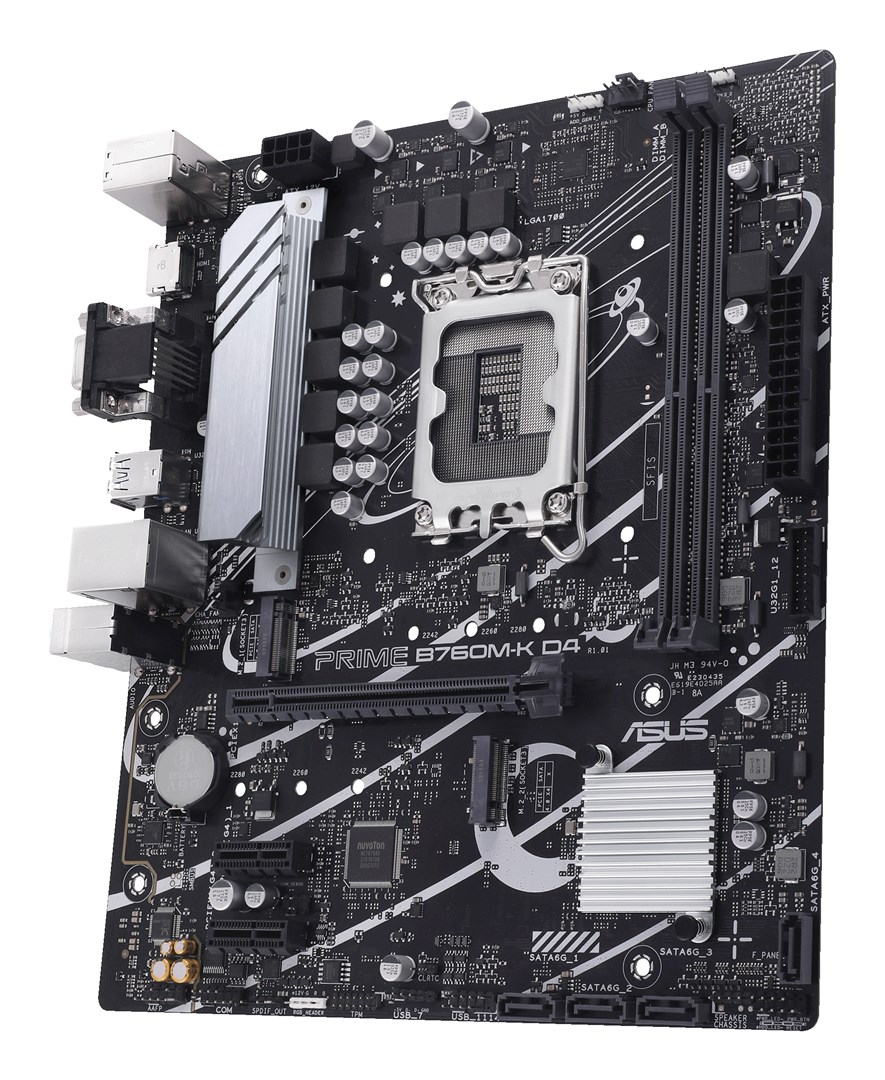

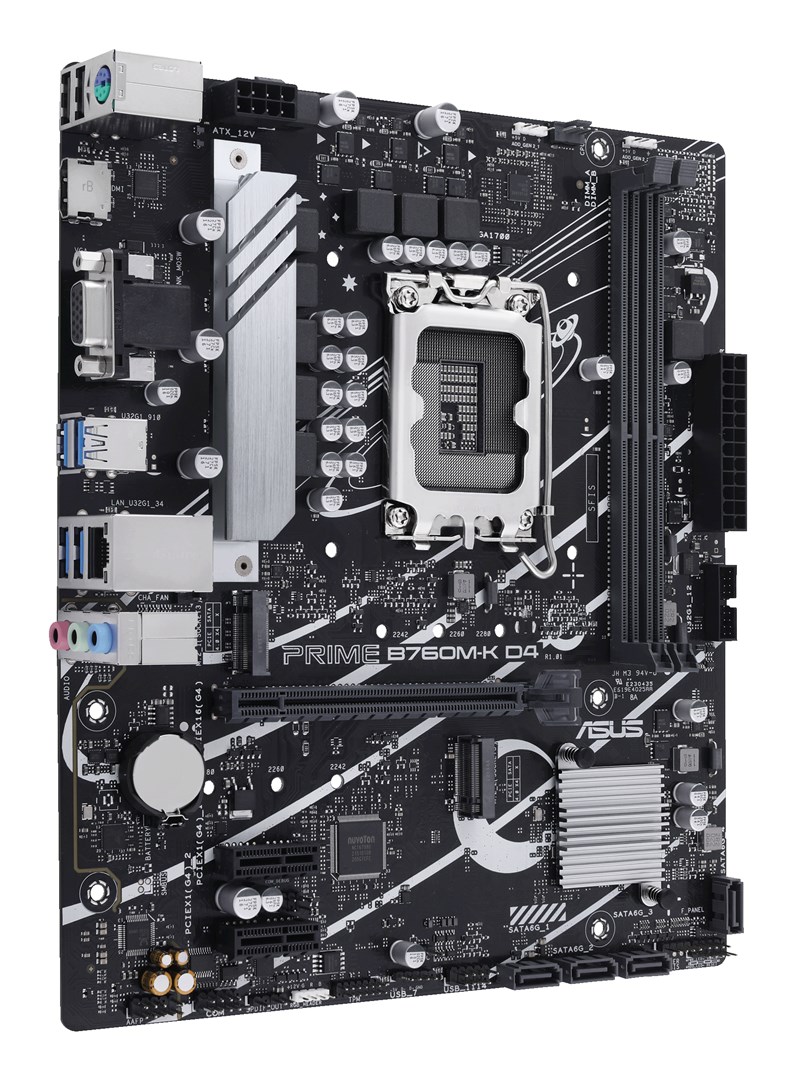

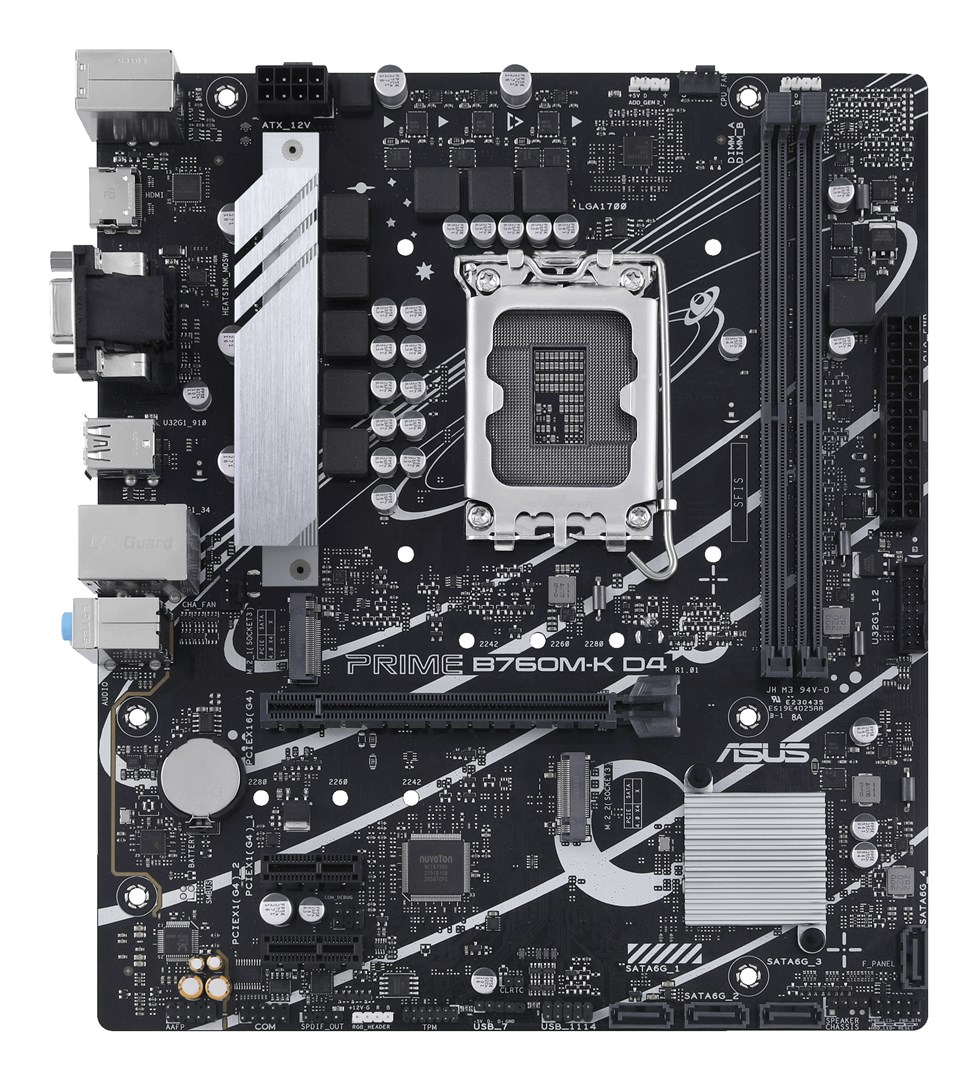

ASUS PRIME B760M-K D4 Intel B760 LGA 1700 micro ATX

200 IN STOCK

SKU: 90MB1DS0-M1EAY0

Manufacturer: ASUS ASUS

RRP Price €94.53

Specifications

Processor

Processor manufacturer
Intel
Processor socket
LGA 1700
Compatible processor series
Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700

Memory

Supported memory types
DDR4-SDRAM
Number of memory slots
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz
Supported memory clock speed (max)
5333 MHz
Maximum internal memory
64 GB
Unbuffered memory
Yes

Storage controllers

Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10

Graphics

Parallel processing technology support
Not supported

Internal I/O

USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
1
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes
RGB LED pin header
Yes

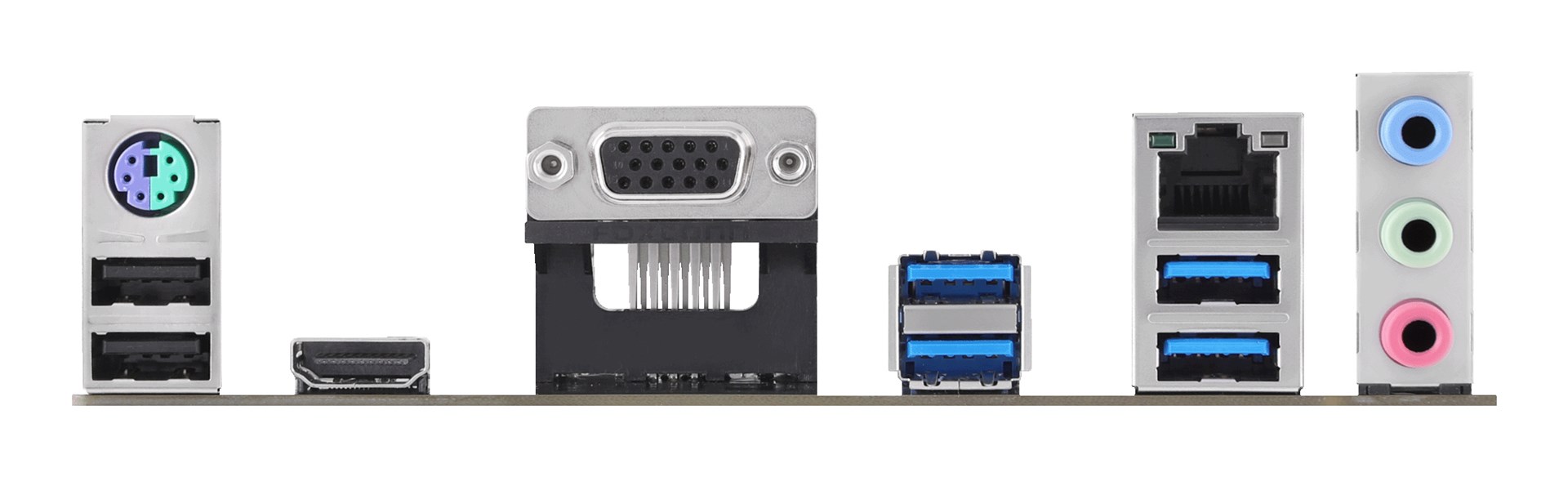

Rear panel I/O ports

USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
1
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
Microphone in
Yes
USB connector type
USB Type-A

Network

Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wake-on-LAN ready
Yes
Wi-Fi
No

Features

Motherboard chipset
Intel B760
Audio output channels
7.1 channels
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 10 x64, Windows 11

Expansion slots

PCI Express x1 (Gen 4.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2

BIOS

BIOS type
UEFI AMI
BIOS memory size
128 Mbit

Packaging data

Package width
270 mm
Package depth
51.5 mm
Package height
263 mm
Package weight
926.3 g

Weight & dimensions

Width
244 mm
Depth
211 mm
Height
36 mm

Packaging content

Cables included
SATA

Other features

Weight
528 g

Accessories

License
