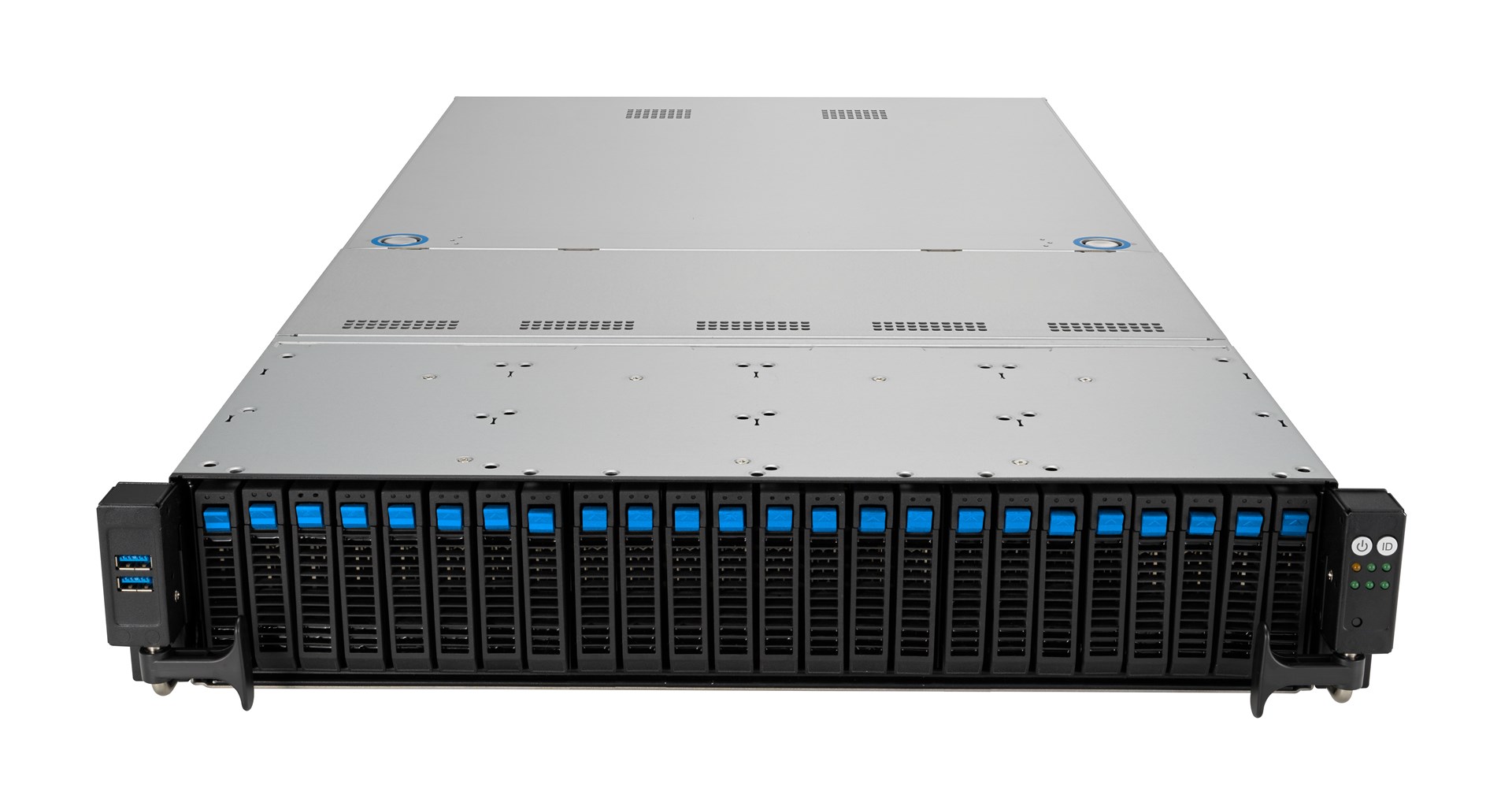

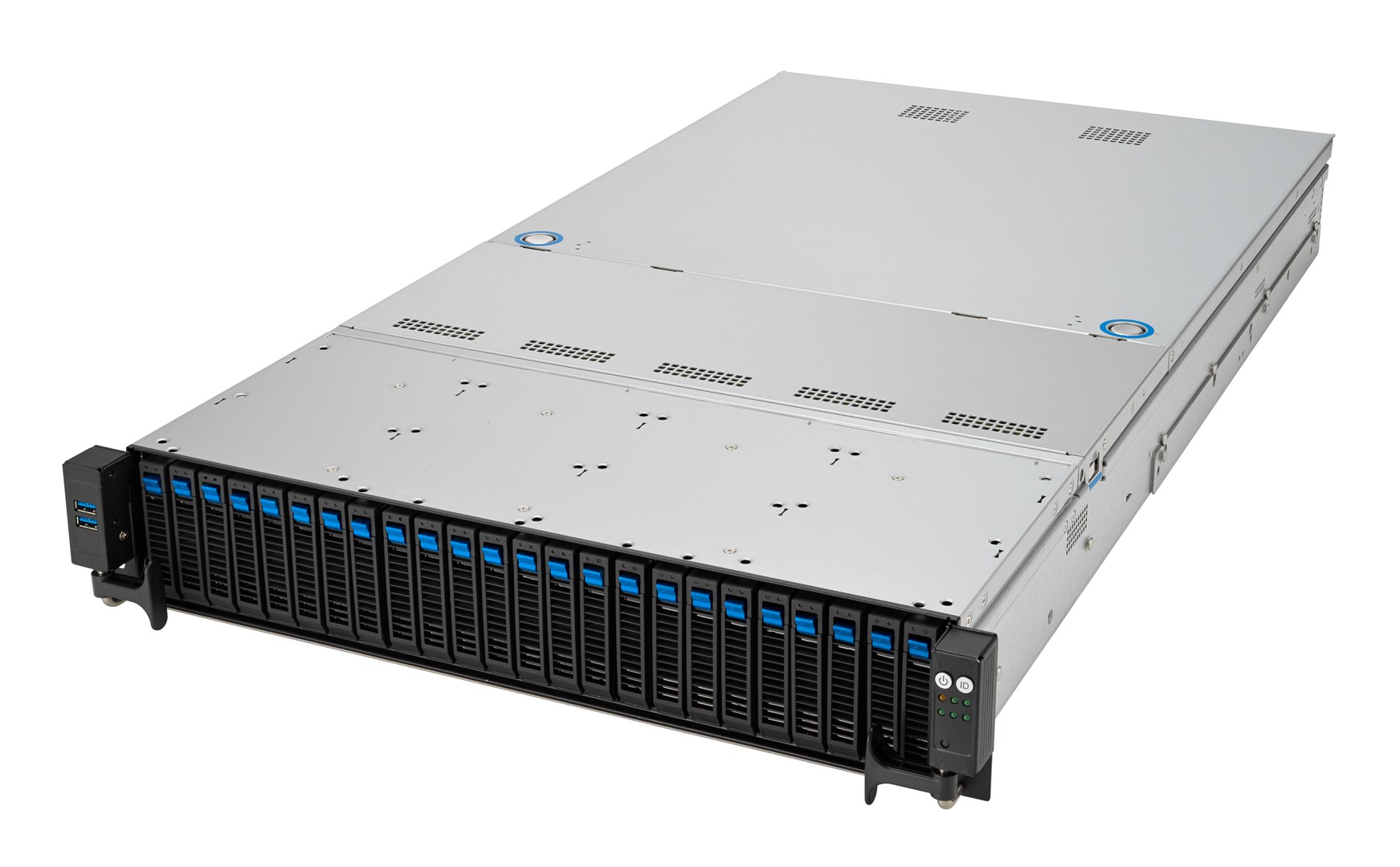

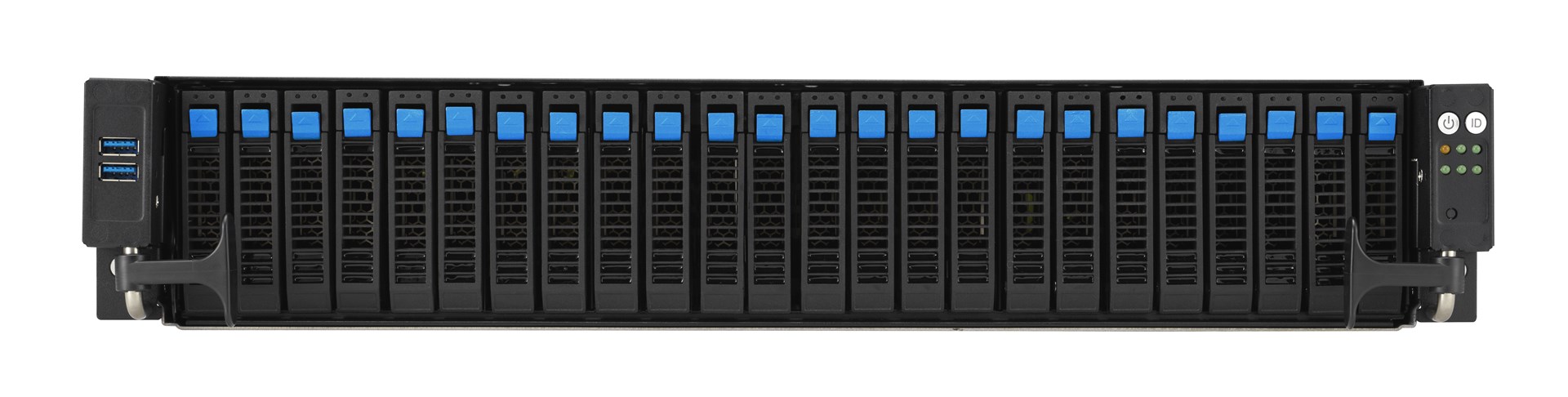

Platforma Asus Rack (2U) RS520A-E12-RS24U AMD Epyc 9004 (16x NVMe, 8x SATA/SAS, 2xM.2, 2xGPU, 2x10Gbe, IPMI, 1+1 1600W)

ON ORDER

SKU: 90SF02G1-M00360

Manufacturer: ASUS ASUS

RRP Price €0.00

Specifications

Processor

Processor socket
Socket SP5
Processor manufacturer
AMD
Processor family
AMD EPYC
Number of processors supported
1
Compatible processor series
AMD EPYC 9004

Memory

Number of DIMM slots
24
Supported memory types
DDR5-SDRAM
Supported DIMM module capacities
128GB, 64GB, 32GB, 16GB, 256GB
Maximum internal memory
6 TB
Supported RDIMM clock speeds
4400,4800,4000,3600 MHz

Storage

Number of storage drives supported
28
Hot-swap HDD bays
Yes
Number of 2.5" bays
26
Storage drive sizes supported
2.5,M.2
Supported storage drive types
HDD & SSD
SSD form factor
M.2

Graphics

On-board graphics card model
Aspeed AST2600
On-board graphics card memory
64 MB

Network

Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
LAN controller
Intel® I350-AM2

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ethernet LAN (RJ-45) ports
2
IPMI LAN (RJ-45) port
Yes
VGA (D-Sub) ports quantity
1

Expansion slots

PCI Express slots version
5.0

Technical details

Compliance certificates
CE, CB, RCM, Federal Communications Commission (FCC)

Design

Chassis type
Rack (2U)
Product colour
Grey
LED indicators
Yes
On/off switch
Yes
Reset button
Yes

Power

Power supply
1600 W
Redundant power supply (RPS) support
Yes

Operational conditions

Operating temperature (T-T)
10 - 35 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
20 - 90%

Weight & dimensions

Width
449 mm
Depth
840 mm
Height
88.1 mm
Weight
19.1 kg

Packaging data

Package weight
26.6 kg

Accessories

License
