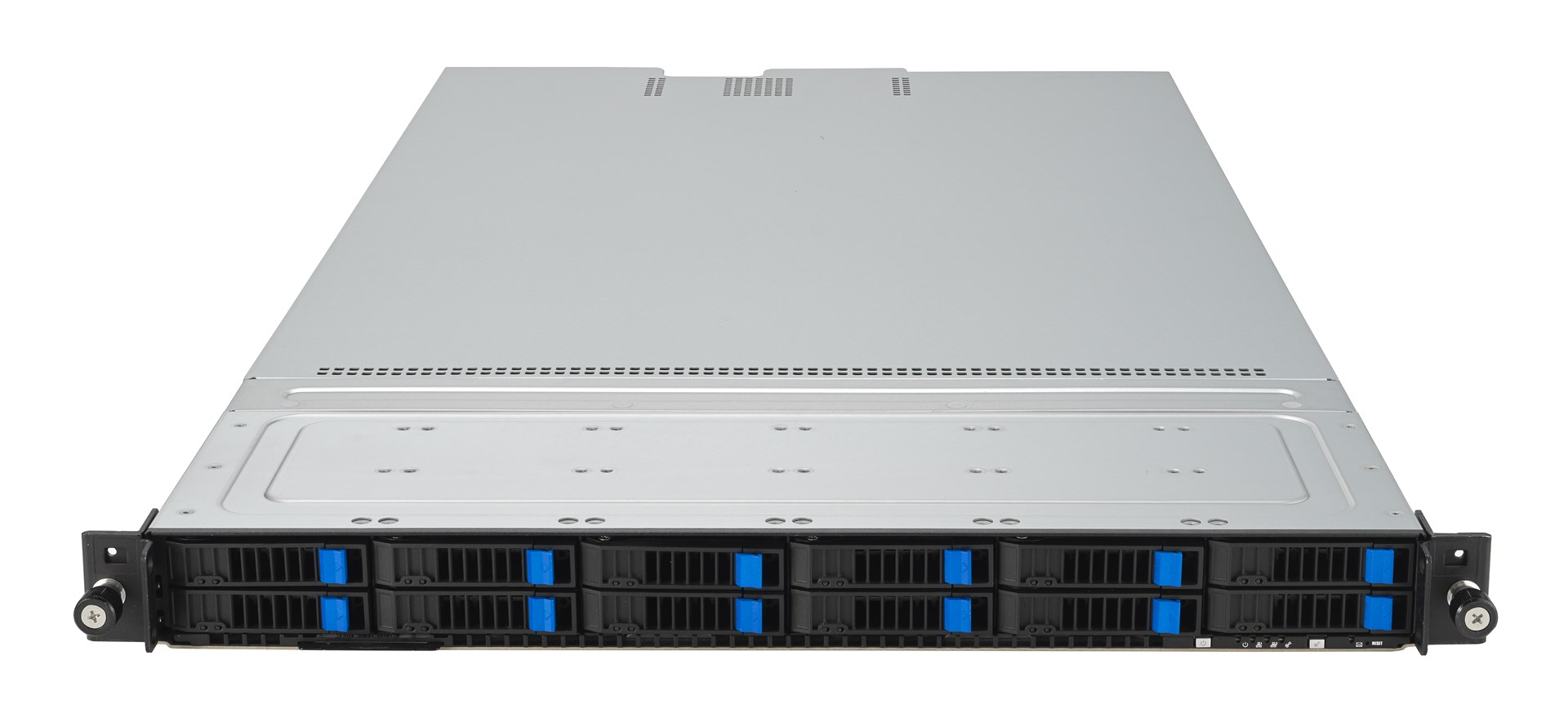

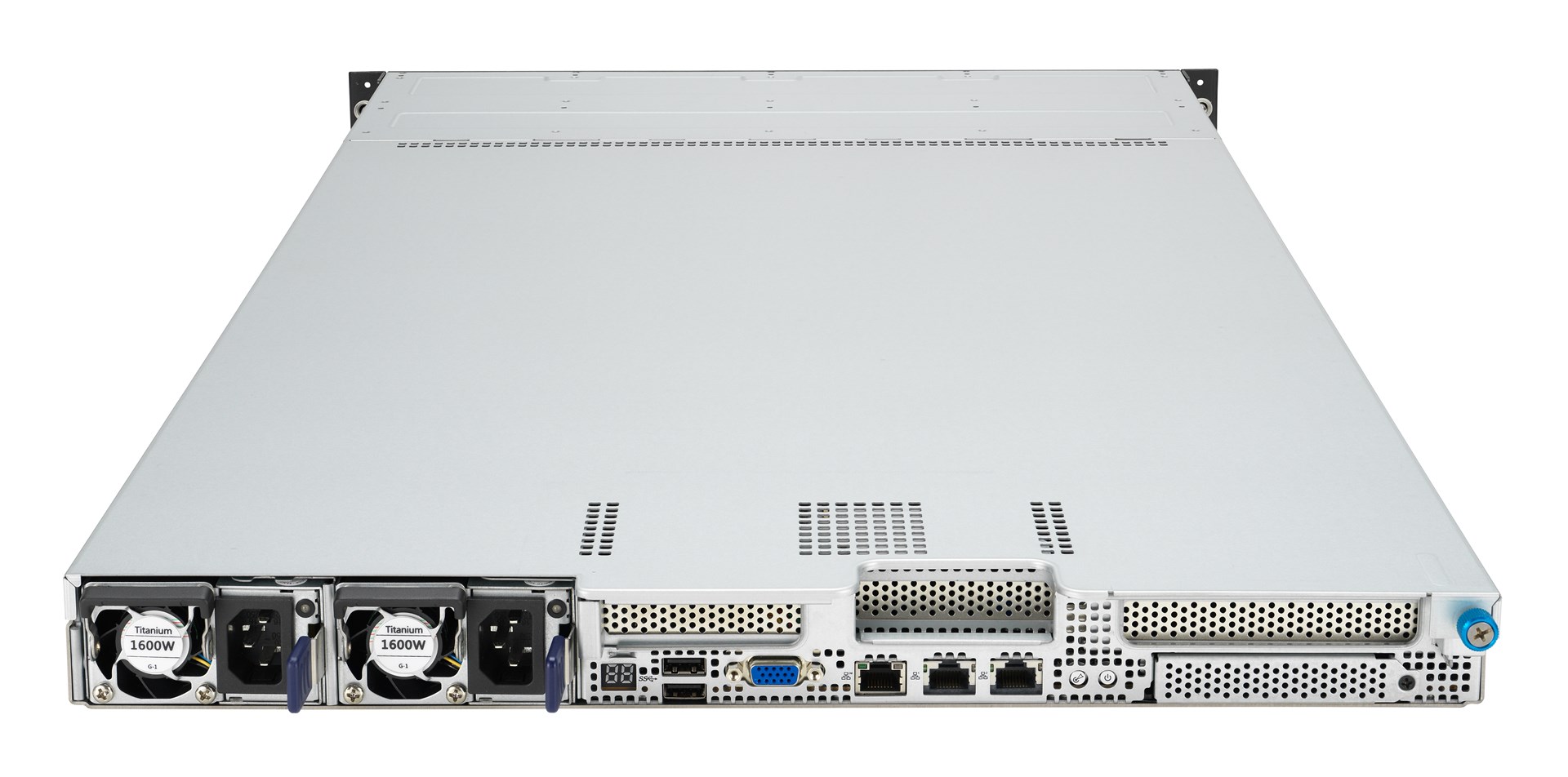

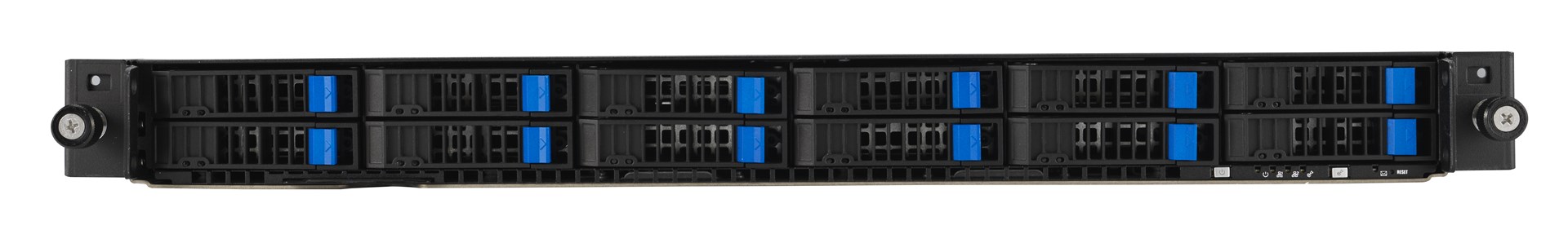

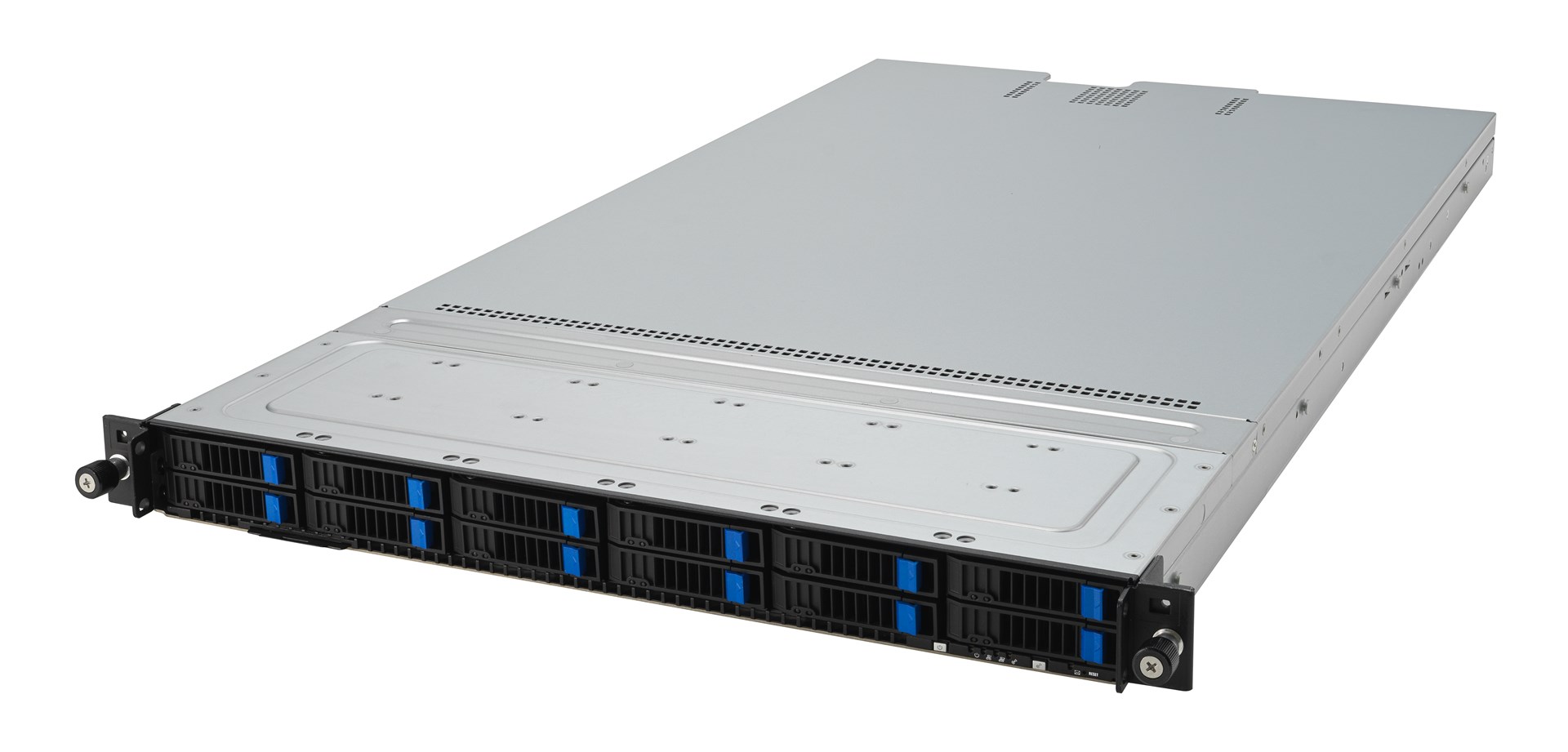

ASUS RS500A-E12-RS12U Socket SP5 Rack (1U) Grey

PCIe 5.0 ReadyFaster storage, graphics and networking capabilitiesPCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.AMD EPYC™ 9004 Series ProcessorsThe 9004 Series EPYC CPUs amplifies the AMD history of x86 architecture innovations and record-breaking performance with next generation 5nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe® Gen 5 I/O. EPYC 9004 CPUs support 12 memory channels with 2 DIMMs/channel capability, delivering the resources needed for memory hungry AI, ML, HPC, and large in-memory computations.

ON ORDER

RRP Price €0.00

Specifications

Processor

Processor socket
Socket SP5
Processor manufacturer
AMD
Processor family
AMD EPYC
Number of processors supported
1
Compatible processor series
AMD EPYC 9004

Memory

Number of DIMM slots
24
Supported memory types
DDR5-SDRAM
Supported DIMM module capacities
128GB, 64GB, 32GB, 16GB, 256GB
Maximum internal memory
6.14 TB
Supported RDIMM clock speeds
4400,4800,4000,3600 MHz

Storage

Number of storage drives supported
14
Hot-swap HDD bays
Yes
Number of 2.5" bays
12
Storage drive sizes supported
2.5,M.2
Supported storage drive types
HDD & SSD
SSD form factor
M.2

Network

Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
LAN controller
Intel® I350-AM2

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
2
IPMI LAN (RJ-45) port
Yes
VGA (D-Sub) ports quantity
1
COM ports quantity
1

Expansion slots

PCI Express slots version
5.0

Technical details

Compliance certificates
BSMI, CE, CB, RCM, Federal Communications Commission (FCC)

Design

Chassis type
Rack (1U)
Product colour
Grey
LED indicators
Yes
On/off switch
Yes

Power

Power supply
1600 W
Redundant power supply (RPS) support
Yes

Operational conditions

Operating temperature (T-T)
10 - 35 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
20 - 90%

Weight & dimensions

Width
449 mm
Depth
842.5 mm
Height
43.9 mm
Weight
14.2 kg

Packaging data

Package weight
19.2 kg

Accessories

License
