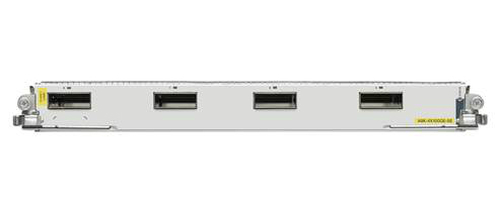

Cisco A9K-4X100GE-TR network switch module

Name: Cisco A9K-4X100GE-TR network switch module
Brand: Cisco
SKU: A9K-4X100GE-TR=
Price: 919078.83 EUR
Availability: OutOfStock

The Cisco® ASR 9000 Series 4-port Line Card and 8-port 100 Gigabit Ethernet Line Card deliver industry-leading high density, with line-rate 100 Gigabit Ethernet ports, to any slot of a Cisco ASR 9000 Series Aggregation Services Router. These high-capacity line cards are designed to remove bandwidth bottlenecks in the network that are caused by a large increase in video-on-demand (VoD), IPTV, point-to-point video, Internet video, and cloud services traffic. A single 100 Gigabit Ethernet port can now replace large 10 Gigabit Ethernet link aggregation bundles to simplify network operations. Based on Cisco CPAK™ technology, this line card has flexible interfaces that support 100 Gigabit Ethernet, 40 Gigabit Ethernet and 10 Gigabit Ethernet modes, so it gives customers the flexibility to mix and match interface types on the same line card.

For example, with the help of Cisco CPAK 10x10G-LR optics, a single 100 Gigabit Ethernet port can be divided into 10x10 Gigabit Ethernet ports using breakout cables or patch panels for unprecedented density and scale. These different interface modes can be configured easily through the command line interface (CLI) without resetting or restarting the line card. Using a “green design,” these line cards also let customers put an unused slice in power-saving mode to reduce power consumption. With these capabilities, the ASR 9000 Series line cards (Figure 1 and Figure 2) and routers provide the fundamental infrastructure for scalable Carrier Ethernet and IP/Multiprotocol Label Switching (IP/MPLS) networks, promoting profitable business, residential, and mobile services

ON ORDER

SKU: A9K-4X100GE-TR=

Manufacturer: Cisco Cisco

RRP Price €919,078.83

Specifications

Network

Ethernet LAN data rates

100000 Mbit/s

Networking standards

IEEE 802.1ag, IEEE 802.3ah, IEEE 802.3ba

Data transmission

Bandwidth

100 Gbit/s

Ports & interfaces

Fiber ports quantity

Performance

Quality of Service (QoS) support

Yes

Compatibility

Cisco ASR 9000

Operational conditions

Operating temperature (T-T)

5 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

-60 - 4000 m

Operating temperature (T-T)

41 - 104 °F

Certificates

Safety

UL/CSA/IEC/EN 60950-1, IEC/EN 60825 Laser Safety, ACA TS001, AS/NZS 60950, FDA: Code of Federal Regulations Laser Safety

Electromagnetic compatibility

FCC Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 (EN55022) Class A, VCCI Class A, BSMI Class A, IEC/EN 61000-3-2: Power Line Harmonics, IEC/EN 61000-3-3: Voltage Fluctuations and Flicker

Weight & dimensions

Dimensions (WxDxH)

41.4 x 368.3 x 559.3 mm

Weight

12.7 kg

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Cisco

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

12.7 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
