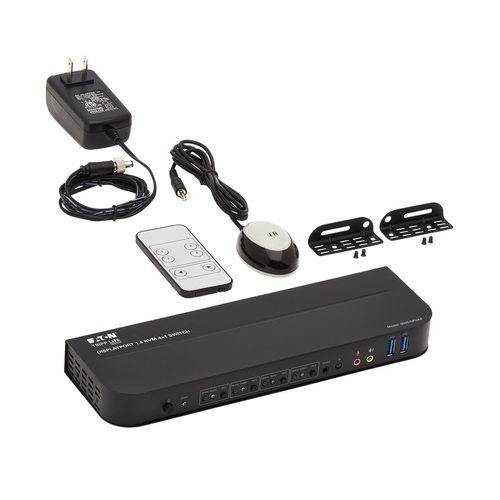

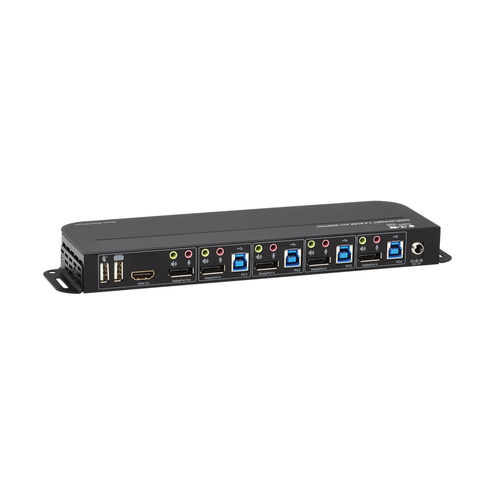

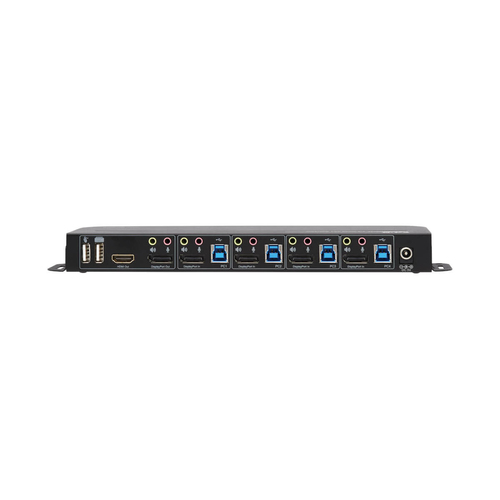

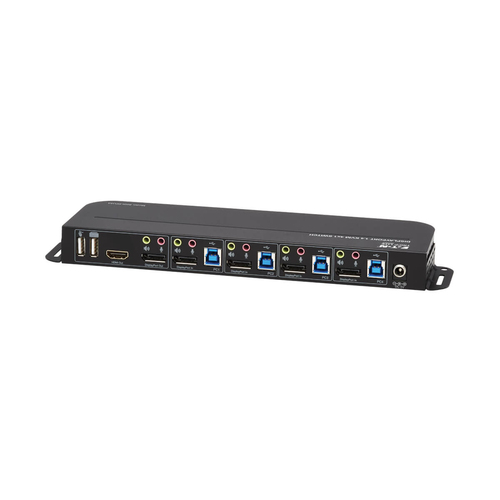

Tripp Lite B005-DPUA4 4-Port DisplayPort/USB KVM Switch - 4K 60 Hz, HDR, HDCP 2.2, IR, DP 1.4, USB Sharing

Connects 4 DisplayPort-Enabled Devices to a Single Monitor, Keyboard and Mouse
This KVM switch lets you access, control, boot and reboot four computers with DisplayPort connectors and switch between them. In addition to desktop and notebook computers, the switch also connects up to four media centers, video game systems, Blu-ray and DVD players, cable and satellite boxes, DVRs and other DisplayPort-enabled devices. All computers share one monitor, USB keyboard and USB mouse, which saves space on your desk or workspace.

Supports DisplayPort++ for Connecting an HDMI or DisplayPort Monitor
The B005-DPUA4 supports DP++, allowing incoming DisplayPort signals to be converted to HDMI. It features one DisplayPort output and one HDMI output, though only one monitor may be used at a time.

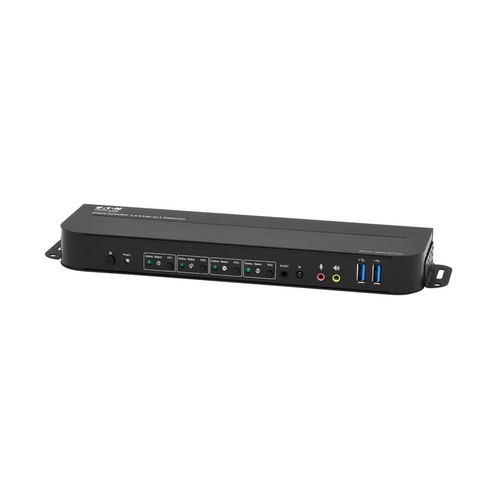

Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands, mouse movement or the included IR remote control for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected. Please note: The included IR remote requires a battery in order to work. Please note: Mouse Traversal is a permanent feature and cannot be disabled

USB Hub Lets You Share Peripherals between Computers
Two USB 3.0 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between both connected computers. The ports support USB 3.0 data transfer speeds up to 5 Gbps and are backward compatible with earlier USB generations.

Transmits Crystal-Clear True 4K Video with HDR and 4:4:4 Color
The B005-DPUA4 supports Ultra HD resolutions up to 4096 x 2160 (4K x 2K) at 60 Hz, as well as HDR video, providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This KVM switch also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

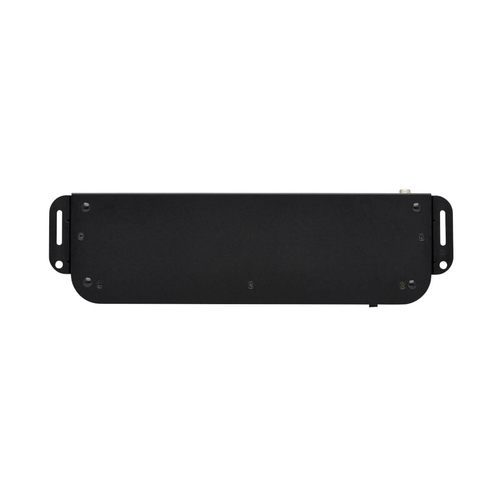

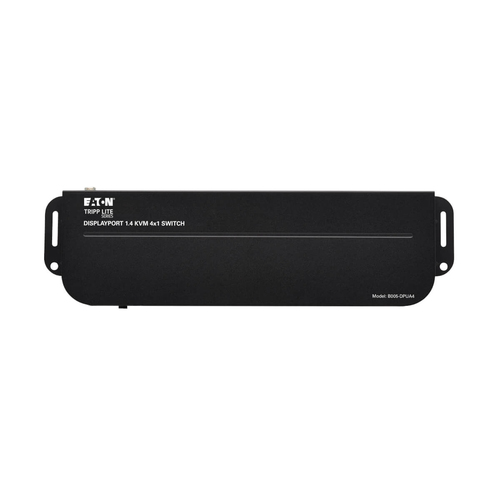

Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing comes with mounting brackets for permanent installation on a wall or beneath a desk with user-supplied hardware. The included DC power supply connects to any standard AC power source.

ON ORDER

SKU: B005-DPUA4

Manufacturer: Eaton Eaton

RRP Price €208.73

Specifications

Ports & interfaces

Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI/DisplayPort
HDMI ports quantity
1
HDMI version
2.0
DisplayPorts quantity
5
DisplayPort version
1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
Console ports
3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Console USB ports quantity
2
USB hub
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
6
Number of microphone inputs
6
DC-in jack
Yes

Performance

HD type
4K Ultra HD
Maximum resolution
4096 x 2160 pixels
Video bandwidth
60 Hz
Data transfer rate (max)
5 Gbit/s
Auto scan delay (min)
5 s
Auto scan delay (max)
999 s
HDCP
Yes
Plug and Play
Yes
Number of users
1 user(s)
Number of displays supported
4

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Certification
CE, FCC, REACH

Display

Built-in display
No
On Screen Display (OSD)
No

Power

Power source
AC
Input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
0.6 A
Output voltage
5 V
Output current
3 A
Power consumption (typical)
11.75 W
External power adapter
Yes
Compatible power plug types
AU, EU, UK, US

Sustainability

Compliance certificates
RoHS

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 90%

Weight & dimensions

Width
243.1 mm
Depth
74.9 mm
Height
25.9 mm
Weight
500 g

Packaging data

Package width
230.1 mm
Package depth
200.4 mm
Package height
65 mm
Package weight
550 g
Package type
Box

Packaging content

Manual
Yes
AC adapter included
Yes

Logistics data

Harmonized System (HS) code
85176200
Master (outer) case width
340.1 mm
Master (outer) case length
249.9 mm
Master (outer) case height
199.9 mm
Master (outer) case gross weight
3.5 kg
Products per master (outer) case
5 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332255027
Country of origin
Vietnam
