Tripp Lite B203-104-IND-ER 4-Port Industrial USB over Cat6 Extender, ESD Protection, PoC - USB 2.0, Mountable, 330 ft., TAA

Tripp Lite B203-104-IND-ER 4-Port Industrial USB over Cat6 Extender, ESD Protection, PoC - USB 2.0, Mountable, 330 ft., TAA

Name: Tripp Lite B203-104-IND-ER 4-Port Industrial USB over Cat6 Extender, ESD Protection, PoC - USB 2.0, Mountable, 330 ft., TAA
Brand: Eaton
SKU: B203-104-IND-ER
Price: 449.14 EUR
Availability: OutOfStock

Industrial-Grade Extender Connects Your Computer to 4 USB Devices up to 330 ft. Away
This plug-and-play extender kit with heavy-duty all-metal housings is ideal for connecting your office computer’s USB-A port to a printer, 1080p webcam, external hard drive and other USB devices located up to 330 feet (100 meters) away. The B203-104-IND-ER includes a local transmitter and a remote receiver that extends USB 2.0 signals over user-supplied Cat5/6 cabling (such as N202-Series Cat6 Ethernet cables).

Built-In Power over Cable Technology Provides Power to Avoid Bulky Power Bricks
PoC powers the transmitter over Cat6 cable. Green and orange LEDs on both units will light up to indicate they are receiving power and data is being transmitted. PoC gives you the freedom to place the transmitter or receiver away from AC outlets, avoiding the hassle of running new power lines and multiple bulky power bricks. Note
: if connected to a high-density USB hard drive, you may use the receiver’s RS-232 Phoenix connector or external power supply to add external power.

Protects Your Devices Against Electrostatic Discharge (ESD)
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This extender kit provides ESD protection to ±15 kV, reducing potential static damage to your connected USB peripherals. The durable metal transmitter and receiver units withstand harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses.

With Great Distance Comes Great Flexibility
By extending the USB connection beyond the standard 16-foot distance limitation to 330 feet, the B203-104-IND-ER provides workstation flexibility to place your computer and the USB devices where they are best suited. This extender kit supports USB 2.0 data transfer rates up to 300 Mbps and is backward compatible with USB 1.1 technology, allowing you to connect legacy devices. No network connectivity is needed.

Plug-and-Play Kit Offers Flexible Power and Installation Options

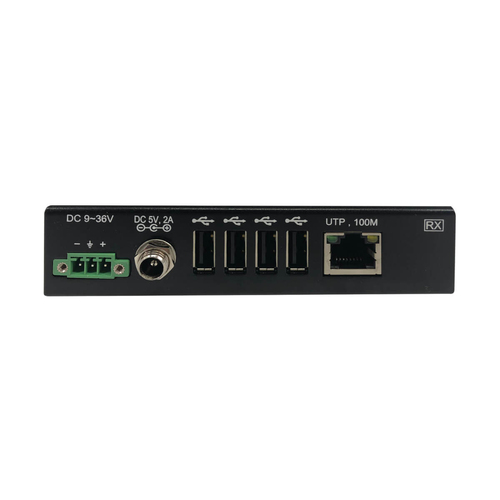

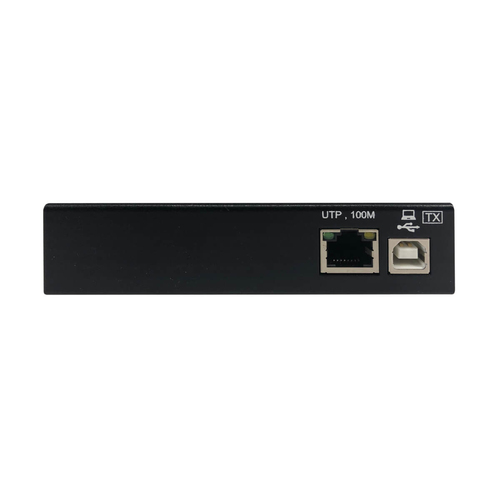

With user-supplied USB cables, connect the transmitter to your computer and the receiver to your USB peripherals. Connect the transmitter and receiver with a user-supplied Cat5/6 cable (all cables sold separately). The extender kit requires no software to download and install. The metal chassis rest easily on any flat surface or mount to a wall or DIN rail using the included hardware. A power supply with international plug adapters, as well as a RS-232 Phoenix adapter supporting a DC voltage range from 9-36V, are included for connecting external power to the unit as needed.

TAA-Compliant for GSA Schedule Purchases
The B203-104-IND-ER is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

ON ORDER

SKU: B203-104-IND-ER

Manufacturer: Eaton Eaton

RRP Price €449.14

Specifications

Performance

Type

Network transmitter & receiver

Maximum transfer distance

100 m

Data transfer rate

300 Mbit/s

Cable types supported

Cat6, Cat6a

Windows operating systems supported

Yes

Mac operating systems supported

Yes

Ports & interfaces

RJ-45 ports quantity (transmitter)

RJ-45 ports quantity (receiver)

USB 2.0 ports quantity

DC-in jack

Yes

Terminal block port

Yes

Design

Product colour

Black

Housing material

Metal

LED indicators

Yes

Country of origin

Taiwan

Power

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

0.35 A

External power adapter

Yes

Output voltage

5 V

Output current

2 A

Included power plug types

AU, EU, NA, UK

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-15 - 50 °C

Operating relative humidity (H-H)

0 - 85%

Weight & dimensions

Weight

450 g

Transmitter width

6.24 cm

Transmitter depth

2.7 cm

Transmitter height

11.5 cm

Transmitter weight

450 g

Receiver width

6.24 cm

Receiver depth

2.7 cm

Receiver height

11.5 cm

Receiver weight

450 g

Cable length

1.37 m

Packaging content

Manual

Yes

AC adapter included

Yes

Packaging data

Package type

Box

Package width

260.1 mm

Package depth

164.1 mm

Package height

55.1 mm

Package weight

760 g

Logistics data

Master (outer) case GTIN (EAN/UPC)

10037332260601

Harmonized System (HS) code

85176990

Master (outer) case width

573 mm

Master (outer) case length

273 mm

Master (outer) case height

175 mm

Master (outer) case gross weight

7.9 kg

Products per master (outer) case

10 pc(s)
