C1300-24XTS - Switches by Cisco

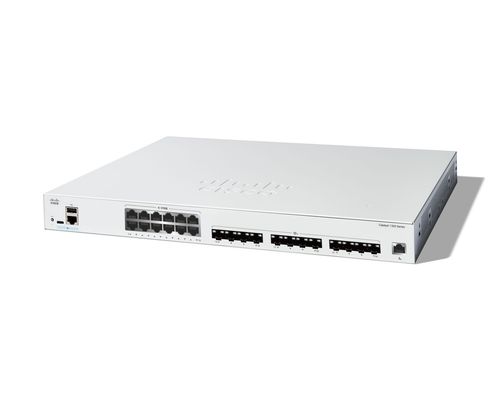

Name: Cisco Catalyst 1300-24FP-4X Managed Switch, 24 Port GE, Full PoE, 4x10GE SFP+, Limited Lifetime Protection (C1300-24FP-4X)
Brand: Cisco
SKU: C1300-24XTS
Price: 2931.96 EUR
Availability: InStock

The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for small and medium-sized businesses and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you’re ready for the Cisco Catalyst 1300 Series Switches.

189 IN STOCK

RRP Price €2,931.96

Specifications

Management features

Switch type

Managed

Switch layer

L2/L3

Quality of Service (QoS) support

Yes

Web-based management

Yes

Configuring Location Settings (CLI)

Yes

MIB support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

10G Ethernet (100/1000/10000)

SFP+ module slots quantity

Console port

RJ-45/USB Type-C

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Cable types supported

Cat5e

Port mirroring

Yes

Policy-based routing

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Rate limiting

Yes

Spanning tree protocol

Yes

Head-of-line (HOL) blocking

Yes

QinQ implementation

Selective QinQ

VLAN support

Yes

Virtual LAN features

Private VLAN, Voice VLAN

Data transmission

Switching capacity

480 Gbit/s

MAC address table

16000 entries

Number of queues

Static route

Yes

Number of static routes

990

Jumbo frames support

Yes

Jumbo frames

9000

Packet buffer memory

8 MB

Security

DHCP features

DHCP auto-config, DHCP client, DHCP relay, DHCP server, DHCP snooping

Access Control List (ACL)

Yes

Access Control List (ACL) rules

1024

IGMP snooping

Yes

IGMP proxy

Yes

Security algorithms

HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2

SSH/SSL support

Yes

Authentication

MAC-based authentication, Web-based authentication

DoS attack prevention

Yes

Authentication type

RADIUS, TACACS+

Queue scheduling algorithms

Weighted Round Robin (WRR)

Multicast features

Multicast support

Yes

Protocols

GARP VLAN Registration Protocol (GVRP)

Yes

IPv4 & IPv6 features

ICMPv6, IPv6 SNMP, IPv6 SSH, IPv6 TFTP, IPv6 Telnet

Design

Rack mounting

Yes

Product colour

Grey

Reset button

Yes

Performance

Built-in processor

Yes

Processor frequency

1.4 MHz

Memory type

DDR4-SDRAM

Internal memory

1000 MB

Flash memory

512 MB

Noise level

39 dB

Plug and Play

Yes

Mean time between failures (MTBF)

427188 h

Power

Power source

AC input voltage

100 - 220 V

AC input frequency

50/60 Hz

Power consumption (typical)

88.2 W

Power plug type

Type C

Other features

Packaging content

Switch, power cable, USB Type C cable and mounting hardware

Operational conditions

Operating temperature (T-T)

-5 - 50 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Heat dissipation

300.76 BTU/h

Weight & dimensions

Width

445 mm

Depth

350 mm

Height

44 mm

Weight

4.2 kg

Packaging data

Package width

430 mm

Package depth

574.7 mm

Package height

105.9 mm

Package weight

5.6 kg

Certificates

Certification

UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

Logistics data

Country of origin

China

Description

Manufacturer

Cisco

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

189

WH3 (5–7 Days)

N/A

Weight

4.2 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
