Crestron C3IO-16 digital/analogue I/O module Analog

Name: Crestron C3IO-16 digital/analogue I/O module Analog
Brand: Crestron
SKU: C3IO-16
Price: 730.80 EUR
Availability: OutOfStock

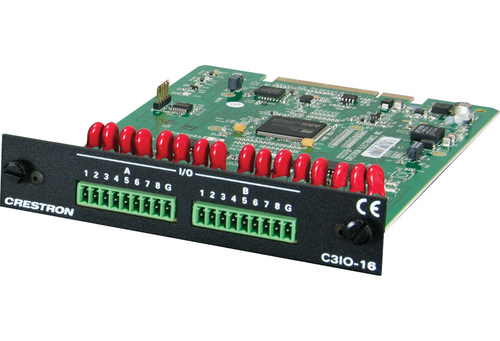

The C3IO-16 is a 3-Series™ control card that provides sixteen Crestron® Versiport I/O ports. Each I/O port can function as a 0-10V analog input, a digital logic sensing input, or a digital logic output. The card is designed to install in a control card expansion slot of a 3-Series Control System® model PRO3 or AV3^[1], or 3-Series Card Interface model CEN-CI3-1 or CEN-CI3-3.

(2) 9-pin 3.5mm detachable terminal blocks comprising (16) “Versiport” digital input/output or analog input ports (referenced to GND);
Digital Input: Rated for 0-24 Volts DC, input impedance 20k Ohms, logic threshold >3.125V low/0 and <1.875V high/1;
Digital Output: 250mA sink from maximum 24 Volts DC, catch diodes for use with “real world” loads;
Analog Input: Rated for 0-10 Volts DC, protected to 24 Volts DC maximum, input impedance 21k Ohms with pull-up resistor disabled;
Programmable 5 Volts, 2k Ohms pull-up resistor per pin

ON ORDER

SKU: C3IO-16

Manufacturer: Crestron

RRP Price €730.80

Specifications

Features

Module type

Analog

Signal direction

Input/output

Operational conditions

Operating temperature (T-T)

5 - 45 °C

Relative humidity

10 - 90%

Description

Manufacturer

Crestron

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.114 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
