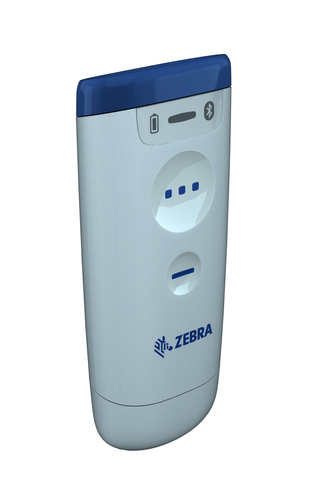

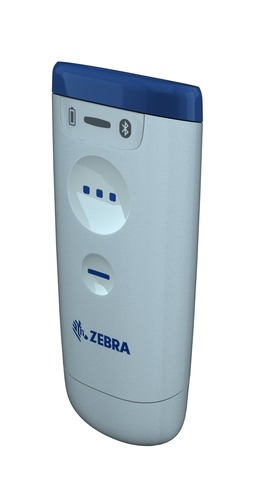

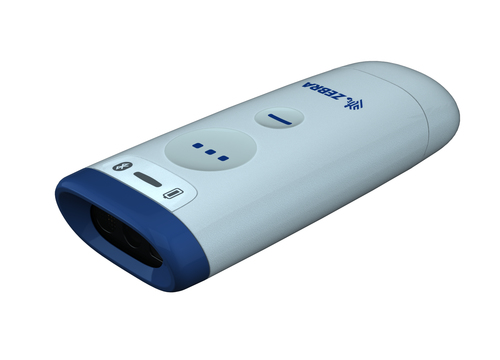

Zebra CS60-HC Handheld bar code reader 1D/2D LED White

ULTRA-VERSATILE WITH A FIRST-OF-ITS-KIND CONVERTIBLE DESIGN
The ultra-versatile CS60-HC Healthcare Series Companion Scanner is designed specifically for healthcare and adapts to any clinician workflow. Its groundbreaking design easily converts between corded and cordless operation, handheld and hands-free, as your needs change for superior investment protection. And it features a purpose-built housing that helps offer maximum protection against the spread of bacteria, including a crevice-free surface that helps eliminate places where germs can hide.

ADAPTS TO ANY CLINICIAN WORKFLOW
As a cordless companion scanner, the CS60-HC is small enough to meet any nurse-carry workflow. And as a corded scanner, the CS60-HC provides compact scanning for the pharmacy counter, lab station and more. Whether you purchase a corded or cordless model up front, you can change modes at any time.

CUTTING-EDGE CLINICAL MOBILITY
With Qi inductive charging, split-second NFC tap-to-pair, Bluetooth 5.0 with Wi-Fi friendly mode, an 18-hour battery and Virtual Tether anti-loss functionality, the cordless CS60-HC is pocketable and wearable when clinician mobility is essential.

PURPOSE BUILT FOR HEALTHCARE
Thanks to a safe LED aimer, night mode and an IP65 sealed disinfectant-ready housing with a crevice-free surface that helps eliminate places where germs can hide, the CS60-HC is designed to be used throughout the whole hospital including the NICU, labour and delivery and mother-baby units.

ON ORDER

SKU: CS6080-HCB0000KSVW

Manufacturer: Zebra Zebra

RRP Price €549.13

Specifications

Scanning

Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
LED
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)
1280 x 960 pixels
Light levels (direct sunlight)
0 - 108000 lx
Wavelength
525 nm
Tilt reading angle
-60 - 60°
Pitch reading angle
-60 - 60°
Yaw reading angle
0 - 360°

Ports & interfaces

Connectivity technology
Wireless
Standard interfaces
Bluetooth, USB
Wireless range
100 m
Bluetooth version
5.0
Bluetooth Low Energy (BLE)
Yes

Performance

International Protection (IP) code
IP65
LED indicators
Yes
Product colour
White
Certification
FIPS 140-2

Power

Power source type
AC, DC, USB
Number of reads per charge
13000
Power consumption
400 mA

Weight & dimensions

Width
46 mm
Depth
109 mm
Height
23 mm
Weight
58 g

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Technical details

Compliance certificates
RoHS

Logistics data

Harmonized System (HS) code
84716070

Accessories

License
