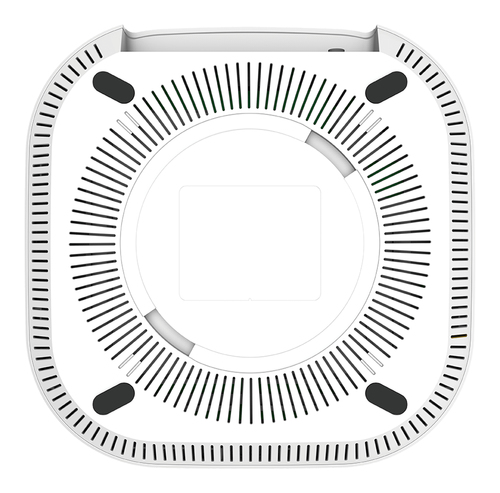

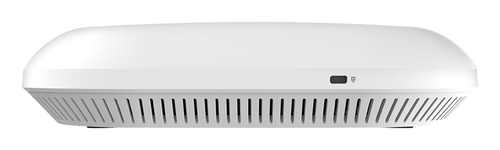

D-Link Nuclias AX3600 Wi-Fi Cloud-Managed Access Point

Cloud‑managed Wi‑Fi 6
Manage your wireless network from anywhere in the world with this Nuclias Cloud Wi-Fi 6 indoor access point. Designed to give you the latest technology and efficiency in any setup, it’s ideal for SMB, retailers, hospitality, campuses, and managed service providers. Deliver high-combined data rates of up to 3,600 Mbps2 over 2 dedicated wireless bands with the latest WPA3 wireless security.

Nuclias cloud-based network management
Manage your network from one place from a browser or through the tablet app, anywhere, anytime.1

License included
1-year Nuclias Cloud Management license included with the product. Renewal options from 1 to 5 years.

Wi-Fi 6
Combined dual-band 802.11ax speeds of up to 3.6Gbps.2

Zero-Touch Provisioning
Plug and play, cloud-based auto-configuration.

Unlimited scalability
Easy to add or scale back in line with demand.

Gigabit PoE Ethernet LAN Port
Power the device over Ethernet without the need for nearby power outlets.

Wi‑Fi 6 means better performance
Uses the latest Wi-Fi technology to deliver reliable wireless performance and reduce congestion, with maximum wireless signal rates of up to 1147 Mbps in the 2.4 GHz band and 2402 Mbps in the 5 GHz band2.

Simple and clean installation.

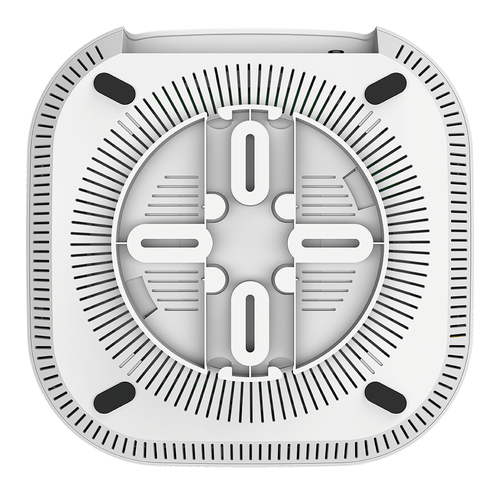

It can be ceiling-mounted, wall-mounted, or placed on a desk, and PoE support allows for easy and simple installation. No need to run extra power lines, and no-hassle configuration thanks to the Nuclias Cloud management and auto-configuration options. Perfect for advanced installations where technicians may not be readily available.

Seamlessly connect entire crowds to a safer and faster internet.
It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. It features wireless client isolation, which limits direct client-to-client communication for added privacy. Moreover, Network Access Protection (NAP) allows multiple levels of network access to be defined based on a client’s needs.

Effectively organise your entire wireless network.
With D-Link Nuclias Cloud, businesses can organise their entire wireless network, manage multiple APs simultaneously, and monitor live network statistics. This enables you to focus more on providing reliable connectivity and services and spend less time managing devices.

Increase network speeds and efficiency.
Load-balancing optimisation effectively eliminates the need for the dedicated hardware and RF expertise that would otherwise typically be required to tune a wireless network. And BSS Colouring, OFDMA, and MU-MIMO all increase wireless network capacity and efficiency.

Scale your Wi‑Fi alongside your business.
Nuclias Cloud is designed with unlimited scalability, so you can always tailor to the demands of the business. Adding a new site or expanding an existing one is quick and easy thanks to all management and configuration being done through the cloud, with access points being ready to deploy straight out of the box.

ON ORDER

SKU: DBA-X2830P

Manufacturer: D-Link D-Link

RRP Price €681.40

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
2402 Mbit/s
Maximum data transfer rate (2.4 GHz)
1147 Mbit/s
Maximum data transfer rate (5 GHz)
2402 Mbit/s
Ethernet LAN data rates
10,100,1000,25000 Mbit/s
Throughput data rate
3.6 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
MIMO
Yes
MIMO type
Multi User MIMO
VLAN support
Yes
Flow control support
Yes
Band steering
Yes
Transmitting power (CE)
20 dBm
Transmitting power (FCC)
20 dBm
Mean time between failures (MTBF)
485000 h

Security

Security algorithms
SSID, WPA, WPA-RADIUS, WPA2, WPA3
MAC address filtering
Yes
IP address filtering
Yes
Number of SSID supported
16
System status alarm
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes

Protocols

IPv4 & IPv6 features
IPv6 portal

Management features

Web-based management
Yes
Firmware upgradeable
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
2
Internal RJ-45 ports quantity
1
WAN connection
Ethernet (RJ-45)

Power

Power over Ethernet (PoE)
Yes
Output voltage
12 V
Output current
2.5 A
Power consumption (typical)
25.1 W
Power consumption (max)
27 W

Design

Placement
Ceiling, Table, Wall
Product colour
White
On/off switch
Yes
Reset button
Yes
LED indicators
LAN, PoE, Power

Antenna

Antenna type
Internal
Antenna direction type
Omni-directional
Antennas quantity
4
Antenna gain level (max)
4 dBi

Certificates

Certification
CE Class B FCC Class B UL-2043 IC Class B

Weight & dimensions

Width
224.5 mm
Depth
223.9 mm
Height
50 mm
Weight
935 g

Operational conditions

Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 65 °C
Storage relative humidity (H-H)
5 - 95%

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
