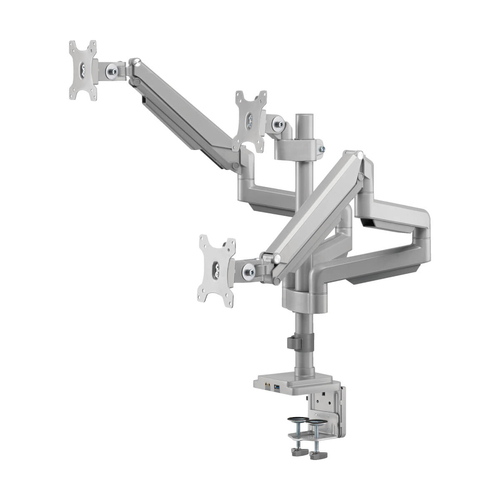

Tripp Lite DDR1730TAL Triple-Display Gas-Spring Flex-Arm Desktop Clamp and Grommet for 17” to 30” Flat-Screen Displays - USB and Audio Ports, Aluminum

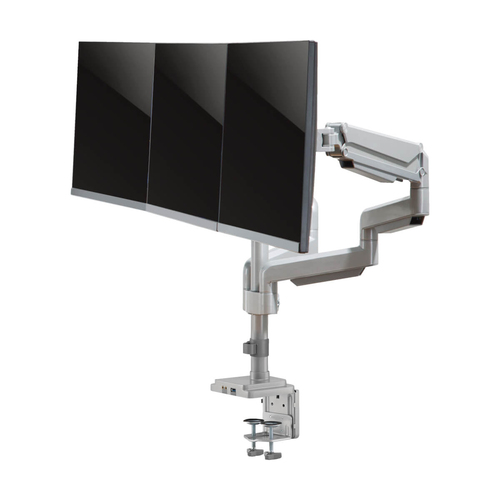

Rugged Aluminum Desk Clamp Lifts Your Monitors Above Your Work Area’s Surface

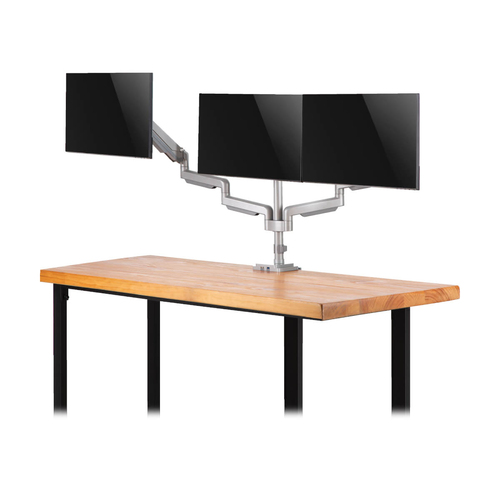

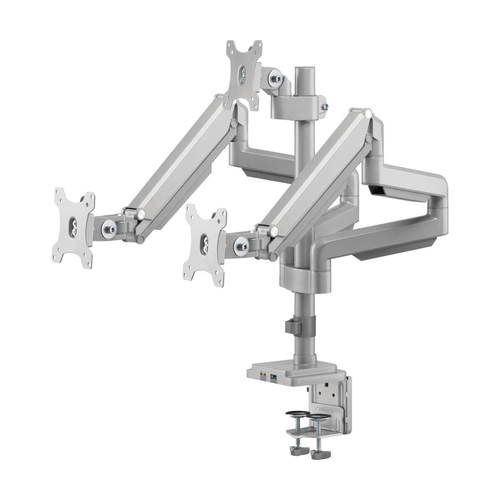

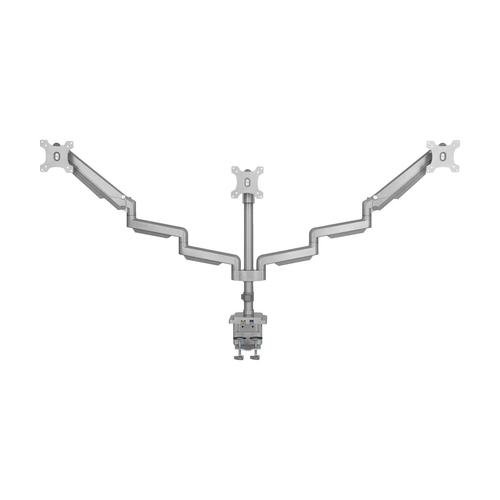

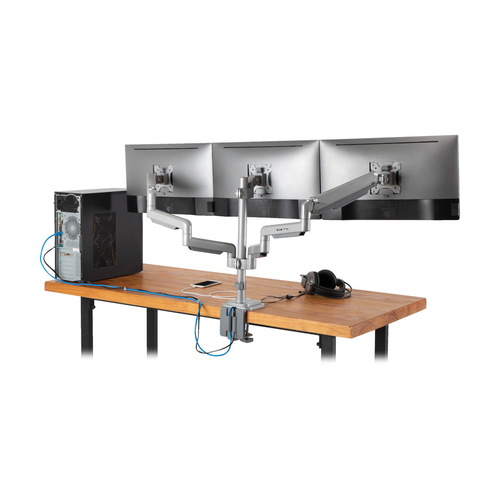

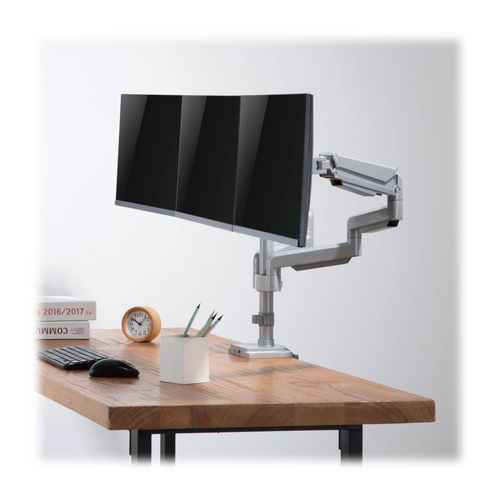

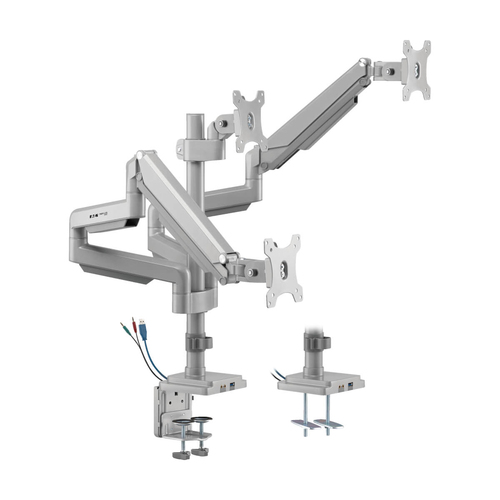

This VESA-compliant desktop clamp or grommet mounts three flat-screen displays above your desk, table or workstation, allowing you to free up valuable surface space. Recommended for home or office use, the DDR1730TAL fits most flat-panel monitors from 17 to 30 inches. The durable aluminum frame tolerates frequent adjustments, and the two swiveling aluminum arms support up to 15.4 pounds apiece. Instead of clamping the unit to your desktop, you may install it using the included grommet. All hardware is included. Cable management brackets along the arms prevent excess cord clutter.

Swivel, Tilt and Rotate the Screens to Find the Most Comfortable Viewing Angles

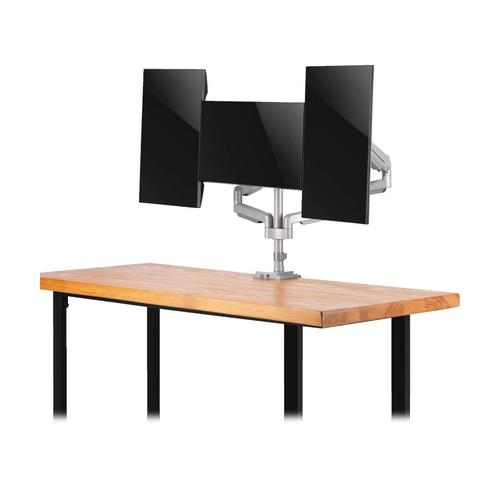

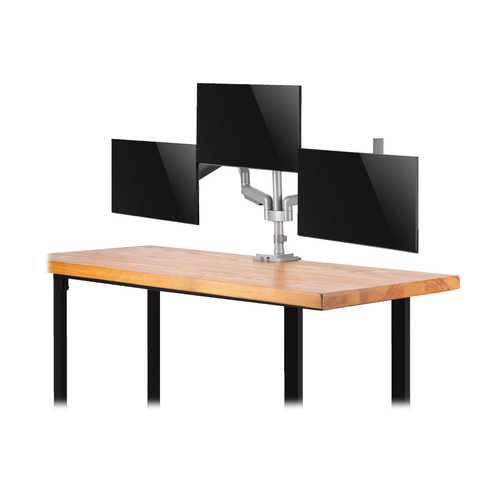

The flex gas-spring arms adjust independently to optimize viewing angles, minimize glare and improve ergonomics. To minimize screen glare, reduce eye fatigue and increase viewing comfort, the mount features -90° to +90° tilt, -90° to +90° swivel and 90° rotation for positioning your screens. Easy screen adjustment lets you quickly find just the right angles without interrupting your workday.

Connect Your Favorite Devices to Help You Get Through the Workday

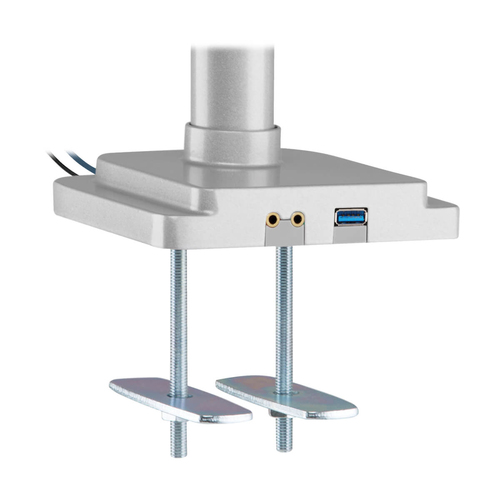

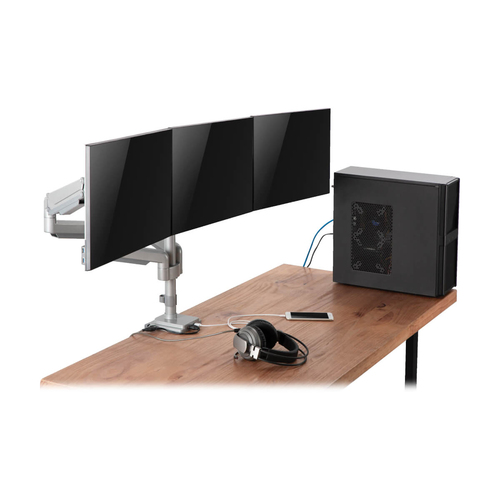

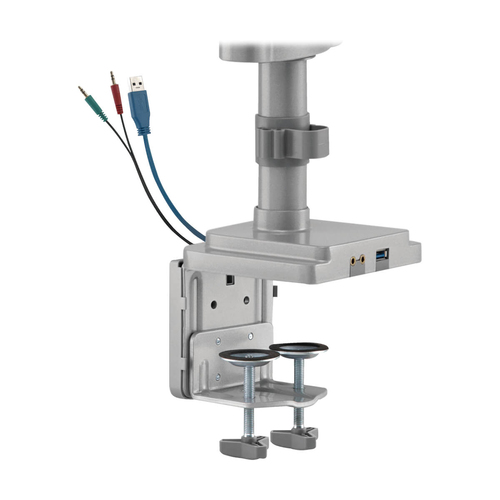

The base of the DDR1730TAL features a USB 3.0 port for connecting a smartphone, tablet or other USB device. Two 3.5 mm audio jacks allow connection of a microphone and speakers.

VESA-Compliant Mounting Ensures Display Compatibility
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for TVs and monitors. For hassle-free display compatibility, this monitor stand supports the following VESA mounting hole patterns: 75 x 75 and 100 x 100.

ON ORDER

SKU: DDR1730TAL

Manufacturer: Eaton Eaton

RRP Price €161.03

Specifications

Mounting

Maximum weight capacity
21 kg
Minimum screen size
43.2 cm (17")
Number of displays supported
3
Maximum weight capacity (per display)
7 kg
Maximum screen size
76.2 cm (30")
Mounting
Clamp/Bolt-through
Mounting type
Desk
Minimum VESA mount
75 x 75 mm
Maximum VESA mount
100 x 100 mm
Panel mounting interface
75 x 75,100 x 100 mm

Ergonomics

Height adjustment
Yes
Tilt adjustment
Yes
Tilt angle range
-90 - 90°
Swivel angle range
-90 - 90°
Angle of rotation
90°
Cable management
Yes

Design

Housing material
Aluminium, Steel
Product colour
Silver

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Microphone in
Yes
Headphone outputs
1

Weight & dimensions

Width
1518.9 mm
Depth
193 mm
Height
739.1 mm
Weight
9.39 kg

Packaging data

Package width
159 mm
Package depth
403.9 mm
Package height
541 mm
Package weight
10.6 kg

Packaging content

Mounting kit
Yes
Manual
Yes

Logistics data

Master (outer) case width
315 mm
Master (outer) case length
520.7 mm
Master (outer) case height
464.8 mm
Master (outer) case gross weight
22.3 kg
Products per master (outer) case
2 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332262513
Country of origin
China
Harmonized System (HS) code
85299097
