Shuttle XPC slim Barebone DH32U5, Intel i5-1135G7, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA 24/7 permanent operation

Shuttle XPC slim Barebone DH32U5, Intel i5-1135G7, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA 24/7 permanent operation

Name: Shuttle XPC slim Barebone DH32U5, Intel i5-1135G7, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA 24/7 permanent operation
Brand: Shuttle
SKU: DH32U5
Price: 720.65 EUR
Availability: OutOfStock

Powerful 1.3-litre PC with Intel "Tiger Lake-U" processor supports four UHD displays
This space-saving Slim PC integrates an energy-efficient Gen 11 Intel ULV processor "Tiger Lake-U" and supports no less than four Ultra HD displays at a 60 Hz frame rate via HDMI 2.0b. Its slim metal chassis with a VESA mount included versatile connectivity and reliable operation in ambient temperatures of up to 50 °C degrees, make it ideal for vertical applications such as video walls, digital signage, kiosks, surveillance, control room, gambling machines, healthcare and industry.

ON ORDER

SKU: DH32U5

Manufacturer: Shuttle Shuttle

RRP Price €720.65

Specifications

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i5

Processor generation

11th gen Intel® Core™ i5

Processor model

i5-1135G7

Processor cores

Processor threads

Processor boost frequency

4.2 GHz

Built-in processor

Yes

Processor lithography

10 nm

Processor cache

8 MB

CPU configuration (max)

Memory

Memory slots type

SO-DIMM

Number of memory slots

Maximum internal memory

64 GB

Supported memory clock speeds

3200 MHz

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Memory voltage

1.2 V

Storage

Supported storage drive types

HDD & SSD

Storage drive sizes supported

2.5,M.2

Storage drive interface

PCI Express, Serial ATA III

Number of storage drives supported

Card reader integrated

Yes

Compatible memory cards

SD, SDHC, SDXC

Graphics

On-board graphics card

Yes

Graphics card family

Intel

On-board graphics card model

Intel Iris Xe Graphics

Maximum resolution

4096 x 2304 pixels

Audio

Built-in speaker(s)

Network

Ethernet LAN

Yes

Wi-Fi

LAN controller

Intel® I211

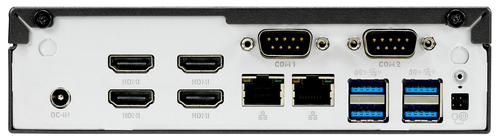

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

HDMI ports quantity

HDMI version

2.0b

Microphone in

Yes

Headphone outputs

Ethernet LAN (RJ-45) ports

Serial ports quantity

DC-in jack

Yes

Expansion slots

PCI Express slots version

4.0

Number of M.2 (M) slots

Design

Chassis type

1.35L sized PC

Product colour

Black

Cooling type

Active

LED indicators

HDD, Power

Housing material

Metal

Cable lock slot

Yes

Cable lock slot type

Kensington

VESA mounting

Yes

Product type

Mini PC barebone

Performance

Motherboard chipset

Intel SoC

Number of processors supported

BIOS type

UEFI AMI

Trusted Platform Module (TPM) version

2.0

Audio output channels

5.1 channels

Processor special features

Embedded options available

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Idle States

Yes

Intel Trusted Execution Technology

Intel Stable Image Platform Program (SIPP)

Intel Virtualization Technology (VT-x)

Yes

Logistics data

Harmonized System (HS) code

84713000

Software

Windows operating systems supported

Windows 10, Windows 11

Linux operating systems supported

Yes

Operating system installed

Power

Power supply type

External AC adapter

Power supply

90 W

Number of power supply units

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

AC adapter output voltage

19 V

AC adapter output current

4.74 A

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

190 mm

Depth

165 mm

Height

43 mm

Weight

1.3 kg

Package weight

2.1 kg

Packaging content

Power cord included

Yes

AC adapter included

Yes

Drivers included

Yes

Other features

Country of origin

China

Description

Manufacturer

Shuttle

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

1.3 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
