Crestron DM-TX-201-C network extender Network transmitter Black 10, 100 Mbit/s

Provides a remote input connection for HDMI® and VGA sources as part of a complete DigitalMedia™ System. Connects to the DM 8G+® input of a DM® Switcher or Receiver via CATx cable. Includes a USB HID device port, allowing the connected host device to be controlled by a keyboard and mouse at a different location.

The DM-TX-201-C provides an interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia™ system. Its low-profile, surface-mountable design makes it ideal for installation beneath a conference table, inside a lectern or equipment rack, or at virtually any other location in a boardroom, classroom, auditorium, or residence. It functions as a DM 8G+® transmitter and switcher, providing HDMI®, VGA, and analog audio inputs along with Ethernet and USB HID ports for a total connectivity solution. In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to the input of an HDBaseT certified display device. It connects to the head end or display location using a single CAT type twisted pair cable.^[1]

DigitalMedia 8G+®
As the leader in HDMI and control system technologies, Crestron developed DigitalMedia (DM®) to deliver the first complete HD AV distribution system to take HDMI to a higher level. DigitalMedia allows virtually any mix of HDMI and other AV sources to be distributed throughout a home, office, school, or virtually any other facility. The latest generation of DM is called DigitalMedia 8G™ (DM 8G®). Engineered for ultra high-bandwidth and ultimate scalability, DM 8G provides a true one-wire lossless transport for moving high-definition video, audio, Ethernet, and control signals over a choice of twisted pair or fiber optic cable.

DM 8G over twisted pair copper wire is called DigitalMedia 8G+ (DM 8G+). DM 8G+ handles uncompressed Full HD 1080p video signals with support for HDCP, as well as computer signals up to WUXGA. All signals are transported over a single CAT type cable, supporting distances up to 330 feet (100 m) using Crestron DM 8G Cable or CAT5e.^[1]

HDBaseT® Certified
Crestron DigitalMedia 8G+ technology is designed using HDBaseT Alliance specifications, ensuring interoperability with other HDBaseT certified products. Via its DM 8G+ output, the DM-TX-201-C can be connected directly to an HDBaseT compliant device without requiring a DM receiver.

Multimedia Computer/AV Interface
The DM-TX-201-C provides simple switching between two inputs. The inputs can be configured to switch automatically or be controlled through a Crestron control system. Inputs include:

- HDMI — Provides a digital multimedia input for mobile devices, computers, and AV sources with resolutions up to HD 1080p60 and WUXGA. Also handles DVI and Dual-Mode DisplayPort signals using an appropriate adapter or interface cable.^[2]
- RGB — This VGA type input handles analog RGB signals up to WUXGA 1920x1200 pixels, as well as analog video up to 1080p60.^[3] A 1/8" (3.5 mm) stereo audio input is included to accommodate the analog audio signal from an unbalanced line-level source or headphone output.

A single CAT type cable connects the DM-TX-201-C to a DM switcher or receiver, or to an HDBaseT device, transporting video, audio, control, networking, and power signals all through one simple RJ45 connection.^[1,4,5] Used with a single DM 8G+ Receiver/Room Controller and optional Crestron control system, the DM-TX-201-C affords a simple solution for extending a computer or AV signal to a single display. As part of a larger system using a DM-MD series switcher, multiple DM-TX-201-Cs may be installed to enable the distribution of several sources at different locations to feed multiple displays throughout any room or larger facility.

Local HDMI Output
An HDMI output is included to enable pass-through of the selected video and audio signals to feed a local display, monitor, or sound system.

LAN Connectivity
Along with high-definition AV and control, DigitalMedia also integrates high-speed Ethernet networking for a total signal distribution solution. The DM-TX-201-C includes a 10/100 Ethernet port, which can be used to provide a convenient LAN connection for a local network device.

USB Signal Extension
The DM-TX-201-C also functions as a keyboard/mouse extender, allowing the connected computer (or other USB HID-compliant host) to be controlled by a mouse and/or keyboard located at a presentation lectern, conference table, or some other remote location. Additional USB devices of virtually any type can be supported using Crestron USB over Ethernet Extenders (USB-EXT-DM).^[6]

CEC Embedded Device Control
DigitalMedia provides an alternative to conventional IR and RS-232 device control by harnessing the CEC (Consumer Electronics Control) signal embedded in HDMI. Through its connection to the control system, the DM-TX-201-C provides a gateway for controlling the connected source device right through the HDMI connection, potentially eliminating the need for any dedicated control wires or IR emitters.

Crestron Connect It™
A Crestron Connect It Cable Caddy (TT-100 series) offers a convenient tabletop connectivity solution that works with the DM-TX-201-C. The cable caddy gets its control from the DM-TX-201-C through a simple USB connection.^[7]

Compact and Versatile

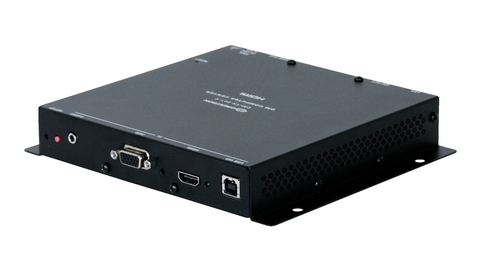

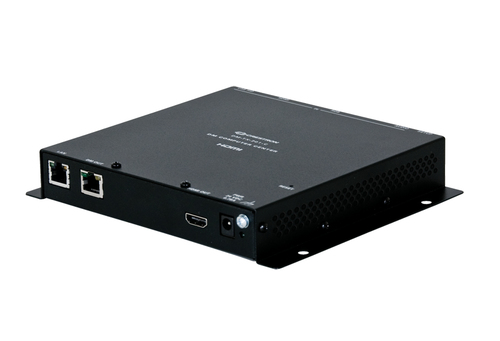

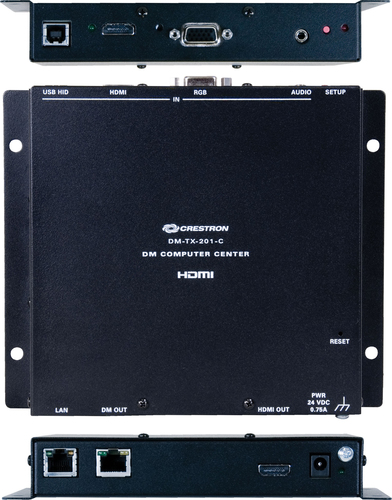

The DM-TX-201-C is designed to be mounted to a flat surface or placed on a shelf. It is compact enough to fit discreetly inside a presentation lectern or beneath a table, and can even be attached to a rack rail in the back of an equipment cabinet. The unit can be powered using the wall mount power pack (included), or PoDM (Power over DigitalMedia) for a true one-wire solution.^[4,5] An array of indicators is provided for easy setup and troubleshooting.

A Digital Upgrade for Legacy Systems
The DM-TX-201-C also affords a perfect signal converter for integrating DigitalMedia with analog-based systems like Crestron MPS, QuickMedia®, and the CEN-RGBHV Series. A simple HD15 VGA cable connected between the output of an MPS system and the input of the DM-TX-201-C allows every RGB, component, S-Video, and composite video input on the MPS to be converted to DigitalMedia.^[3] Analog audio is converted similarly through an unbalanced stereo audio cable. The DM-TX-201-C's HDMI input may also be used to expand the input capabilities of the MPS system to handle digital AV sources.

1 For DM 8G+ or HDBaseT wiring, use Crestron DM-CBL-8G DigitalMedia 8G Cable or third-party CAT5e (or better) UTP or STP. (Crestron legacy DM-CBL DigitalMedia Cable or DM-CBL-D DigitalMedia D Cable may also be used.) The maximum wire length for DM 8G+ is 330 ft (100 m) between devices. Shielded cable and connectors are recommended to safeguard against unpredictable environmental electrical noise which may impact performance at resolutions above 1080p. Refer to the Crestron DigitalMedia Design Guide, Doc. #4546 for complete system design guidelines. DM 8G+ is compatible with HDBaseT Alliance specifications for connecting to HDBaseT compliant equipment. All wire and cables are sold separately.
2 HDMI connections require an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are available separately.
3 The RGB input can actually accept component, composite, and S-Video signals through an appropriate adapter (not included), or via direct interface to Crestron MPS Series products. However, input sync detection is not provided for composite or S-Video signal types through this connection.
4 To power the DM-TX-201-C using PoDM (Power over DigitalMedia) requires connection to a DM switcher or other equipment that has a PoDM PSE port. Any wiring that is connected to a PoDM PSE port is for intra-building use only and should not be connected to a line that runs outside of the building in which the PSE is located.
5 To power the DM-TX-201-C using HDBaseT PoE requires connection to a switcher or other equipment that has an HDBaseT PoE PSE port. Any wiring that is connected to an HDBaseT PoE PSE port is for intra-building use only and should not be connected to a line that runs outside of the building in which the PSE is located.
6 USB-EXT-DM USB over Ethernet Extender Modules are sold separately. Refer to the USB-EXT-DM spec sheet for more information.
7 The DM-TX-201-C has a USB device port, which does not supply USB power. When connected to a TT-100 series cable caddy (sold separately), the cable caddy must be powered separately through a connection to a Cresnet® network or power supply. Refer to the TT-100 spec sheet for more information.
