Digitus Wall Mounting Cabinets IP55 - Outdoor - 600x450 mm (WxD)

The DIGITUS® IP55 Outdoor Wall Mounting Cabinets are designed for industrial applications with protection against water and dust acc. to safety class IP55.

- Protected against dust and water jets (IP 55)
- Steel front door with lockable pivot lever and 3-point-locking mechanism
- Front door with earthing lead and two welded, strengthening bars in U-shape as well as gasketting system
- Free standing usage with additional plinth possible

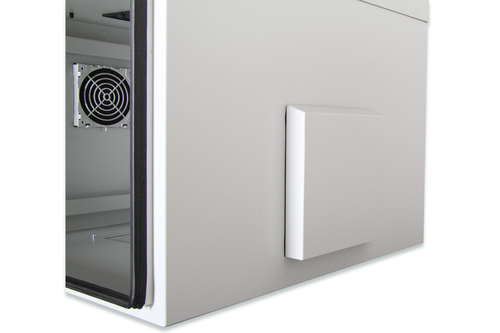

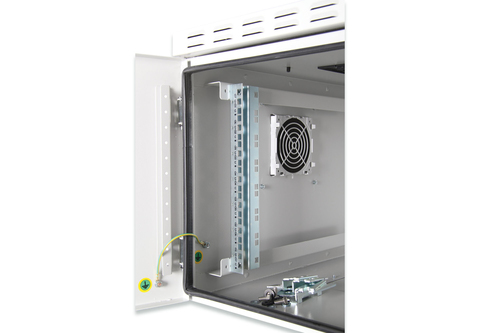

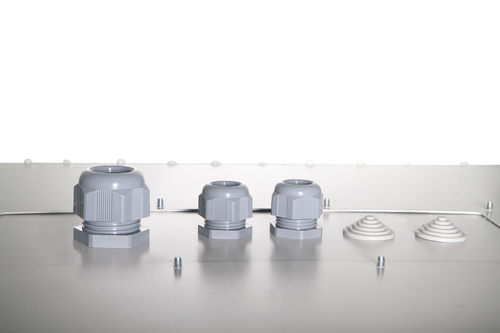

The industrial network cabinets for wall installation are specially adapted according to protection type IP55 for the requirements of harsh environments, particularly outdoors. The wall housings offer optimal performance in part thanks to the 3-point locking system with lockable swing handle and insulated PG cable glands. Integrated fan filter housing ensures fresh air supply (protection against penetration of water and dust pursuant to IP54). Applications including outdoor areas that are subject to environmental effects (rain, dust, hail, snow, spraying water). To accommodate a fan module, the roof structure is also equipped with a filtered area. One pair of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 2.0 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard color gray (RAL 7035). Wall installation is carried out using the enclosed mounting bracket. Optionally, the cabinets can be used with a plinth as a free-standing solution or fastened to poles using the fastening set.

ON ORDER

SKU: DN-19 16U-I-OD

Manufacturer: Digitus Digitus

RRP Price €637.25

Specifications

Features

Type
Wall mounted rack
Maximum weight capacity
100 kg
Product colour
Grey
Front door construction
Steel
International Protection (IP) code
IP55

Weight & dimensions

Size (imperial)
48.3 cm (19")
Width
600 mm
Depth
450 mm
Height
450 mm

Packaging data

Package width
650 mm
Package depth
500 mm
Package volume
305825 cm³
Package weight
42 kg

Logistics data

UK Trade Tariff code
94032080
Country of origin
Turkey
Harmonized System (HS) code
85381000
