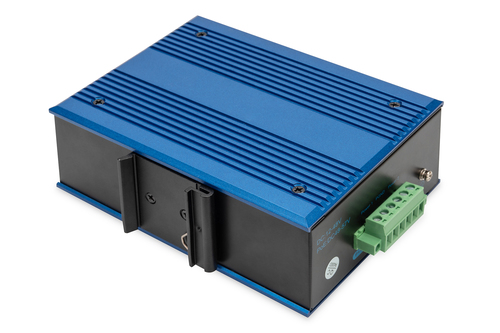

Digitus 8 port Fast Ethernet network switch, industrial, unmanaged, 1 SFP uplink

The DN-651132 is an 8+1 port Ethernet switch suitable for industrial applications (IP40) that offers interference-free data transfer performance in harsh industrial environments.

- The use of a high-quality photoelectric integration module ensures good transmission rates for optical and electrical connections.
- Ensures reliable data transmission
- Supports full-duplex or half-duplex mode, with automatic negotiation
- Network connection supports automatic cross-identification
- Uses "Store and Forward" technology The switch supports a variety of protocols
- complies with industrial operating standards
- Operating voltage: DC 12-48V
- Lightning surge protection (power): 5000A(8/20μs)

DN-651132 is an industrial Fast Ethernet switch with 8 port 10/100Mbps RJ45 +1 port 100Mbps base-FX. The industrial switch has the operating temperature of -40℃ ~ 80℃, is ruggedized and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651132 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices.

ON ORDER

SKU: DN-651132

Manufacturer: Digitus Digitus

RRP Price €102.33

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
8
SFP module slots quantity
1
Uplink ports quantity
1

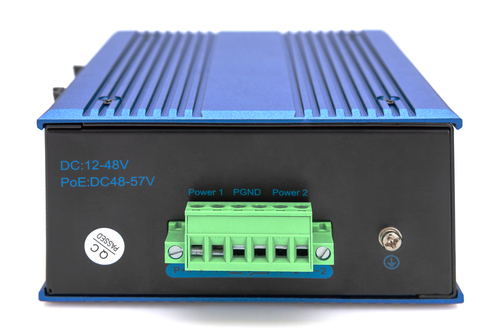

Power connector
Terminal block (6-pin)

Network

Networking standards
IEEE 802.3, IEEE 802.3u
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-FX, 100BASE-TX
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100 Mbit/s
VLAN support
No

Data transmission

Switching capacity
0.1 Gbit/s
Forwarding rate
1.4 Mpps
MAC address table
4000 entries
Packet buffer memory
1.25 MB

Design

Rack mounting
No
Stackable
No
Product colour
Black, Blue
Housing material
Aluminium
LED indicators
Yes
International Protection (IP) code
IP40

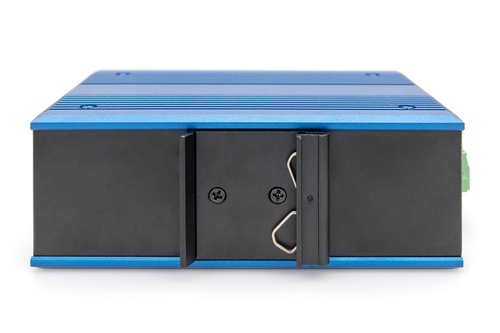

DIN rail mounting
Yes
Vandal-proof
No
Suitable for outdoor use
No

Power

Power source
DC
DC input voltage
12 - 52 V
Power consumption (typical)
3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Other features

Bandwidth
1.8 Gbit/s
Ethernet interface type
Fast Ethernet

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
143.7 mm
Depth
103 mm
Height
44.2 mm
Weight
560 g

Packaging content

Manual
Yes

Packaging data

Package width
158 mm
Package depth
66 mm
Package height
213 mm
Package volume
2221.16 cm³
Package weight
917.857 g

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
