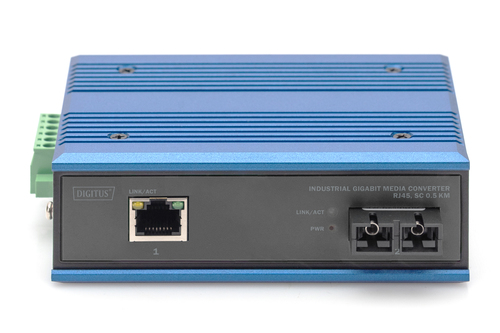

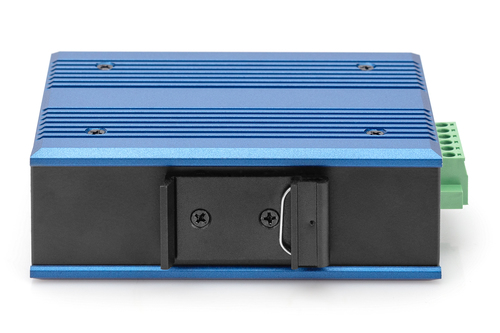

Digitus Industrial Gigabit Media Converter RJ45, SC 0.5km

Industrial Gigabit Ethernet Media Converter, MM SC connector, 850nm, up to 500m The perfect converter solution for optical data transmission

- Converts wire-based network signals into fiber optic signals
- High quality and the highest reliability
- 10/100/1000Base-TX to 1000Base-SX
- Ports: 1x RJ45, 1x SC duplex
- Range of up to 500m
- Wavelength: 850nm
- Multimode dual fiber
- Automatic cable detection - Auto MDI / MDI-X function
- Diagnostic LEDs for status and activity monitoring
- Suitable for 50/125μm and 62.5/125μm fiber optic cables (multimode)
- Compact, robust metal housing
- Excellent short circuit protection

The media converters from DIGITUS® are an optimal solution for the migration of copper and fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.

ON ORDER

SKU: DN-652101-1

Manufacturer: Digitus Digitus

RRP Price €87.68

Specifications

Network

Maximum data transfer rate
1000 Mbit/s
Converter input interface
10Base-T, 100Base-T, 1000Base-T
Converter output interface
1000Base-SX
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Copper ethernet cabling technology
10BASE-T, 100BASE-T, 1000BASE-T
Fiber ethernet cabling technology
1000BASE‑SX
Data transfer rate
1000 Mbit/s
Auto MDI/MDI-X
Yes

Performance

Maximum transfer distance
500 m
Wavelength
850 nm
Fiber mode structure
Multi-mode
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm

Features

Internal
No
Digital Diagnostics Monitoring (DDM)
No
LED indicators
Activity, Status
Product colour
Black, Blue
Housing material
Metal
International Protection (IP) code
IP40
DIN rail mounting
Yes

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
2
Fiber optic connector
SC

Power

Input voltage
12 - 48 V
Power consumption (typical)
3 W
Power over Ethernet (PoE)
No

Weight & dimensions

Width
118 mm
Depth
92.4 mm
Height
40 mm

Operational conditions

Operating temperature (T-T)
-40 - 80 °C

Packaging content

Quick installation guide
Yes

Packaging data

Package width
135 mm
Package depth
54 mm
Package height
165 mm
Package volume
1202.85 cm³
Package weight
558.333 g

Logistics data

Country of origin
China
UK Trade Tariff code
85176200
