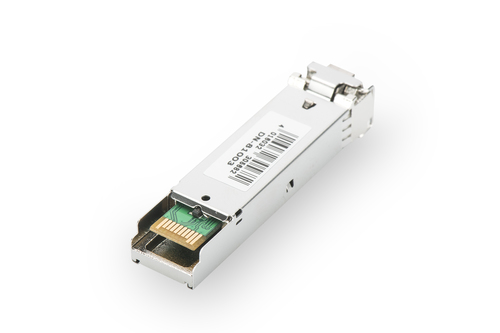

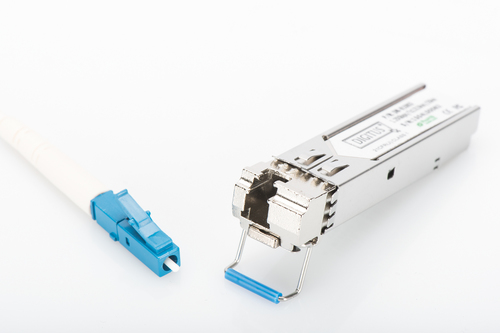

Digitus mini GBIC (SFP) Module, 1.25 Gbps, 20km

The plug and play fiber connection

- The Plug & Play fiber optic link enables quick installation
- Sends data in high quality and additionally provides excellent reliability
- Distance up to 20 km at a maximum data rate of 1.25Gbps
- Operating temperature: 0 °C ~ 70 °C

The DIGITUS® mini GBIC (SFP) transceiver modules offer highest quality and reliability. Wether from switch to switch, converter to switch, converter to converter or any else application: The wide product range of DIGITUS® modules makes possible a flexible usage of the fiber technology. The conformity to the MSA (Multi Source Agreement) standard ensures a compatibility to third party manufacturers.

ON ORDER

SKU: DN-81003

Manufacturer: Digitus Digitus

RRP Price €17.59

Specifications

Performance

Maximum data transfer rate
1250 Mbit/s
Interface type
mini-GBIC
Single-mode fiber (SMF) supported
Yes
Fiber optic connector
LC
SFP transceiver standard
LX, TX
Maximum transfer distance
20000 m
Wavelength
1310 nm
Tx wavelength (max)
1310 nm
Rx wavelength (max)
1550 nm
Ethernet interface type
Gigabit Ethernet
Networking standards
IEEE 802.3z
Digital Diagnostics Monitoring (DDM)
No

Features

Brand compatibility
MSA Compliant

Power

Input voltage
3.3 V

Certificates

Certification
EN 60825-1

Packaging data

Package width
115 mm
Package depth
30 mm
Package volume
310.5 cm³
Package weight
35.417 g

Logistics data

UK Trade Tariff code
85176200
Harmonized System (HS) code
85369010
Country of origin
China
