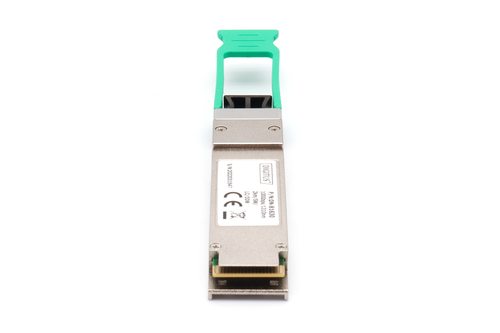

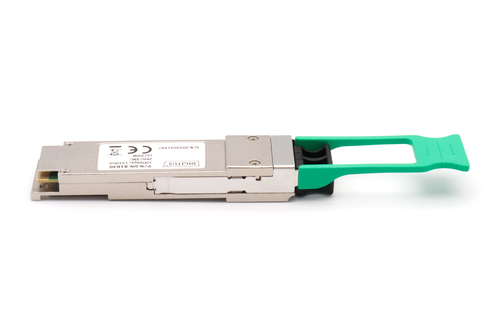

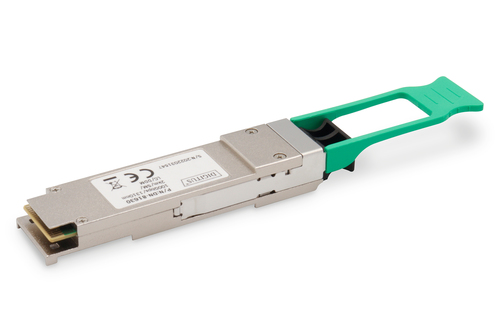

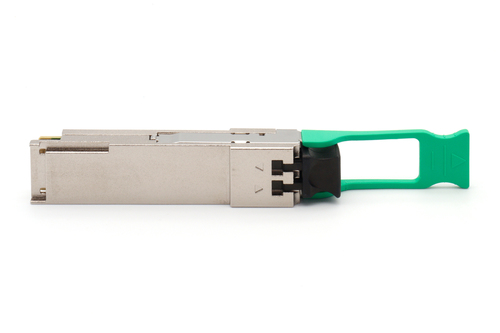

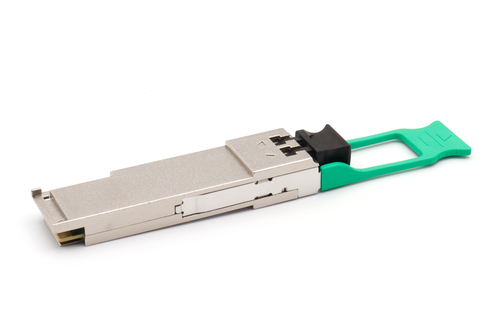

Digitus 100Gbs QSFP28 SR4 Optical Transceiver

- Four-channel full-duplex transceiver modules
- Transmission data rate up to 26Gbit/s per channel
- Up to 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF
- Low power consumption <3.5W
- Operating case temperature 0°C to +70°C
- 3.3V power supply voltage
- RoHS 6 compliant
- Hot Pluggable QSFP form factor
- Integrated digital diagnostic function

The Digitus DN-81630 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP28 Transceiver for IEEE 802.3bm, 100GBASE SR4 Applications,or 40 Gigabit Ethernet and Infiniband FDR/EDR Applications. The QSFP28 full-duplex optical module offers 4 independent transmit and receive channels, each capable of 26Gbps operation for an aggregate data rate of 104Gbps 70m using OM3 fiber. These modules are designed to operate over multimode fiber systems using 850nm VCSEL laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP28 SR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.

ON ORDER

SKU: DN-81630

Manufacturer: Digitus Digitus

RRP Price €349.52

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
100000 Mbit/s
Interface type
QSFP28
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
QSFP28
SFP transceiver standard
SR4
Maximum transfer distance
100 m
Wavelength
850 nm
Fiber ethernet cabling technology
100GBASE
Duplex system
Full
Digital Diagnostics Monitoring (DDM)
No

Features

Product colour
Nickel
Plug and Play
Yes
Hot-Plug support
Yes
Compatible products
Allied Telesis, Allnet, Avaya, CISCO, D-Link, Edimax, FINISAR, FORCE 10, Gigamon Intellinet, KTI Networks, Level One, PLANET, Tenda, TP-Link, TRENDnet, Mikrotik , ENTERASYS, RIVERSTONE , Unifi, Ubiquiti, ZyXEL, ZTE

Power

Input voltage
3.3 V
Power consumption (typical)
3.5 W

Certificates

Compliance certificates
RoHS

Operational conditions

Operating temperature (T-T)
0 - 70 °C

Weight & dimensions

Width
120 mm
Depth
18.4 mm
Height
8.5 mm
Weight
40 g

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
100 mm
Package depth
900 mm
Package height
29 mm
Package volume
2610 cm³
Package weight
69.167 g

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
