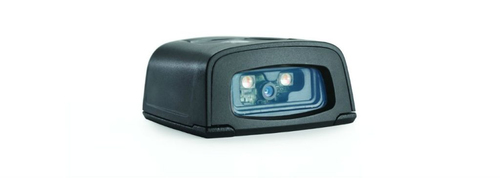

Zebra DS457-DL20004ZZWW barcode reader Fixed bar code reader 1D/2D Laser Black

Next-Generation Fixed Mount Imager

Somewhere, a flight is sold out at a busy airport, and to stay on schedule the passengers must board quickly. The checkout line is growing at a popular boutique and the customers are not happy. An engineer struggles to add direct part marking into his space-constrained product design.

The Zebra DS457 Fixed Mount Scanner Series can help, delivering fast, high-volume hands-free scanning of virtually any barcode— including 1D, 2D and direct part marks (DPM). No matter what type of barcode is presented, or whether it is printed on paper, etched into a product or displayed on a mobile phone screen, the DS457 Series provides fast, accurate scanning in a tiny footprint that fits in the most space-constrained areas.

ON ORDER

SKU: DS457-DL20004ZZWW

Manufacturer: Zebra Zebra

RRP Price €456.97

Specifications

Scanning

Type
Fixed bar code reader
Scanner type
1D/2D
Sensor type
Laser
Linear (1D) barcodes supported
Code 128
2D (matrix & stacked) barcodes supported
Aztec Code, Data Matrix, MaxiCode, PDF417, QR Code
Wavelength
625 nm

Ports & interfaces

Connectivity technology
Wired
Standard interfaces
RS-232, USB

Performance

Product colour
Black
Certification
FCC

Power

Power source type
DC
Input voltage
5 V
Power consumption
450 mA

Weight & dimensions

Width
62 mm
Depth
58.4 mm
Height
29.2 mm
Weight
111 g

Operational conditions

Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 70 °C

Technical details

Compliance certificates
RoHS

Logistics data

Harmonized System (HS) code
84716070

Accessories

License
