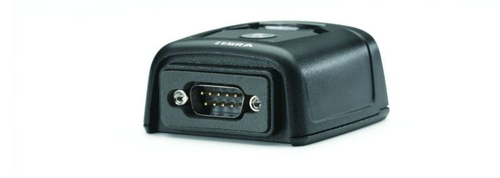

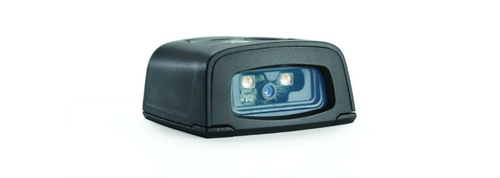

Zebra DS457-HD Fixed bar code reader 1D/2D Photo diode Black

SLEEK AND FLEXIBLE
Enable high-volume hands-free scanning from the retail POS and airport boarding gate to the manufacturing production line with the Zebra DS457.

ON ORDER

SKU: DS457-HDER20004

Manufacturer: Zebra Zebra

RRP Price €371.07

Specifications

Scanning

Type
Fixed bar code reader
Scanner type
1D/2D
Sensor type
Photo diode
Linear (1D) barcodes supported
Code 39, Planet, POSTNET, U.P.C., UPC-A, UPC-E
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, MaxiCode, PDF417, QR Code
Optical sensor resolution (W x H)
752 x 480 pixels
Light levels (direct sunlight)
0 - 96900 lx
Wavelength
655 nm

Ports & interfaces

Connectivity technology
Wired
Standard interfaces
RS-232, USB

Performance

International Protection (IP) code
IP54
Built-in processor
Yes
Processor frequency
624 MHz
Product colour
Black

Power

Power source type
RS-232, USB
Input voltage
5 V

Weight & dimensions

Width
62 mm
Depth
58.4 mm
Height
29.2 mm
Weight
111 g

Operational conditions

Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 85%

Logistics data

Harmonized System (HS) code
84716070
