Eaton EMAH06 power distribution unit (PDU) 16 AC outlet(s) 2U Black

Name: Eaton EMAH06 power distribution unit (PDU) 16 AC outlet(s) 2U Black
Brand: Eaton
SKU: EMAH06
Price: 1328.55 EUR
Availability: OutOfStock

Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDU
ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.

ON ORDER

SKU: EMAH06

Manufacturer: Eaton Eaton

RRP Price €1,328.55

Specifications

Design

PDU types

Managed

Type

Single-phase

Form factor

Rackmount

Rack mounting

Yes

Rack capacity

Mounting

Horizontal

Product colour

Black

Cable colour

Black

Display

LCD

Ports & interfaces

AC outlets quantity

16 AC outlet(s)

Power plug

IEC 60309

AC outlet types

C13 coupler, C19 coupler

Serial ports quantity

Ethernet LAN (RJ-45) ports

Output connections

12 x C13 & 4 x C19

Features

LED indicators

Yes

Cable length

3 m

Management features

Management protocols

SNMP, Telnet

Firmware upgradeable

Yes

Firmware upgradeable via

Network, USB

Power

Nominal input voltage

230 V

AC input frequency

50 Hz

Maximum current

32 A

Nominal output voltage

230 V

Maximum input current per phase

32 A

Maximum power

7400 W

Certificates

Compliance certificates

RoHS

Operational conditions

Operating temperature (T-T)

0 - 60 °C

Weight & dimensions

Width

225 mm

Depth

87 mm

Height

445 mm

Weight

5.6 kg

Packaging content

Cables included

LAN (RJ-45)

Rack mount kit

Yes

Packaging data

Package weight

7.8 kg

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

5.6 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!

Related Products

Eaton 9SX 5000I uninterruptible power supply (UPS) Line-Interactive UPS

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.

€2,822.52

Eaton Ellipse ECO 500 DIN uninterruptible power supply (UPS) Standby (Offline) 0.5 kVA 300 W 4 AC outlet(s) UPS

The Eaton Ellipse ECO is a slim-line power protection with built-in high performance surge-protection device (compliant with IEC 61643-1 standard). With an efficient electrical design and the EcoControl function (USB models) the Eaton Ellipse ECO helps you make energy savings of up to 25 per cent compared to previous-generation UPSs.

€91.93

Eaton Ellipse ECO 800 USB DIN uninterruptible power supply (UPS) Standby (Offline) 0.8 kVA 500 W 4 AC outlet(s) UPS

€146.15

VW00K UPS

€2,458.13

Eaton 93PX uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W UPS

Eaton 93PX 20 kW RT9U Netpack. Includes 15 kW PM, 1 set of EBM, Network card and rail kits.

€10,354.81

Eaton 9PX2200IRTBPF uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 2200 W 5 AC outlet(s) UPS

€1,803.42

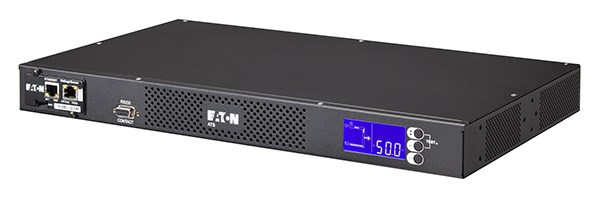

Eaton ATS16N uninterruptible power supply (UPS) 9 AC outlet(s) UPS
