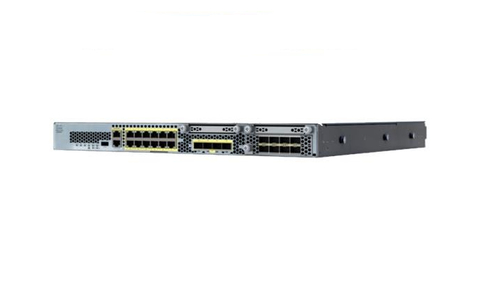

Cisco Firepower 2140 ASA hardware firewall 1U 20 Gbit/s

The Cisco Firepower 2100 Series is a family of four threat-focused NGFW security platforms that deliver business resiliency through superior threat defense. It offers exceptional sustained performance when advanced threat functions are enabled. These platforms uniquely incorporate an innovative dual multicore CPU architecture that optimizes firewall, cryptographic, and threat inspection functions simultaneously. The series’ firewall throughput range addresses use cases from the Internet edge to the data center. Network Equipment Building Standards (NEBS)- compliance is supported by the Cisco Firepower 2100 Series platform.

ON ORDER

SKU: FPR2140-ASA-K9

Manufacturer: Cisco Cisco

RRP Price €114,525.90

Specifications

Data transmission

Firewall throughput
20 Gbit/s
VPN throughput
2 Gbit/s
Maximum firewall connections per second
75000

Performance

Concurrent connections
3000000
Noise level
56 dB

Network

Maximum Number of VPN connections supported
10000
Number of VLANs
1024

Ports & interfaces

Connectivity technology
Wired
USB 2.0 ports quantity
1
Ethernet LAN (RJ-45) ports
12
Ethernet LAN data rates
10,100,1000 Mbit/s
Serial ports quantity
1
SFP+ module slots quantity
4

Storage

Number of HDDs installed
1
Total storage capacity
200 GB

Design

Rack mounting
Yes
Form factor
1U

Power

AC input voltage
100-240 V
AC input frequency
50 - 60 Hz
Input current
6 A
Power supply
400 W
Number of power supply units
2

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 65 °C
Operating relative humidity (H-H)
10 - 85%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 12192 m

Weight & dimensions

Dimensions (WxDxH)
429 x 502 x 44 mm
Weight
9.53 kg

Other features

Firewall throughput
20000 Mbit/s
VPN throughput
2000 Mbit/s

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
