Cisco GLC-ZX-SM-RGD= network media converter 1550 nm

Name: Cisco GLC-ZX-SM-RGD= network media converter 1550 nm
Brand: Cisco
SKU: GLC-ZX-SM-RGD=
Price: 7527.28 EUR
Availability: OutOfStock

The industry-standard Cisco® Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of Cisco products and can be intermixed in combinations of 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.

1000BASE-ZX SFP for Long-Reach Single-Mode Fibers
The 1000BASE-ZX SFP operates on standard single-mode fiber-optic link spans of up to approximately 70 km in length. The SFP provides an optical link budget of 23 dB, but the precise link span length depends on multiple factors such as fiber quality, number of splices, and connectors.
When shorter distances of single-mode fiber (SMF) are used, it might be necessary to insert an inline optical attenuator in the link to avoid overloading the receiver. A 10-dB inline optical attenuator should be inserted between the fiber-optic cable plant and the receiving port on the SFP at each end of the link whenever the fiber-optic cable span loss is less than 8 dB.

ON ORDER

SKU: GLC-ZX-SM-RGD=

Manufacturer: Cisco Cisco

RRP Price €7,527.28

Specifications

Network

Cabling technology

1000BASE-ZX

Performance

Maximum transfer distance

70000 m

Wavelength

1550 nm

Features

Plug and Play

Yes

Ports & interfaces

Connectivity technology

Wired

Operational conditions

Operating temperature (T-T)

-40 - 85 °C

Certificates

Safety

Laser Class I 21CFR1040 LN#50 7/2001, Laser Class I IEC 60825-1

Logistics data

Harmonized System (HS) code

85176990

Other features

Interface

SFP

Connector(s)

LC/PC

Fiber type

SMF

Description

Manufacturer

Cisco

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

N/A

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!

Related Products

EXM-MINI-2SFP Modules

€0.00

C9600X-SUP-2= Modules

€21,832.27

Cisco SFP-OC12-LR2 network transceiver module Fiber optic 1550 nm Modules

The Cisco industry-standard Small Form-Factor Pluggable Interface Converter (SFP) for packet-over-SONET/SDH (POS), optical networking, and ATM applications are hot-swappable optical interfaces that plug into a variety of ports on Cisco router interfaces. These SFP optics support OC-3, OC-12, and OC-48 data rates for multimode, short-reach, intermediate-reach, and long-reach applications.

€1,288.37

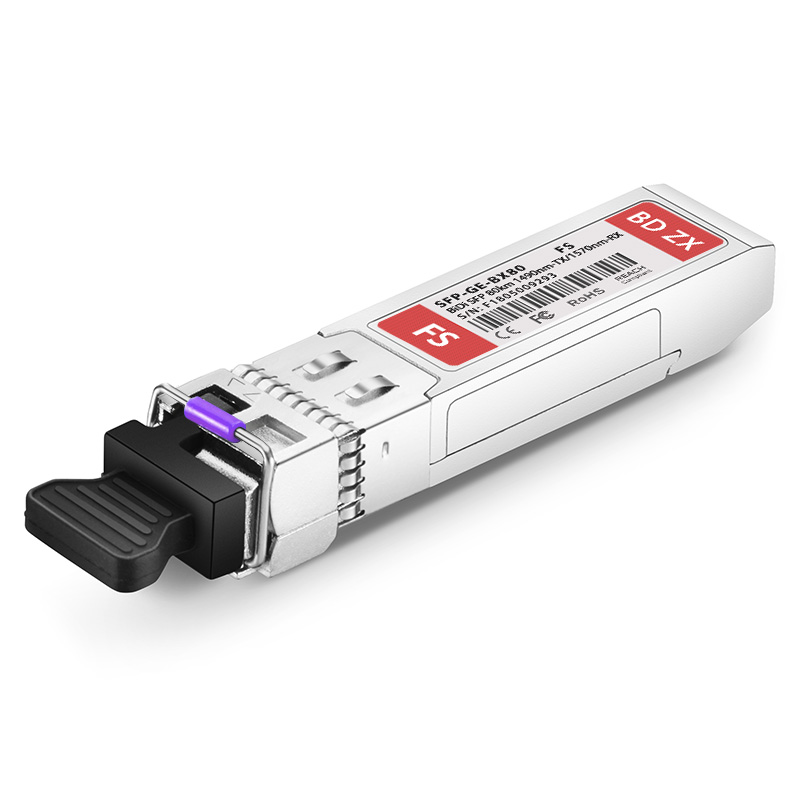

1000BASE-BX SFP 1490NM-TX/1570NM-RX 80KM MODULE, CISCO COMPATIBLE Modules

1000BASE-BX SFP 1490NM-TX/1570NM-RX 80KM MODULE, CISCO COMPATIBLE

€310.80

CUSTOMIZED COMPATIBLE 2G FIBRE CHANNEL SFP 1310NM 10KM INDUSTRIAL DOM TRANSCEIVER Modules

CUSTOMIZED COMPATIBLE 2G FIBRE CHANNEL SFP 1310NM 10KM INDUSTRIAL DOM TRANSCEIVER

€145.20

CUSTOMIZED CFP 100GBASE-LR4 AND OTN 1310NM 10KM DOM LC SMF OPTICAL TRANSCEIVER MODULE Modules

CUSTOMIZED CFP 100GBASE-LR4 AND OTN 1310NM 10KM DOM LC SMF OPTICAL TRANSCEIVER MODULE

€7,434.00

400GBASE-ER8 QSFP-DD 1310NM 40KM MODULE, CISCO COMPATIBLE Modules

400GBASE-ER8 QSFP-DD 1310NM 40KM MODULE, CISCO COMPATIBLE

€16,789.20

400GBASE-LR4 QSFP-DD 1310NM 10KM MODULE, CISCO COMPATIBLE Modules

400GBASE-LR4 QSFP-DD 1310NM 10KM MODULE, CISCO COMPATIBLE

€3,596.40

100GBASE-FR QSFP28 1310NM 2KM MODULE, CISCO COMPATIBLE Modules

100GBASE-FR QSFP28 1310NM 2KM MODULE, CISCO COMPATIBLE

€814.80

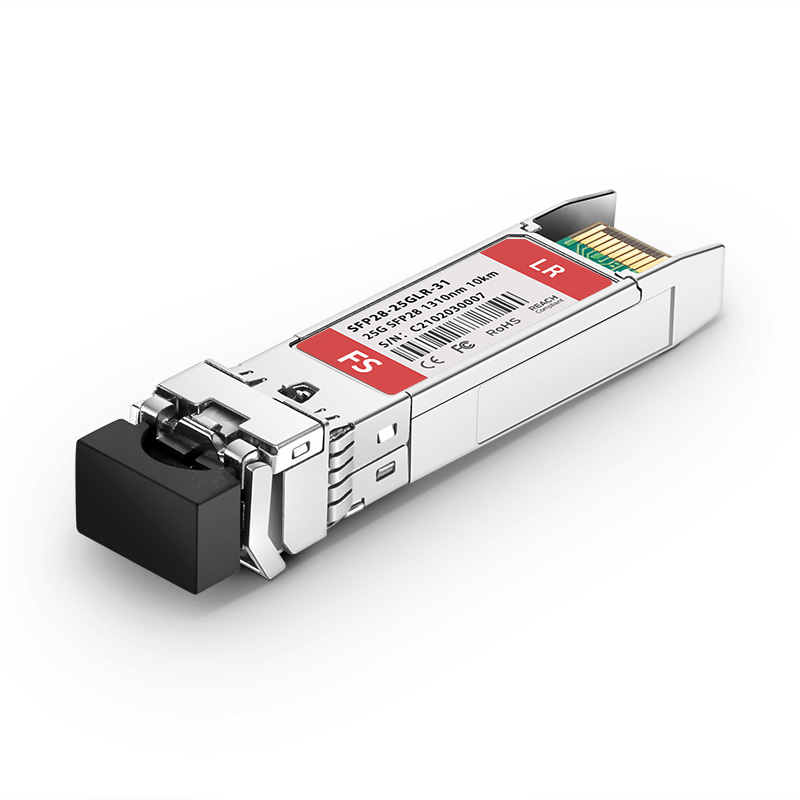

CISCO SFP-25G-LR-S COMPATIBLE 25GBASE-LR SFP28 1310NM 10KM DOM DUPLEX LC SMF OPTICAL TRANSCEIVER MODULE Modules
