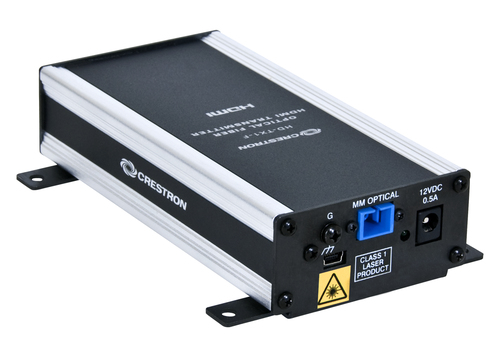

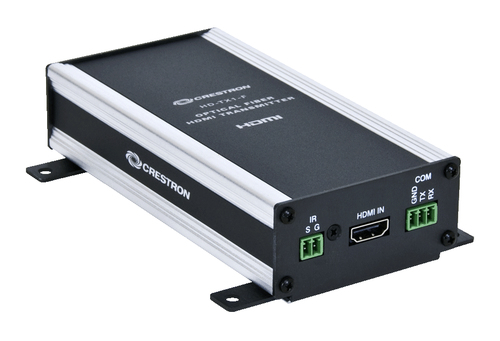

Crestron HD-TX1-F network extender Network transmitter Black, Grey

Works with the HD-RX1-F HDMI® over Fiber Receiver to provide a simple, reliable solution for extending uncompressed HDMI and control signals up to 1000 feet (300 m) over a single fiber optic cable.

Crestron® HDMI® over Fiber Transmitters and Receivers deliver professional-grade digital HD AV signal extension for use in the home, classroom, auditorium, or corporate boardroom. Without any special setup or configuration, the HD-TX1-F transmitter works with an HD-RX1-F receiver ^[1] to enable wire runs up to 1000 feet (300 m) over a single multimode fiber strand ^[2]. The use of fiber not only facilitates long wire runs, but is also ideal for wiring to outdoor devices and between buildings, providing optical isolation against ground loops, lightning surges, and other electrical disturbances. The HD-TX1-F simultaneously handles high-definition digital video and audio, RS-232, and IR signals.

Robust HD Signal Extension
Crestron HDMI over Fiber technology delivers ultra-reliable extension of uncompressed video and computer signals. The HD-TX1-F handles video resolutions up to Full HD 1080p60, and computer resolutions up to UXGA and WUXGA, with support for HDCP and Deep Color. Audio capabilities include support for Dolby Digital®, DTS®, and uncompressed 7.1 linear PCM. In addition to HDMI, the HD-TX1-F is also compatible with DVI and Dual-Mode DisplayPort sources using an appropriate adapter or interface cable ^[3].

...And Control Too!
In addition to video and audio, the HD-TX1-F provides for the extension of control signals for a true one-wire AV interface solution. Both IR and bidirectional RS-232 control signals may be routed using the HD-TX1-F to control a display device or other equipment.

Comprehensive without Complication
Crestron HDMI over Fiber affords a very dependable signal extension solution that's simple to implement. No special configuration or programming is required — just connect your source and display and enjoy high-quality HD video and audio from across the room — or from another entire building. The HD-TX1-F is housed in an attractive, compact enclosure, with provisions for mounting to any flat surface, or to one rail of a 19" EIA equipment rack.

Crestron offers the fiber optic cable, connectors, and termination kit for a complete, easy wiring solution. A range of professional AV interface cables and wall plates is also available to complement the HD-TX1-F for a total custom installation solution.^[1]

1 Item(s) sold separately.
2 For MM OPTICAL fiber wiring, use CresFiber 8G or other quality 50/125 or 62.5/125 µm multimode fiber optic cable. To achieve maximum distance, the cable should be rated for at least 500 MHz*km effective modal bandwidth (EMB) at both 850 nm and 1300 nm.
3 HDMI requires an appropriate adapter or interface cable to accommodate a DVI or Dual-Mode DisplayPort signal. CBL-HD-DVI interface cables are available separately.
