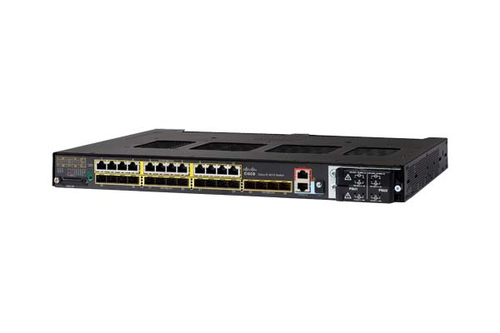

Cisco IE-4010-4S24P network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Cisco® Industrial Ethernet (IE) 4010 Series Switches with 28 Gigabit Ethernet interfaces are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The 4010 delivers comprehensive Cisco IOS® Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.

The 4010 has a comprehensive software feature set, developed from manufacturing, utility, and enterprise switching products making it excellent for extended temperature range locations, such as smart buildings, utility, process control, intelligent transportation systems (ITS), and city surveillance programs. The 4010 complements the existing Cisco IE 2000, IE 2000U, IE 3000, IE 3010, IE 4000, and IE 5000 Series Switching families, as well as the Cisco CGS 2520 Switch.

The 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.

ON ORDER

SKU: IE-4010-4S24P

Manufacturer: Cisco Cisco

RRP Price €12,457.04

Specifications

Management features

Switch type
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
ARP inspection
Yes
System event log
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
4
Fiber optic connector
SFP
Console port
RJ-45
USB 2.0 ports quantity
1
Compatible memory cards
SD

Network

Networking standards
IEEE 802.3, IEEE 802.3af, IEEE 802.3at
10G support
No
Full duplex
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN

Data transmission

Switching capacity
56 Gbit/s
Throughput
41.67 Mpps
MAC address table
16000 entries
Number of queues
4

Security

DHCP features
DHCP server
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, FIPS 140-2, SNMP, SSH
BPDU filtering/protection
Yes
Authentication
Guest VLAN

Multicast features

Multicast support
Yes

Protocols

Supported network protocols
IPv4, IPv6, VTPv2, NTP, UDLD, CDP, LLDP, HTTP

Design

Rack mounting
Yes
Form factor
1U
Product colour
Black

Performance

Memory type
DRAM
Internal memory
1000 MB
Flash memory
128 MB
Mean time between failures (MTBF)
429620 h

Power

Power consumption (max)
90 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet plus (PoE+) ports quantity
24

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 4206.24 m
Non-operating altitude
0 - 4572 m

Weight & dimensions

Weight
5.46 kg

Certificates

Certification
RoHS, TAA, CE

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
