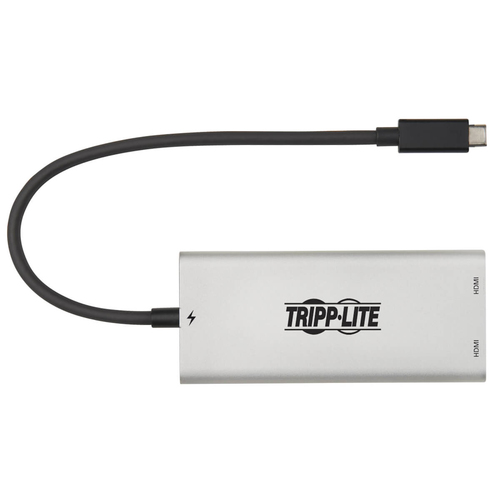

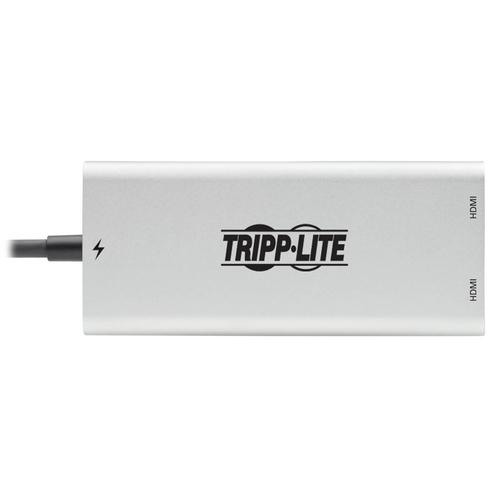

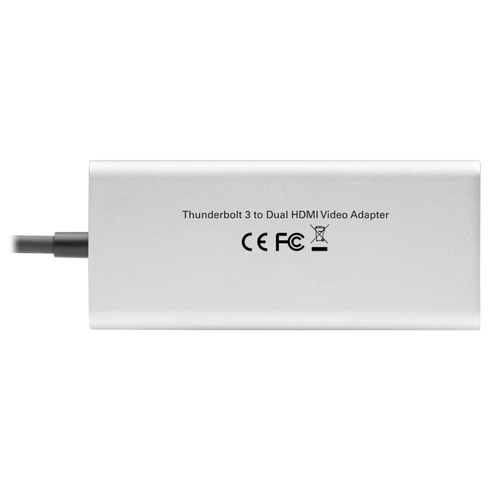

Tripp Lite MTB3-002-HD Dual-Monitor Thunderbolt 3 to HDMI Adapter (M/2xF) - 4K 60 Hz, 4:4:4, Silver

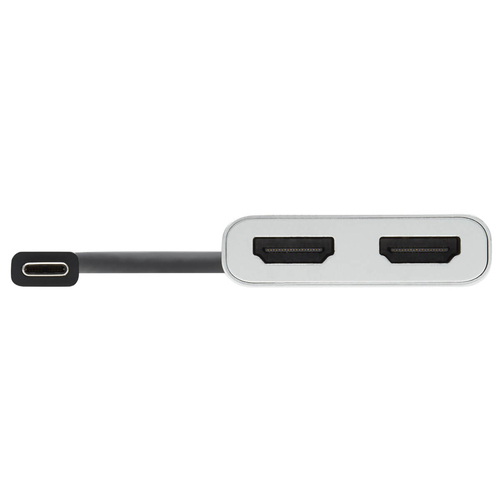

Thunderbolt Adapter Transmits Ultra HD 4K Video to 2 HDMI Monitors at the Same Time
This dual-monitor video adapter (M/2xF) connects the Thunderbolt 3 port on your computer, tablet, laptop, notebook or MacBook to two HDMI monitors simultaneously and delivers 4K video to both.

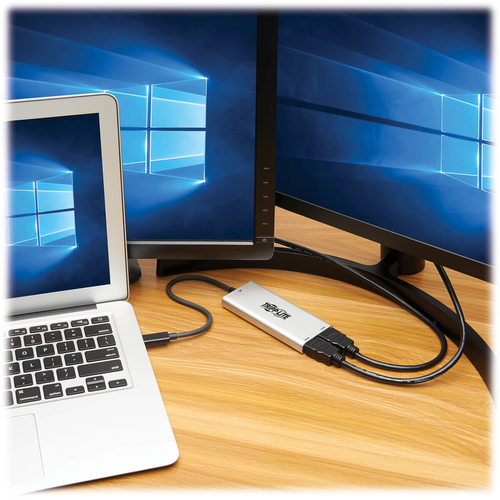

An Ideal Tool for Video Editing or Multitasking at Home or the Office
With this Thunderbolt 3 adapter’s high bandwidth of 40 Gbps, you can more efficiently run applications that demand heavy resources. For instance, editing 4K video is easier with one monitor used for raw video playback and the other displaying your fresh cut. Home/office multitasking is more efficient with two monitors placed side by side on your workstation. And your video presentation or digital signage looks vivid and enticing in stunning 4K.

Enjoy the Clarity of 4K Video with Audio and 4:4:4 Color
This 4K HDMI adapter supports Ultra HD 4K video resolutions up to 3840 x 2160 at 60 Hz for crystal-clear picture and sound on two monitors simultaneously. The MTB3-002-HD is compatible with HDCP 2.2 content protection, 3D video and EDID. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor, as well as 36-bit Deep Color (12 bits per channel).

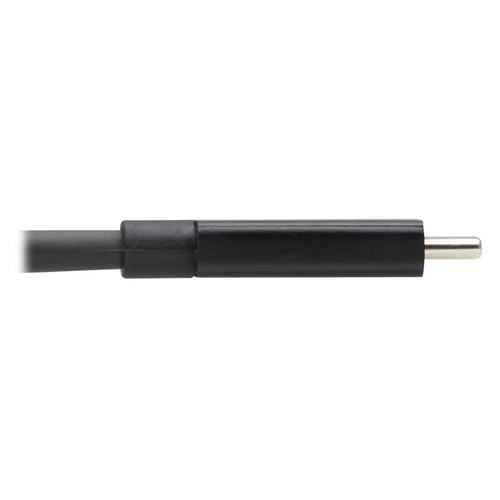

Built-In Thunderbolt 3 Connector Attaches in Either Direction
Unlike traditional USB cables that connect in only one direction, the reversible male connector plugs into a Thunderbolt 3 port in either direction for a fumble-free connection every time. Thunderbolt 3 is eight times faster than USB 3.0 with four times the video bandwidth of HDMI. Note
: This adapter only provides audio/video output when connected to a Thunderbolt 3 port. It will not function if connected to a USB-C port.

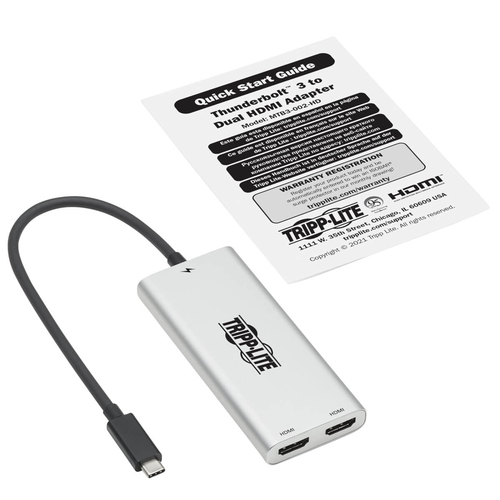

Ready to Use Right from the Package, So You Can Plug and Play Immediately

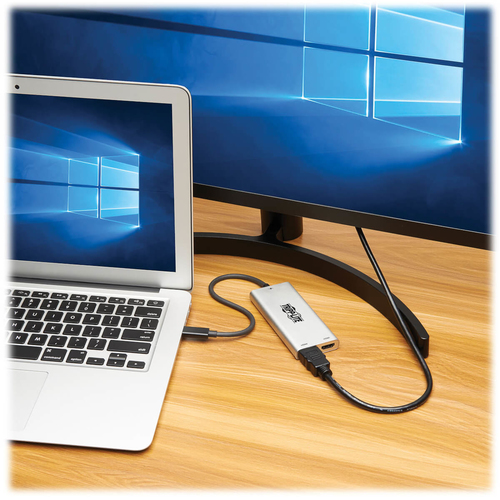

The plug-and-play adapter requires no software or external power. Just connect the built-in cable to the Thunderbolt 3 port on your source device, and use HDMI cables (sold separately) to connect the adapter to your display(s). Because the adapter is backward compatible with non-4K displays, you can use it with 1080p monitors or other available displays. Multi-resolution support ensures both connected displays will work at their highest resolution.

ON ORDER

SKU: MTB3-002-HD

Manufacturer: Eaton Eaton

RRP Price €90.13

Specifications

Performance

USB connector type
USB Type-C
USB connector gender
Male
USB connector form factor
Straight
USB version
Thunderbolt 3
DVI output
No
HDMI output
Yes
DisplayPort output
No
Number of displays supported
2
HDMI ports quantity
2
HDMI version
2.0
HDCP
Yes
Maximum resolution
3840 x 2160 pixels
Supported graphics resolutions
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Supported video modes
720p, 1080p, 2160p
Output colour depth
36 bit
Data transfer rate (max)
40 Gbit/s

Design

Product colour
Grey
Integrated USB cable
Yes

System requirements

Windows operating systems supported
Windows 10
Mac operating systems supported
Yes

Weight & dimensions

USB cable length
0.26 m

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 45 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%

Packaging data

Package width
132.1 mm
Package depth
165.1 mm
Package height
25.4 mm
Package weight
130 g

Logistics data

Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332254839
Master (outer) case width
142.2 mm
Master (outer) case length
256.5 mm
Master (outer) case height
182.9 mm
Master (outer) case gross weight
1.45 kg
Country of origin
Vietnam
