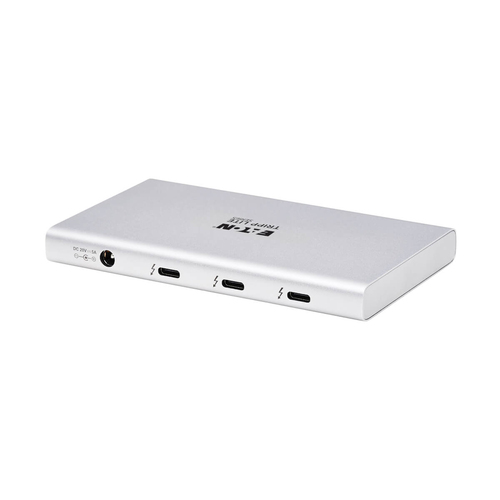

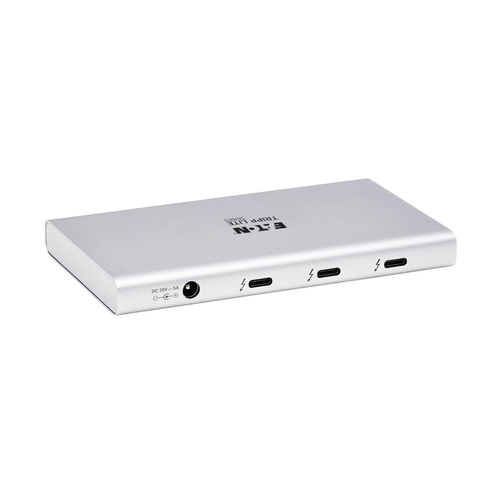

Tripp Lite MTB4-HUB3-01 4-Port Thunderbolt 4 Hub - 8K, 2x 4K 60 Hz, USB 3.2 Gen 2, USB-A Port, 100W Charging, Gray

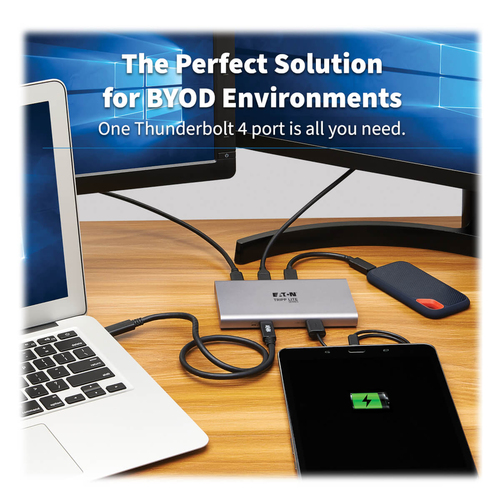

Thunderbolt 4 Hub Turns Your Laptop or Computer into a 4-Port 8K Workstation
versatile MTB4-HUB3-01 dramatically expands the potential of your desktop computer or laptop by adding four ports to its Thunderbolt 4 or Thunderbolt 3 port. It goes further than a USB-C hub, offering three Thunderbolt 4 ports that support 8K video and 40 Gbps data transfer speeds. All three ports are backward compatible with Thunderbolt 3 and USB-C monitors as well. A USB 3.2 Gen 2 port allows speeds up to 10 Gbps.

Thunderbolt 4 Supports Blisteringly Fast 40 Gbps Data Transfer Speeds

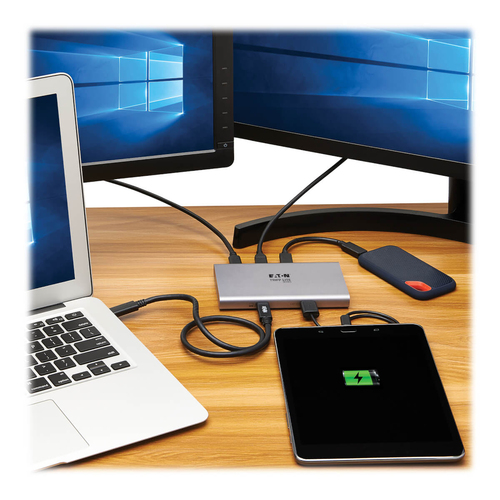

The Thunderbolt 4 hub supports bidirectional speeds up to 40 Gbps, which is eight times faster than USB 3.0, four times faster than Thunderbolt 1 and twice as fast as Thunderbolt 2. With dual 20 Gbps channels moving data both directions at the same time, the MTB4-HUB3-01 is perfectly suited for video playback or Zoom meetings on one monitor and video editing or document sharing on another. Because Thunderbolt 4 supports minimum PCIe (PCI Express) data rates of 32 Gbps (twice that of Thunderbolt 3), transferring large RAW video, Photoshop images or CAD files takes hardly any time at all.

Transmits Crystal-Clear 8K and 4K Video for Professional Editing and Digital Signage

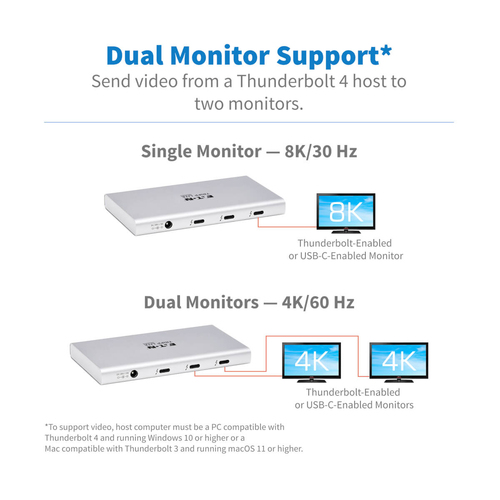

When connected to a Thunderbolt 4 source, the hub supports one 8K monitor (7680 x 4320 at 30 Hz) or two 4K monitors (3840 x 2160 at 60 Hz). With dual monitors, you can display the same image on both, extend your host desktop across them, or combine all screens into one large display as a video wall. The Thunderbolt 4 ports also accept Thunderbolt 3 and USB-C monitors for trade shows and video presentations. Note
: Source device must support DisplayPort 1.3 to achieve 8K resolution.

Cascade up to 6 Levels of Thunderbolt Devices
The MTB4-HUB3-01 acts as the first level in a daisychain installation and can cascade an additional five levels vertically, with many more devices connecting horizontally. The dock supports 40 Gbps Thunderbolt 4 data transmission that is shared among the three Thunderbolt ports and all connected peripherals and displays.

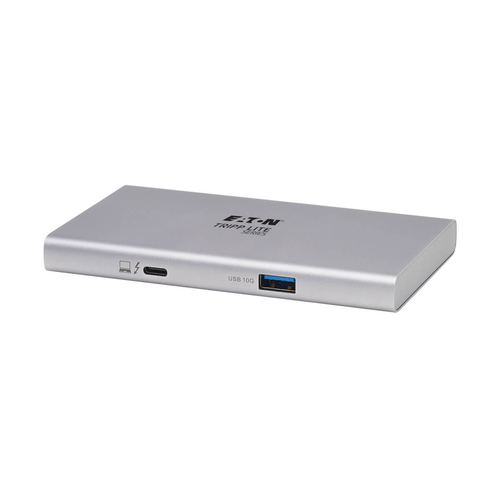

USB Port Connects Thumb Drives and Other USB Peripherals

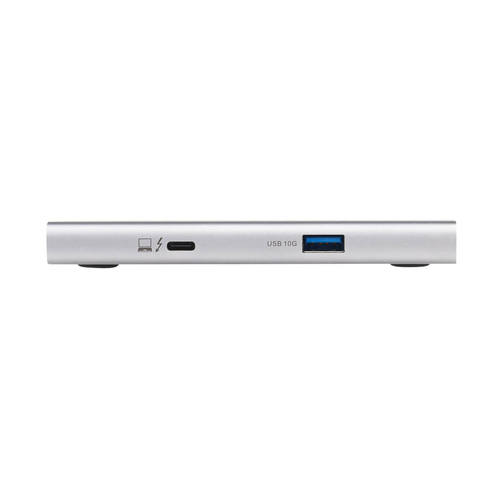

The USB-A hub port supports USB 3.2 Gen 2 speeds up to 10 Gbps, which is twice as fast as USB 3.2 Gen 1. It accepts high-speed USB peripherals, such as external hard drives, giving you access to essential data storage. It also supports downstream charging of mobile devices up to 900mA (0.9A) and is backward compatible with previous USB generations.

Smart Power Function Allocates Power to Connected Devices Efficiently and Safely
The hub features a 20V 5A (100W) power input and can provide 60W to charge the source device, such as a Chromebook, MacBook Pro or iPad Pro. Each Thunderbolt 4 port supports up to 15W downstream charging for connected devices. The USB-A port supports 0.9A. The hub determines how much power is required by each port and allocates the power accordingly. Note
: This hub does not support PD Charging.

Ready to Use Right from the Package, So You Can Plug and Play Immediately
The plug-and-play Thunderbolt 4 hub is specifically designed for Windows devices compatible with Thunderbolt 4 or macOS devices running Thunderbolt 3. It requires no extra software to be downloaded and installed. Simply connect the included Thunderbolt 4 cable to your computer’s Thunderbolt port.

ON ORDER

SKU: MTB4-HUB3-01

Manufacturer: Eaton Eaton

RRP Price €269.07

Specifications

Ports & interfaces

Host interface
Thunderbolt 4
Hub interfaces
Thunderbolt, USB 3.2 Gen 2 (3.1 Gen 2) Type-A
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Thunderbolt ports quantity
4
Ports quantity
4
DC-in jack
Yes

Features

Data transfer rate
40000 Mbit/s
Maximum refresh rate
60 Hz
Supported graphics resolutions
3840 x 2160, 7680 x 4320
Supported video modes
2160p, 4320p
Colour depth
48 bit
3D
Yes
Product colour
Grey
Supported chroma subsampling
4:4:4
Extended mode
Yes
Extended mode details
Extend two 4K (3840 x 2160) @ 60 Hz displays
Mirror mode
Yes
Mirror mode details
Mirror two 4K (3840 x 2160) @ 60 Hz displays
HD type
8K Ultra HD
Number of displays supported
2
Cable length
1.2 m
Plug and Play
Yes
Country of origin
China
Certification
CCC, NOM, PSE, cUL

Power

Power supply type
AC
Input voltage
100 - 240 V
Input current
1.5 A
AC input frequency
50 - 60 Hz
Output voltage
20 V
Output current
5 A

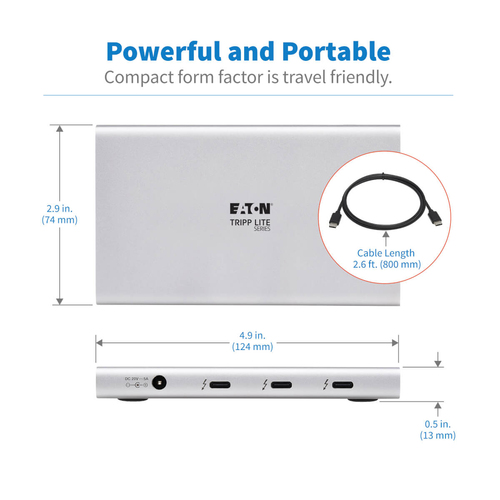

Weight & dimensions

Width
74 mm
Depth
124 mm
Height
13 mm
Weight
170 g

Packaging data

Quantity per pack
1 pc(s)
Package width
220 mm
Package depth
150.1 mm
Package height
87.9 mm
Package weight
1.23 kg

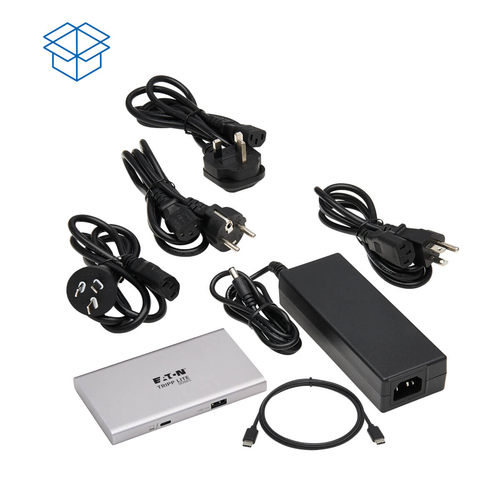

Packaging content

AC adapter included
Yes

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Operating temperature (T-T)
32 - 113 °F
Storage temperature (T-T)
0 - 70 °C
Operating relative humidity (H-H)
0 - 90%

Sustainability

Sustainability compliance
Yes

Logistics data

Master (outer) case width
480.1 mm
Master (outer) case length
355.1 mm
Master (outer) case height
245.1 mm
Master (outer) case gross weight
13.3 kg
Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332263114
Harmonized System (HS) code
8517.62.0090

Technical details

Compliance certificates
CE
