Eaton N286-10G-SR-G network transceiver module Fiber optic 10000 Mbit/s SFP+ 850 nm

Connects a multimode Gigabit Ethernet fiber optic network cable to a router, switch or server’s SFP+ port.

SFP+ Transceiver for Connecting to Your Network Switch or Server
This SFP+ transceiver allows you to connect a multimode fiber optic cable to a 10 Gbps network router, server or switch. It transmits data up to 400 meters (1312 feet) using an 850 nm wavelength and supports bi-directional Gigabit Ethernet communication up to 10 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation.

Hot-Swappable for Installation Without Network Interruption

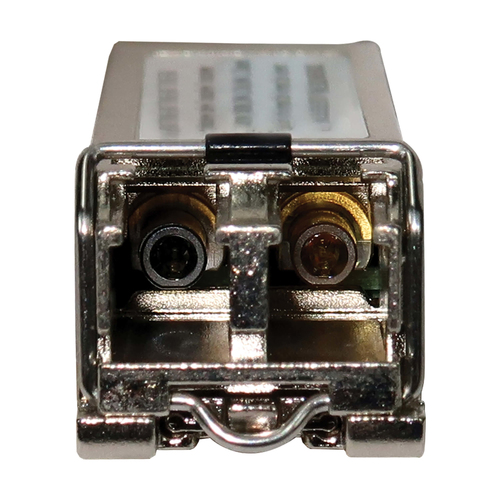

This input/output device is fully hot-swappable, so you can install it without a potentially costly 10 Gbps network shutdown or device reboot. Just plug the SFP+ end of the transceiver into your network device. The other end has an LC duplex connector to link with multimode fiber optic cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.

Functionally Equivalent to SFP-10G-SR Transceiver Modules
The MSA-compliant N286-10G-SR-G functions just like equivalent 10GBase-SR transceiver modules and is manufactured to meet or exceed those specifications. You can use this transceiver with any compatible router, server or switch and receive the same performance as the SFP-10G-SR.

Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.

Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.

ON ORDER

SKU: N286-10G-SR-G

Manufacturer: Eaton Eaton

RRP Price €45.42

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Multi-mode fiber (MMF) supported
Yes
Fiber optic connector
LC
SFP transceiver standard
SR
Maximum transfer distance
400 m
Wavelength
850 nm
Fiber ethernet cabling technology
10GBASE
Digital Diagnostics Monitoring (DDM)
Yes

Features

Product colour
Metallic
Housing material
Zinc
Form factor
SFP+
Plug and Play
Yes
Hot-swap
Yes
Easy to install
Yes
Brand compatibility
Cisco

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS, UKCA
Certification
EN 55032; IEC/EN 63000

Sustainability

Sustainability compliance
Yes

Operational conditions

Minimum operating temperature
0 °C
Maximum operating temperature
70 °C
Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 85%

Weight & dimensions

Weight
50 g

Packaging content

Quantity per pack
1 pc(s)

Accessories
