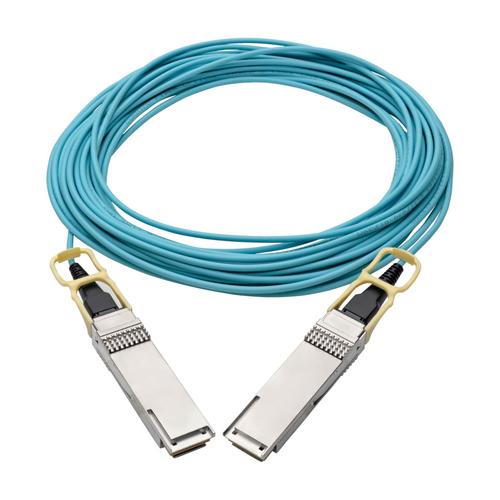

Tripp Lite N28H-10M-AQ QSFP28 to QSFP28 Active Optical Cable - 100GbE, AOC, M/M, Aqua, 10M (32.8 ft.)

QSFP28 Cable Connects Network Equipment at Speeds up to 100 Gbps
This 10-meter (32.8-foot) QSFP28 Active Optical Cable (AOC) provides next-generation performance by combining four full-duplex 25 Gbps SFP channels into one affordable high-density package. Each male connector contains four independent 850 nm VCSEL-based transmitters and four independent receivers using PIN photo detectors inside. Each lane supports data transfer speeds up to 25 Gbps. Together, the N28H-10M-AQ provides an aggregated speed up to 100 Gbps, making it ideal for switches, servers, routers and other high-end networking equipment.

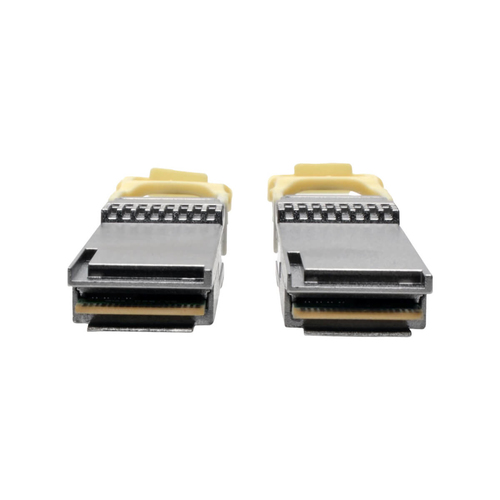

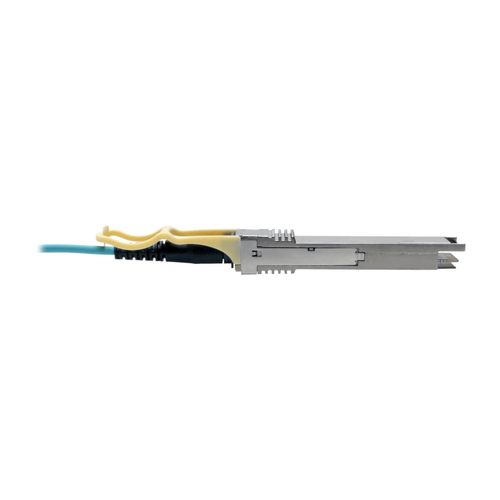

Push/Pull Tab Connectors Provide Quick, Easy Connections
The hot-pluggable QSFP28 connectors include ergonomic push/pull tabs, which are easily accessible in high-density applications and make the cable easy to install and remove with just one hand.

Engineered and Optimized for Bandwidth-Intense Applications
This QSFP28 active optical cable integrates a 100 Gbps Ethernet-optimized 38-position “board as connector” design. Die-cast zinc connectors offer superior EMI (electromagnetic interference) resistance and reduced crosstalk. The connectors have also been tested to meet stringent insertion loss standards. The cable is suitable for high-speed, short-reach dense data connections, such as 100GBASE-SR4 Ethernet, PCIe, Fibre Channel and InfiniBand applications. The plenum-rated OFNP jacket is designed for connecting network components in drop ceiling, walls and ducts.

Fully Compliant and Compatible with the Latest Standards
This cable is fully compliant with the latest QSFP28 Multi-Source Agreement (MSA), IEEE 802.3bm standards and industry-standard SFF-8636 specifications. It is compatible with all QSFP and QSFP+ ports.

ON ORDER

SKU: N28H-10M-AQ

Manufacturer: Eaton Eaton

RRP Price €1,004.48

Specifications

Features

Cable length
10 m
InfiniBand protocol
Yes
Fibre optic type
OM3
Connector 1
QSFP28
Connector 2
QSFP28
Connector 1 gender
Male
Connector 2 gender
Male
Cable type
OFNP
Product colour
Aqua colour
Full duplex
Yes
Core diameter
125 µm
Cladding diameter
50 µm
Fiber mode structure
Multi-mode
Wavelengths supported
850 nm
Ethernet interface type
100 Gigabit Ethernet
Connector material
Ceramic

Certificates

Compliance certificates
RoHS

Weight & dimensions

Cable diameter
2.9 mm

Packaging data

Package width
231.1 mm
Package depth
12.7 mm
Package height
304.8 mm
Package weight
160 g

Packaging content

Quantity per pack
1 pc(s)

Logistics data

Master (outer) case GTIN (EAN/UPC)
10037332225624
Country of origin
China
Master (outer) case width
238.8 mm
Harmonized System (HS) code
8517.79.0000
Master (outer) case length
190.5 mm
Master (outer) case height
124.5 mm
Master (outer) case gross weight
1 kg
Products per master (outer) case
5 pc(s)
