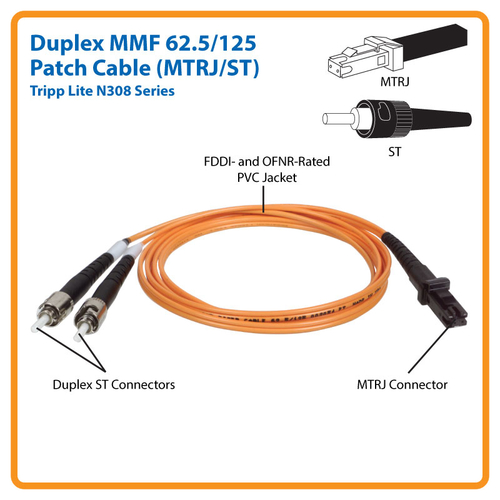

Tripp Lite N308-006 Duplex Multimode 62.5/125 Fiber Patch Cable (MTRJ/ST), 2M (6 ft.)

Name: Tripp Lite N308-006 Duplex Multimode 62.5/125 Fiber Patch Cable (MTRJ/ST), 2M (6 ft.)
Brand: Eaton
SKU: N308-006
Price: 13.49 EUR
Availability: OutOfStock

Manufactured from 62.5/125 duplex (zipcord) fiber
PVC jacket
Length: 6-ft. (1.83 m) Connectors: MTRJ to 2 ST
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
Fiber made from glass (not a polymer)
Color coded shrouds identify transmit and receive
Duplex multimode fiber is most commonly used in LAN applications where links are typically 10-ft. (3.05 m) or less
Fiber optic distributed data interface (FDDI) rated
OFNR (riser rated)

ON ORDER

SKU: N308-006

Manufacturer: Eaton Eaton

RRP Price €13.49

Specifications

Features

Cable length

2 m

Connector 1

MT-RJ

Connector 2

2x ST

Connector 1 gender

Male

Connector 2 gender

Male

Cable type

OFNR

Product colour

Black, Orange

Core diameter

62.5 µm

Cladding diameter

125 µm

Fiber mode structure

Multi-mode

Jacket material

Polyvinyl chloride (PVC)

Certificates

Compliance certificates

RoHS

Packaging data

Package width

177.8 mm

Package depth

12.7 mm

Package height

228.6 mm

Package weight

30 g

Logistics data

Master (outer) case GTIN (EAN/UPC)

10037332042023

Country of origin

China

Master (outer) case width

180.3 mm

Harmonized System (HS) code

8544.70.0000

Master (outer) case length

180.3 mm

Master (outer) case height

99.1 mm

Master (outer) case gross weight

350 g

Products per master (outer) case

10 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.03 kg

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!
