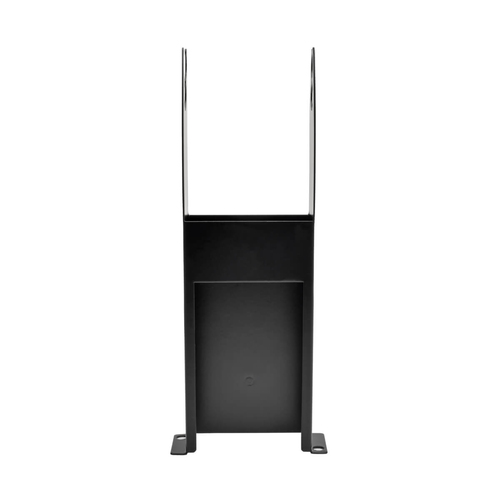

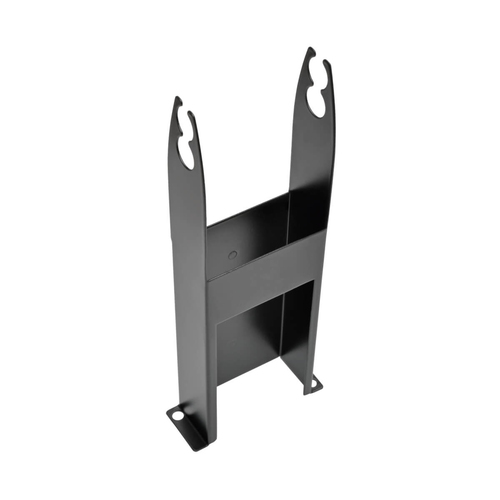

Tripp Lite N482-00U Sleeve Holds 1 High-Density Fiber Cassette, 0U

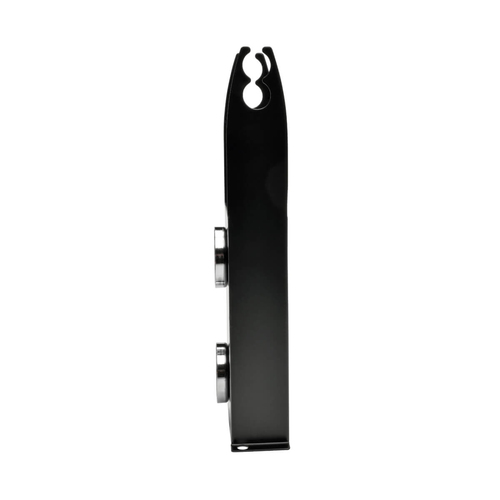

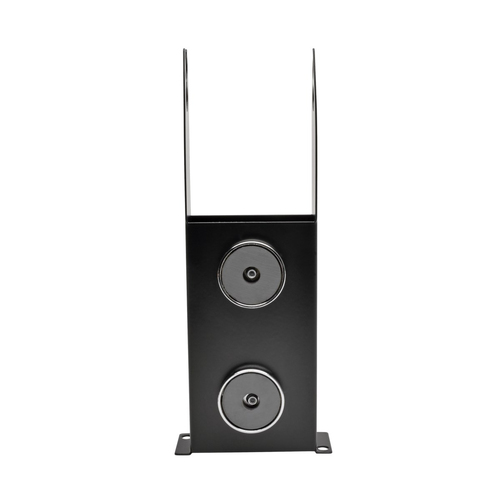

The N482-00U High-Density Fiber Cassette Sleeve is a cost-effective solution for adding a single N482-Series fiber cassette to your network application without buying a chassis. Made of heavy-duty cold-rolled steel, this space-saving 0U sleeve mounts to the metal surface of your EIA-standard 19-inch rack or cable manager via two attached magnets.

The N482-00U is recommended for adding an extra cassette to a rack application without the expense of a new 1U chassis, as well as adding fiber connectivity where no existing rack infrastructure exists, such as a remote workstation, new build-out or temporary install location. It reduces cable clutter by allowing you to connect cables at the cable manager through which they are being routed.

The N482-00U accommodates N482-Series cassettes, including LC and MTP/MPO connector types. It allows you to connect 10 GbE, 40 GbE and 100/120 GbE network equipment with elegance, ease and little cost. The fully passive sleeve adds no heat or cooling load.

ON ORDER

SKU: N482-00U

Manufacturer: Eaton Eaton

RRP Price €83.31

Specifications

Technical details

Product colour
Black
Material
Steel
Rack capacity
0U
Country of origin
China

Operational conditions

Operating temperature (T-T)
-20 - 50 °C

Weight & dimensions

Width
33 mm
Depth
221 mm
Height
89 mm

Packaging data

Package width
116.8 mm
Package depth
264.2 mm
Package height
50.8 mm
Package weight
360 g

Logistics data

Master (outer) case width
269.2 mm
Master (outer) case length
342.9 mm
Master (outer) case height
241.3 mm
Master (outer) case gross weight
4.17 kg
Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332202458
Harmonized System (HS) code
8536.70.0000

Accessories
