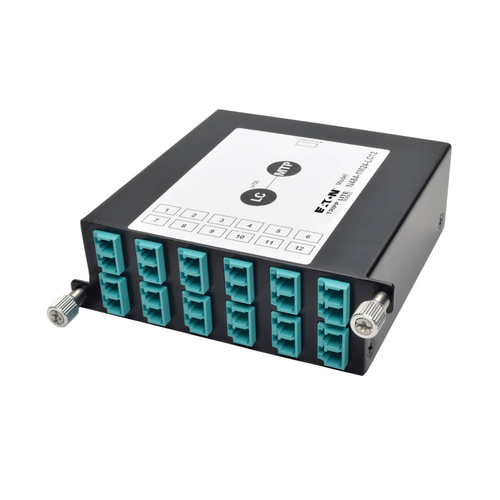

Tripp Lite N484-1M24-LC12 100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex

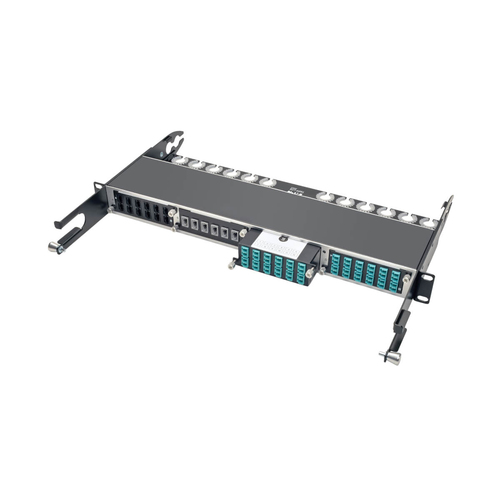

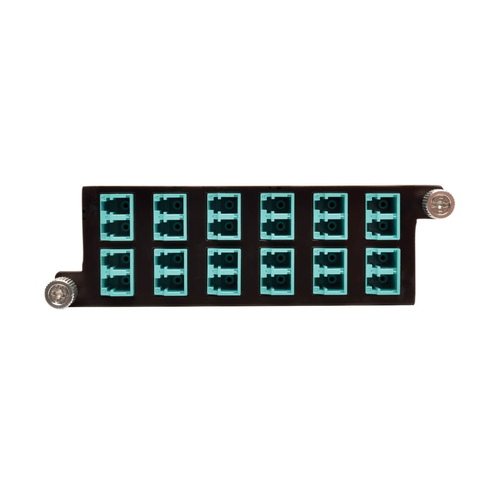

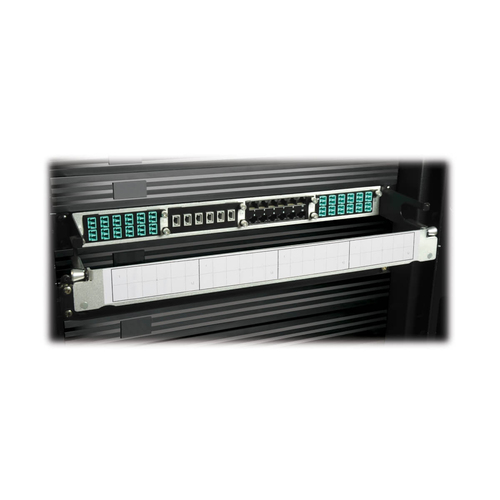

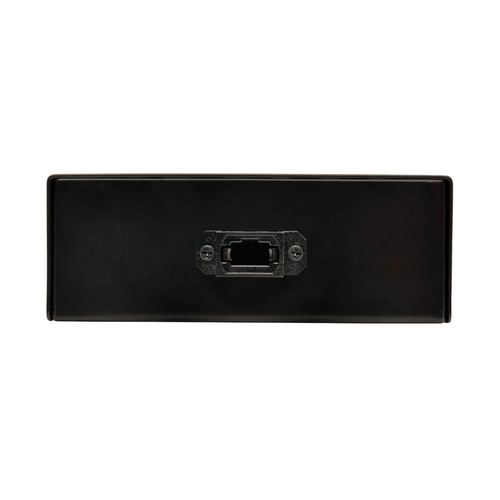

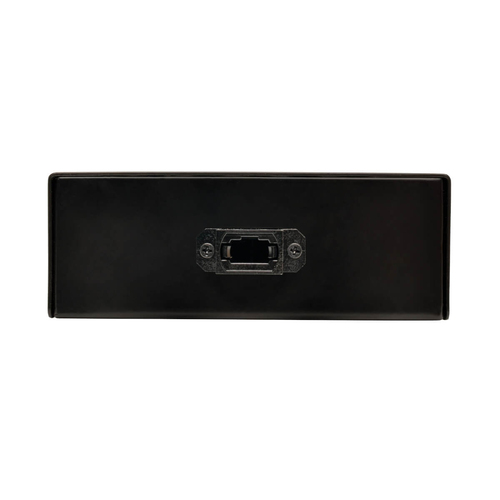

The N484-1M24-LC12 is a high-density 100/120 Gb to 10 Gb Breakout Cassette with (x12) LC connections to a 24-Fiber, OM4, MTP/MPO connection. For use with N484-00U and N484-01U chassis. You can connect up to four cassettes per N484-01U or one per N484-00U. Supports 100/120 GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE 802.3ae maximum channel loss spec of <25db. Effectively trunks 24-fibers between IDFs and MDFs with a single 24-fiber MTP/MPO cable, breaking out to (x12) LC Duplex fiber connections. 24-fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity. Guaranteed compatibility when used with recommended cabling. Cassette designed specifically for use with N820-, N821-, and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory-terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy-duty 1.0mm cold-rolled steel.

ON ORDER

SKU: N484-1M24-LC12

Manufacturer: Eaton Eaton

RRP Price €463.70

Specifications

Network

Networking standards
IEEE 802.3ae
Maximum data transfer rate
120000 Mbit/s
Ports quantity
12
Connector(s)
MTP

Design

Product colour
Black
Material
Steel

Certificates

Compliance certificates
RoHS
Certification
REACH

Operational conditions

Operating temperature (T-T)
-20 - 50 °C

Weight & dimensions

Width
88.9 mm
Height
30.5 mm
Depth
119.4 mm
Weight
240 g

Packaging data

Package width
195.1 mm
Package depth
39.9 mm
Package height
150.1 mm
Package weight
380 g

Logistics data

Country of origin
China
Products per pallet
1 pc(s)
Master (outer) case width
395 mm
Master (outer) case length
160 mm
Master (outer) case height
225 mm
Master (outer) case gross weight
4.28 kg
Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332187175
