Eaton N818-10M InfiniBand/fibre optic cable 2x LC 2x ST OFNR Aqua colour, Black, White

Name: Eaton N818-10M InfiniBand/fibre optic cable 2x LC 2x ST OFNR Aqua colour, Black, White
Brand: Eaton
SKU: N818-10M
Price: 44.53 EUR
Availability: OutOfStock

- 10M (32.8-ft.) LC/ST, OM3 Rated
- Use with VCSEL and LED laser light sources
- High-Speed, High-Bandwidth, Low-Cost
- Backward compatible with legacy LAN's
- Ideal for Fibre Channel (SAN) applications
- IEEE 802.3ae and TIA LOMMF compliant
- 10gb Ethernet speed to 300 meters @850nm

ON ORDER

SKU: N818-10M

Manufacturer: Eaton Eaton

RRP Price €44.53

Specifications

Features

Cable length

10 m

Fibre optic type

OM3

Connector 1

2x LC

Connector 2

2x ST

Connector 1 gender

Male

Connector 2 gender

Male

Connector polish type

Cable type

OFNR

Product colour

Aqua colour, Black, White

Full duplex

Yes

Core diameter

50 µm

Cladding diameter

125 µm

Fiber mode structure

Multi-mode

Wavelengths supported

850 nm

Ethernet interface type

10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet

Insertion loss

0.2 dB

Jacket material

Low smoke zero halogen (LSZH)

Certificates

Certification

RoHS; REACH

Operational conditions

Operating temperature (T-T)

-20 - 60 °C

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Bending radius

2 cm

Packaging content

Quantity per pack

1 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

N/A

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

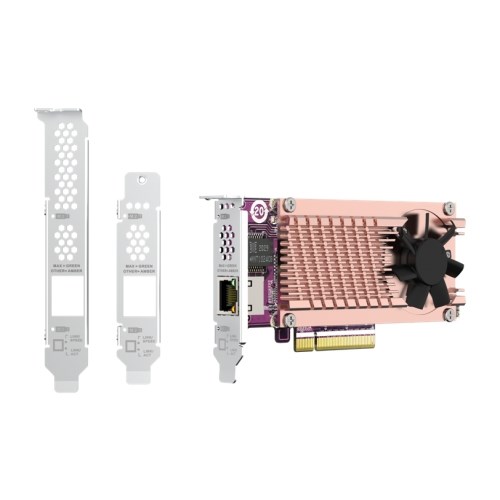

QNAP QM2-2S-220A interface cards/adapter Internal M.2 Cables & Adaptors
