Cisco Nexus N9K-C92348GC-X network switch Managed Gigabit Ethernet (10/100/1000) 1U Grey

Name: Cisco Nexus N9K-C92348GC-X network switch Managed Gigabit Ethernet (10/100/1000) 1U Grey
Brand: Cisco
SKU: N9K-C92348GC-X
Price: 4143.11 EUR
Availability: OutOfStock

Built on the latest Cisco Cloud Scale technology, the Cisco Nexus 9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers. It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.

ON ORDER

SKU: N9K-C92348GC-X

Manufacturer: Cisco Cisco

RRP Price €4,143.11

Specifications

Management features

Switch type

Managed

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Fiber optic connector

QSFP28, SFP28

QSFP28 ports quantity

SFP28 ports quantity

USB 2.0 ports quantity

Network

10G support

Yes

Spanning tree protocol

Yes

VLAN support

Yes

Number of VLANs

4096

Data transmission

MAC address table

97000 entries

Packet buffer memory

40 MB

Security

Access Control List (ACL)

Yes

Access Control List (ACL) egress

2000

Access Control List (ACL) ingress

3000

IGMP snooping

Yes

IGMP entries

8000

Multicast features

Multicast support

Yes

Design

Rack mounting

Yes

Form factor

Product colour

Grey

Number of fans

3 fan(s)

Performance

Built-in processor

Yes

Internal memory

8000 MB

Noise level

71.6 dB

Mean time between failures (MTBF)

474571 h

Power

Power supply included

Yes

Number of power supply units

AC input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Power consumption (typical)

150 W

Power consumption (max)

245 W

Power over Ethernet (PoE)

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 85%

Storage relative humidity (H-H)

5 - 85%

Operating altitude

0 - 4000 m

Weight & dimensions

Width

439 mm

Depth

457 mm

Height

44 mm

Certificates

Compliance certificates

RoHS

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Cisco

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

N/A

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

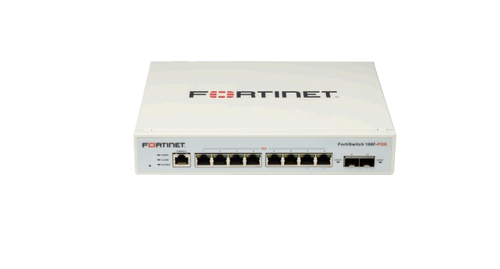

Fortinet FortiSwitch 108F-POE Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White Switches
