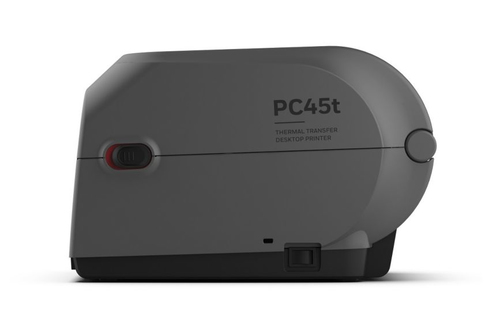

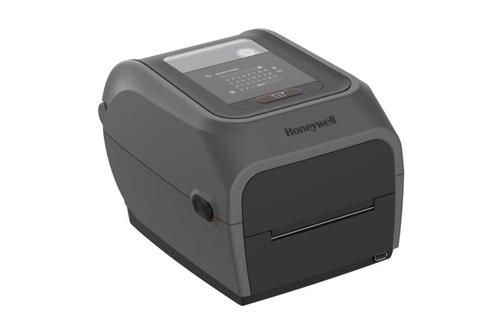

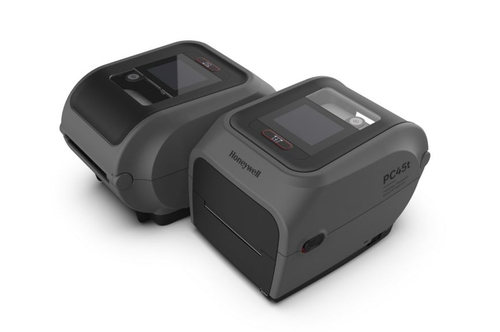

Honeywell PC45T label printer Thermal transfer 203 x 203 DPI Wired & Wireless Ethernet LAN Wi-Fi Bluetooth

The PC45T thermal transfer printer brings powerful performance, flexible configuration, reliable connectivity, and easy integration in a compact design to tackle rapidly changing everyday work environments.

PC45T is a 4-inch thermal transfer desktop printer that offers a large touch screen, enterprise-level ruggedness, and multiple new design accessories to support various needs. The PC45T is designed with flexibility in mind, allowing businesses to easily change between thermal transfer and direct thermal media.

Honeywell Printer Edgeâ„¢ platform provides a centralized management system for your printer network. Allowing real-time visibility, automated software updates, and enhanced security. This efficient and cost effective solution for businesses looking to optimize printer operations, Honeywell Printer Edge streamlines workflows and helps reduce downtime, making it easier for you to manage costs.

Get connected and stay connected with Wi-Fi 5 and Bluetooth 5.1 LE for continuous productivity. Benefit from WLAN and optional WWAN connectivity for fast data capture allowing for accelerated deployments. With optional low media and low ribbon enabled sensor and RFID, take the guesswork out printer maintenance to avoid unnecessary operational downtime.

Whether on a local server or utilizing the Cloud, the PC45 supports variable network protocols and multiple print languages allowing for easy integration and a seamless transition. Smart Parse technology from Honeywell gives the ability to resize objects, barcodes, or font type without any need to get in on the system backend. Honeywell Operational Intelligence takes it one step further providing remote management capabilities for real-time diagnostics and output performance tracking.

ON ORDER

SKU: PC45T000003300

Manufacturer: Honeywell Honeywell

RRP Price €659.22

Specifications

Printing

Print technology
Thermal transfer
Colour
No
Maximum resolution
203 x 203 DPI
Print speed
8 lpm
Maximum printing width
10.8 cm
Printing characters
Barcode

Paper handling

Maximum label width
10.8 cm
Maximum roll diameter
12.7 cm
Media thickness
0.05 - 0.16 mm
Maximum media length
6.35 mm
Core diameter
3.81 cm
Core diameters supported
12.7 mm (0.5"), 25.4 mm (1"), 38.1 mm (1.5")

Ports & interfaces

Connectivity technology
Wired & Wireless
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Bluetooth version
5.2
USB port
Yes
USB 2.0 ports quantity
1
RS-232 ports
1

Performance

Page description languages
DP, DPL, XML, ZPL II, IPL, PDF
Internal memory
256 MB
Flash memory
512 MB
Built-in barcodes
QR Code
Built-in RFID module
Yes
Security algorithms
LEAP, PEAP, TLS, TTLS, WEP, WPA, WPA2, WPA3

Design

Product colour
Black
Built-in display
Yes
Display
LCD
Display diagonal
8.89 cm (3.5")
Display resolution
320 x 240 pixels
Colour display
Yes
Backlight display
Yes
Control type
Buttons

Power

AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
AC adapter output voltage
24 V
AC adapter output current
3.15 A
Power source type
DC

System requirements

Windows operating systems supported
Yes
Linux operating systems supported
Yes

Operational conditions

Storage relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 70 °C

Weight & dimensions

Width
212.9 mm
Depth
179.6 mm
Height
285.5 mm
Weight
2.7 kg

Technical details

Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
