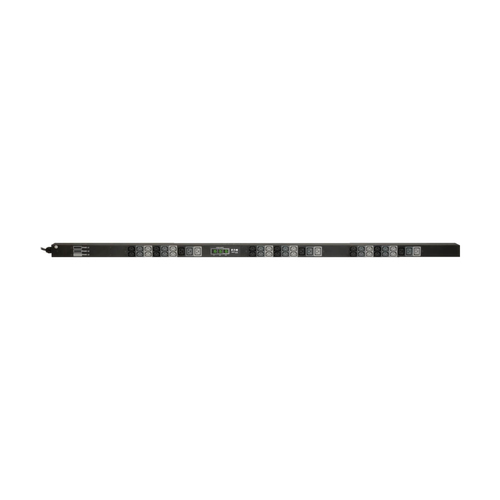

Tripp Lite PDU3XMV6G20 11.5kW 3-Phase Local Metered PDU, 208-240V (36 C13 & 9 C19), IEC-309 16/20A Red, 360-415V Input, 6 ft. (1.83 m) Cord, 0U Vertical

11.5kW Local Metered Power Distribution Unit / rack PDU (rPDU)

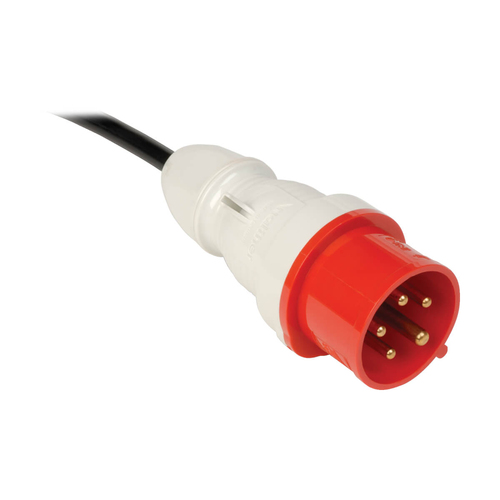

380-415V IEC-309 Red 16/20A (3P+N+E) 3-phase input connection

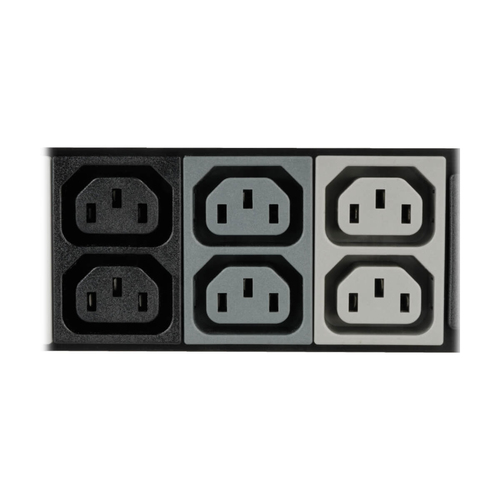

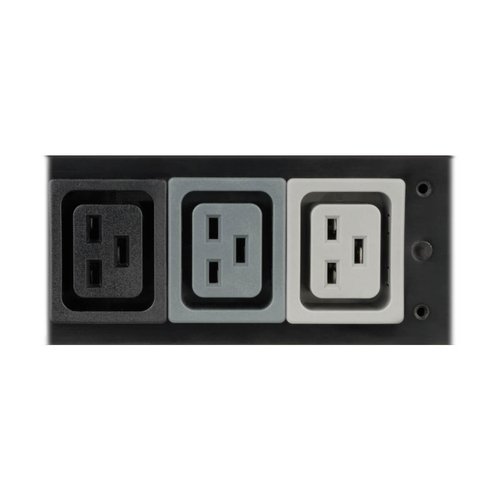

208-240V output with 36 C13 & 9 C19 single phase output receptacles
Supports 50/60Hz worldwide applications
0U / 1778mm vertical rackmount installation supported

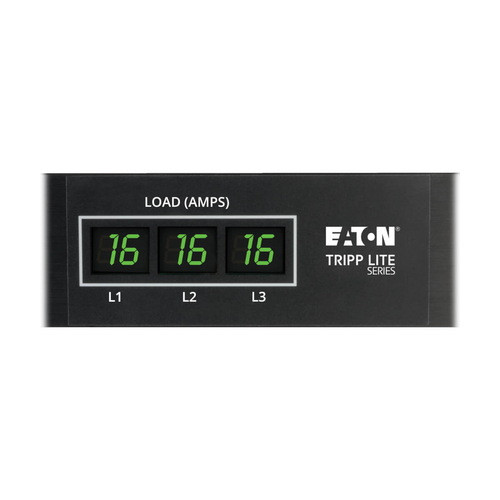

Outlets are arranged in 3 local metered 15 outlet load banks

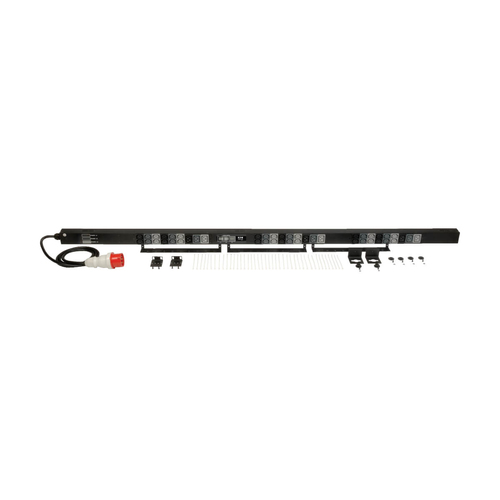

Included cord retention brackets keep vital network equipment plugged in and continuously powered

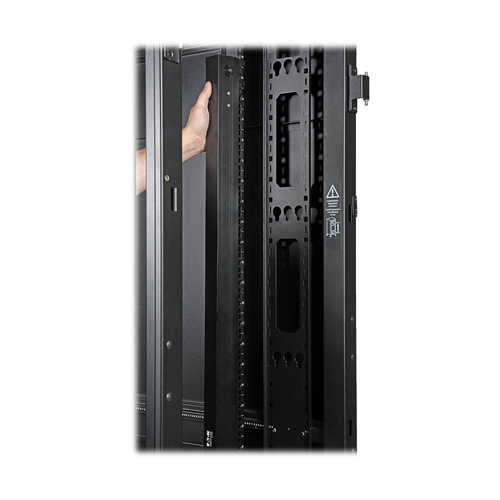

Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications (set of 2 9mm buttons pre-installed, 2 9mm and 4 6mm spare buttons included) for other mounting applications
TAA Compliant

ON ORDER

SKU: PDU3XMV6G20

Manufacturer: Eaton Eaton

RRP Price €771.57

Specifications

Design

PDU types
Metered
Rack capacity
0U
Mounting
Vertical
Housing material
Steel
Product colour
Black

Ports & interfaces

AC outlets quantity
45 AC outlet(s)
AC outlet types
C13 coupler, C19 coupler
Input connection type
IEC-309 16A RED (3P+N+E)

Features

Cable length
1.8 m

Power

Nominal input voltage
380-415 V
AC input frequency
50 - 60 Hz
Maximum current
16 A
Nominal output voltage
220-240 V
Load capacity
11500 VA

Certificates

Compliance certificates
RoHS
Certification
UL, CSA, NOM, CE

Operational conditions

Operating relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
56 mm
Depth
49 mm
Height
1778 mm
Weight
4.08 kg

Packaging data

Package weight
6.85 kg
Package width
109 mm
Package depth
1925 mm
Package height
155 mm

Logistics data

Country of origin
Taiwan
Products per master (outer) case
1 pc(s)

Accessories
