Tripp Lite PDUMV20HVNETLX 3.7kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA

Tripp Lite PDUMV20HVNETLX 3.7kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA

Name: Tripp Lite PDUMV20HVNETLX 3.7kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (20 C13 & 4 C19), C20/L6-20P, 0U, TAA
Brand: Eaton
SKU: PDUMV20HVNETLX
Price: 1043.09 EUR
Availability: OutOfStock

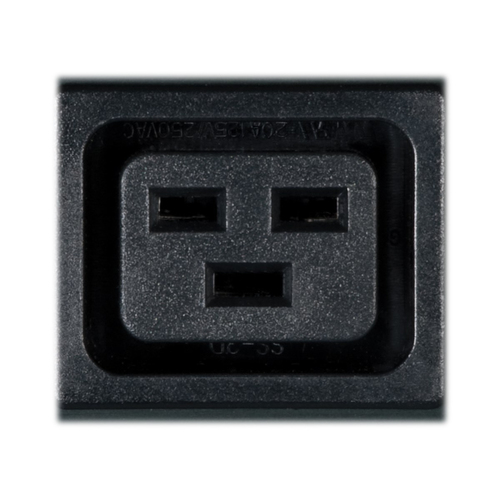

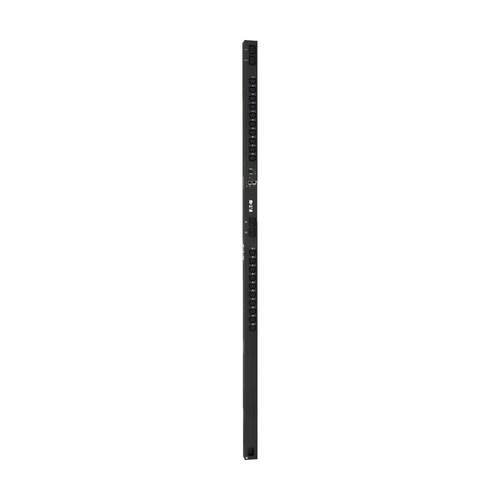

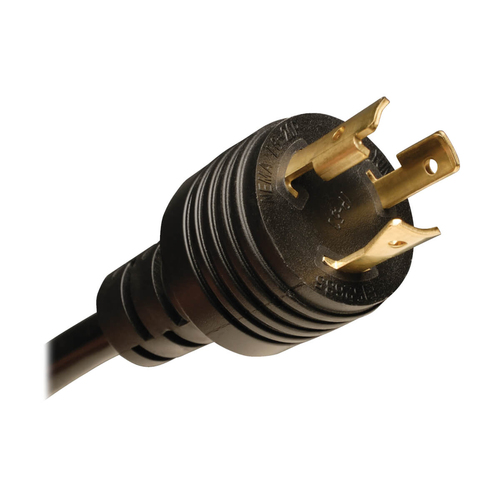

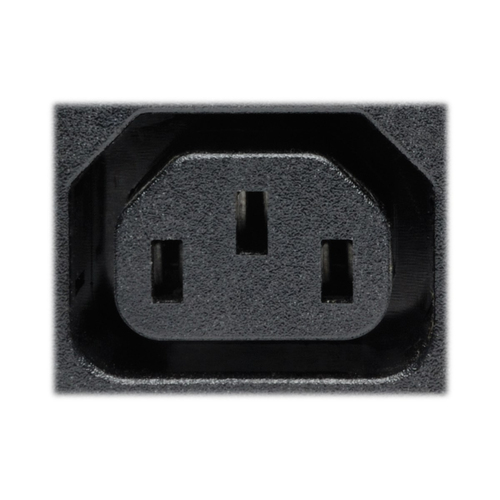

The PDUMV20HVNETLX 3.3-3.7kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-ft. (3.05 m) cord with NEMA L6-20P plug connects the PDU's C20 inlet to a compatible AC power source, generator or protected UPS.

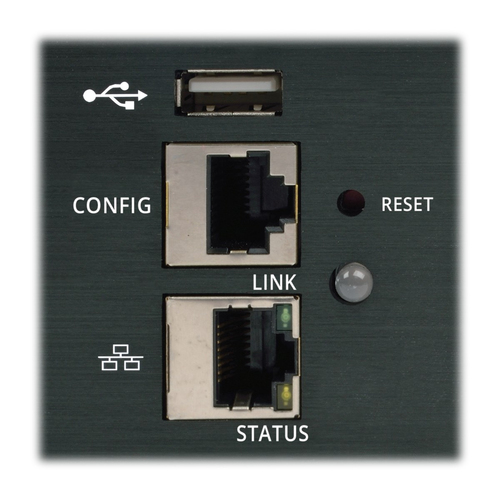

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

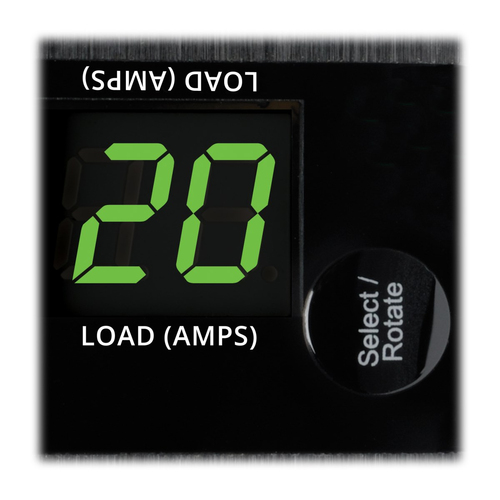

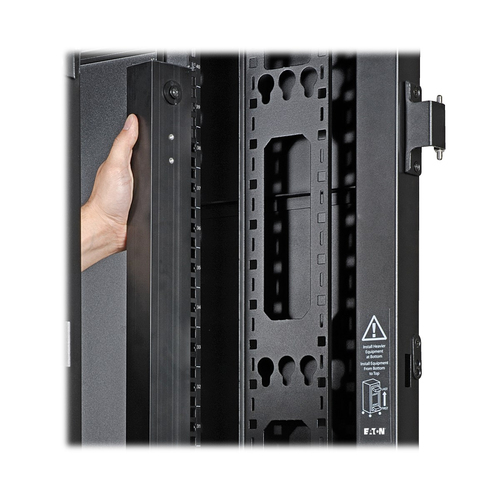

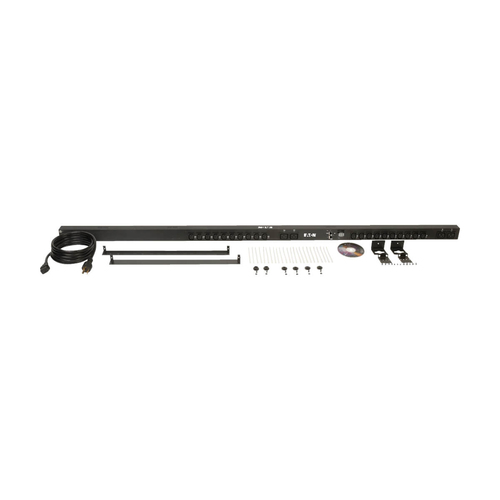

A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

ON ORDER

SKU: PDUMV20HVNETLX

Manufacturer: Eaton Eaton

RRP Price €1,043.09

Specifications

Design

PDU types

Switched

Type

Single-phase

Rack capacity

Mounting

Vertical

Product colour

Black

Display

LCD

Ports & interfaces

AC outlets quantity

24 AC outlet(s)

Power plug

C20 coupler

AC outlet types

C13 coupler, C19 coupler

Features

LED indicators

Power, Status

Cable length

3.05 m

Management features

Supported network protocols

HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP

Power

Nominal input voltage

200-240 V

Maximum current

20 A

Certificates

Compliance certificates

RoHS

Certification

TAA, UL, CE, FCC, NOM, EN55022:2010+2011, EN55024:2010

Operational conditions

Storage temperature (T-T)

-15 - 60 °C

Operating relative humidity (H-H)

0 - 95%

Weight & dimensions

Width

56 mm

Depth

67 mm

Height

17778 mm

Weight

3.86 kg

Packaging data

Package weight

6.44 kg

Package width

162.6 mm

Package depth

1854.2 mm

Package height

134.6 mm

Logistics data

Country of origin

Taiwan

Products per master (outer) case

1 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

3.86 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
