Tripp Lite PDUMV32HV 7.7kW Single-Phase Local Metered PDU, 200-240V Outlets (8 C19 and 40 C13), IEC-309 32A Blue Input, 10 ft. (3.05 m) Cord, 0U Vertical, TAA, 70 in.

Tripp Lite PDUMV32HV 7.7kW Single-Phase Local Metered PDU, 200-240V Outlets (8 C19 and 40 C13), IEC-309 32A Blue Input, 10 ft. (3.05 m) Cord, 0U Vertical, TAA, 70 in.

Name: Tripp Lite PDUMV32HV 7.7kW Single-Phase Local Metered PDU, 200-240V Outlets (8 C19 and 40 C13), IEC-309 32A Blue Input, 10 ft. (3.05 m) Cord, 0U Verti...
Brand: Eaton
SKU: PDUMV32HV
Price: 582.92 EUR
Availability: OutOfStock

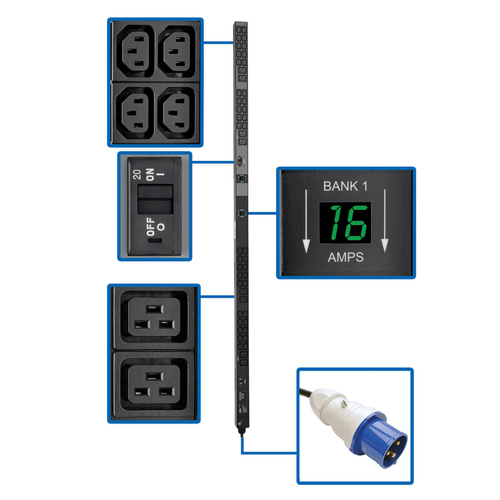

The 70-inch (178-centimeter) PDUMV32HV 32A 200-240V 7.7kW Single-Phase Local Metered Power Distribution Unit features 48 outlets for distributing single-phase AC power to rack-mounted equipment, including computers, routers, switches and servers.

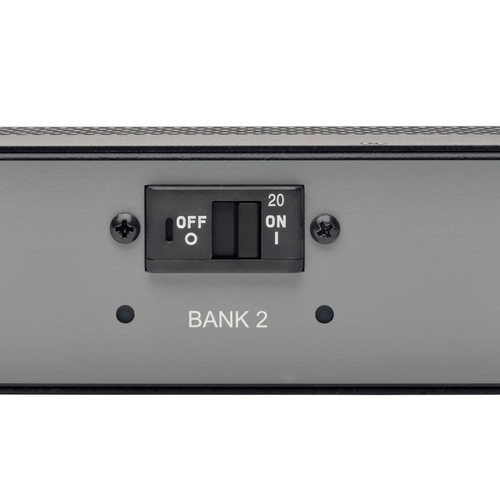

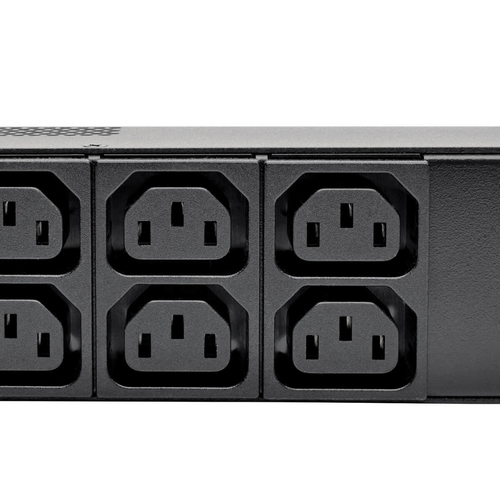

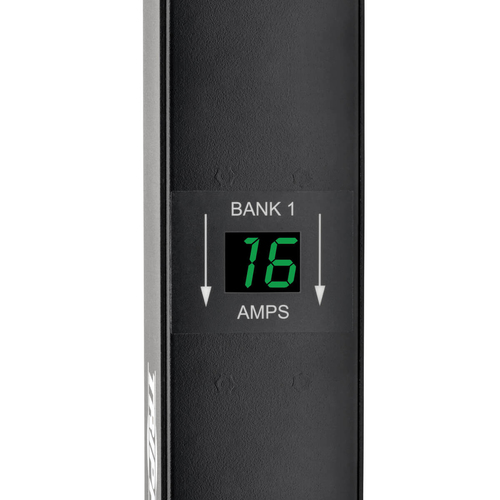

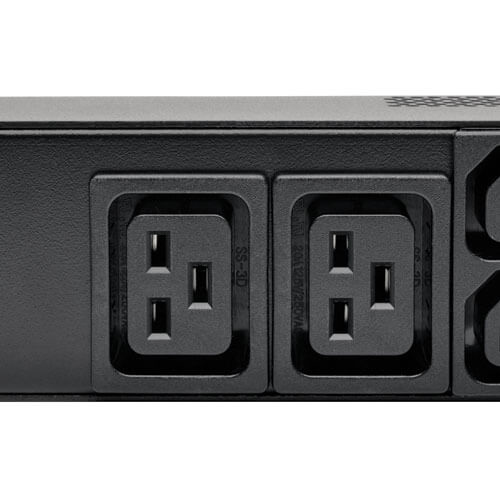

Outlets are arranged in two separate load banks, each with 24 outlets (4 C19 and 20 C13), a dedicated 20A circuit breaker and a digital meter that reports the bank's real-time output current in amps. The ammeters let you visually monitor each bank and maintain balanced loads to prevent circuit overloads and downtime due to breakers tripping. Special guards prevent the breakers from tripping accidentally. Outlets, breakers and ammeters are color-coded and labeled for easy identification.

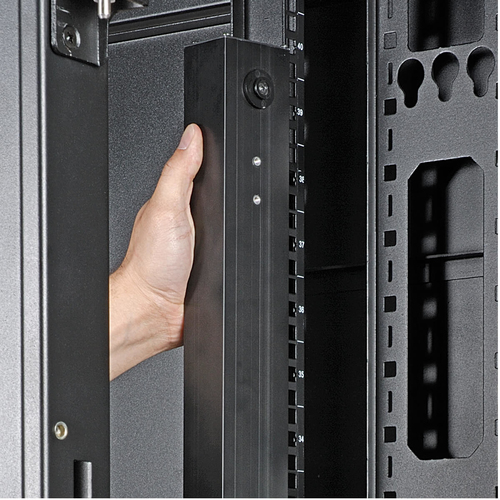

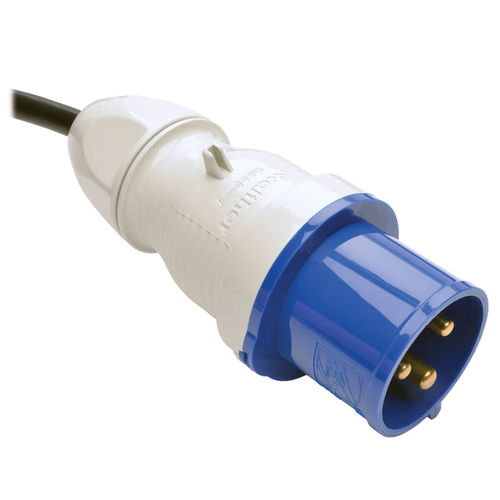

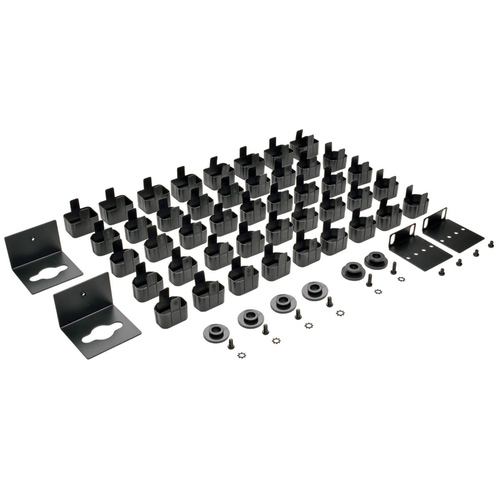

An ideal PDU for server rooms, network closets and data centers, the PDUMV32HV's all-metal housing comes ready to mount vertically in your rack using the preinstalled 9 mm buttons or the included hardware. The IEC-309 32A blue input plug with 10-ft. (3.05 m) cord connects to your facility's compatible AC power source, generator or protected UPS. Included C20 and C14 plug-lock inserts connect to your components' plugs to ensure they remain connected and continuously powered. Use the included ground screw to connect any equipment that requires a chassis ground.

ON ORDER

SKU: PDUMV32HV

Manufacturer: Eaton Eaton

RRP Price €582.92

Specifications

Design

PDU types

Metered

Rack capacity

Mounting

Vertical

Housing material

Metal

Product colour

Black

Ports & interfaces

AC outlets quantity

48 AC outlet(s)

Power plug

IEC309

AC outlet types

C13 coupler, C19 coupler

Power

Nominal input voltage

230 V

Maximum current

32 A

Nominal output voltage

200-240 V

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-15 - 60 °C

Operating relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3000 m

Weight & dimensions

Width

245 mm

Depth

175 mm

Height

192.7 mm

Weight

5.9 kg

Packaging data

Package weight

7.98 kg

Package width

68.8 mm

Package depth

64 mm

Package height

177.8 mm

Logistics data

Country of origin

Taiwan

Master (outer) case GTIN (EAN/UPC)

10037332182811

Products per master (outer) case

1 pc(s)

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

5.9 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
