Cisco SFP-10G-BXU-I network transceiver module Fiber optic 10000 Mbit/s SFP+ 1270 nm

Name: Cisco SFP-10G-BXU-I network transceiver module Fiber optic 10000 Mbit/s SFP+ 1270 nm
Brand: Cisco
SKU: SFP-10G-BXU-I
Price: 8895.88 EUR
Availability: OutOfStock

The Cisco SFP-10G-BXD-I and SFP-10G-BXU-I SFPs operate on a single strand of standard SMF.

A SFP-10G-BXD-I device is always connected to a SFP-10G-BXU-I device with a single strand of standard SMF with an operating transmission range up to 10 km.

The communication over a single strand of fiber is achieved by separating the transmission wavelength of the two devices. SFP-10G-BXD-I transmits a 1330-nm channel and receives a 1270-nm signal, whereas SFP-10G-BXU-I transmits at a 1270-nm wavelength and receives a 1330-nm signal. The presence of a wavelength-division multiplexing (WDM) splitter integrated into the SFP to split the 1270-nm and 1330-nm light paths.

ON ORDER

SKU: SFP-10G-BXU-I

Manufacturer: Cisco Cisco

RRP Price €8,895.88

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

10000 Mbit/s

Interface type

SFP+

Single-mode fiber (SMF) supported

Yes

Fiber optic connector

Fiber cable diameters supported (core/cladding)

9/125 µm

SFP transceiver standard

Maximum transfer distance

10000 m

Wavelength

1270 nm

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u

Auto MDI/MDI-X

Yes

Features

Hot-Plug support

Yes

Operational conditions

Operating temperature (T-T)

-40 - 85 °C

Storage temperature (T-T)

-40 - 85 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Weight & dimensions

Width

13.4 mm

Depth

56.5 mm

Height

8.5 mm

Packaging content

Quantity per pack

1 pc(s)

Description

Manufacturer

Cisco

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

N/A

Country of Origin

N/A

Datasheet

No Data Sheet Found!

Accessories

No Accessories Found!

License

No License Found!

Related Products

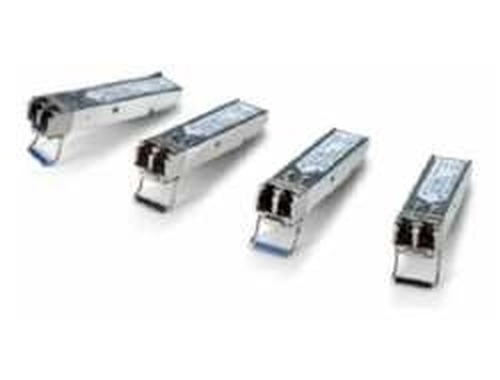

Cisco OC-3/STM-1 Pluggable Multi-Mode Fibre (2 km) Transceiver Module multi-mode fibre network media converter 1310 nm Modules

Cisco is the worldwide leader in networking for the Internet. Cisco provides the broadest line of solutions for transporting data, voice and video within buildings, across campuses, or around the world. Cisco solutions ensure that networks both public and private operate with maximum performance, security, and flexibility.

€920.27

CUSTOMIZED 10GBASE-ER XFP 1310NM 40KM DOM LC SMF TRANSCEIVER MODULE Modules

CUSTOMIZED 10GBASE-ER XFP 1310NM 40KM DOM LC SMF TRANSCEIVER MODULE

€694.80

800GBASE-XDR8 QSFP-DD 1310NM 2KM MODULE, GENERIC COMPATIBLE Modules

800GBASE-XDR8 QSFP-DD 1310NM 2KM MODULE, GENERIC COMPATIBLE

€13,671.60

800GBASE-2LR4 QSFP-DD 1310NM 10KM MODULE, GENERIC COMPATIBLE Modules

800GBASE-2LR4 QSFP-DD 1310NM 10KM MODULE, GENERIC COMPATIBLE

€16,309.20

CUSTOMIZED 1000BASE-CWDM SFP 1590NM 160KM DOM DUPLEX LC SMF TRANSCEIVER MODULE FOR TRANSMISSION Modules

CUSTOMIZED 1000BASE-CWDM SFP 1590NM 160KM DOM DUPLEX LC SMF TRANSCEIVER MODULE FOR TRANSMISSION

€138.00

CUSTOMIZED 1000BASE-ZXC SFP 1550NM 160KM DOM DUPLEX LC SMF COMMERCIAL TRANSCEIVER MODULE Modules

CUSTOMIZED 1000BASE-ZXC SFP 1550NM 160KM DOM DUPLEX LC SMF COMMERCIAL TRANSCEIVER MODULE

€262.80

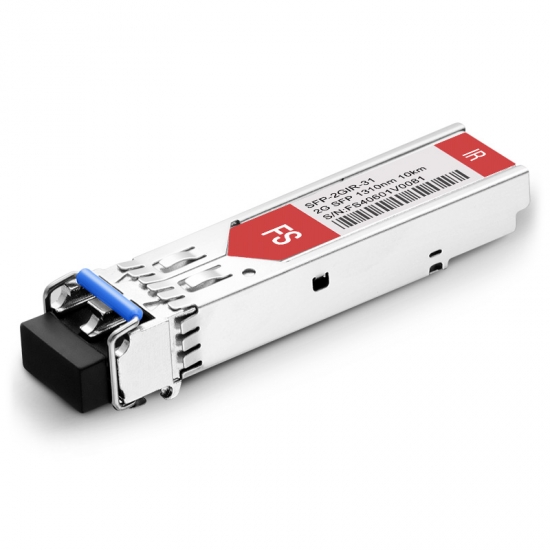

2G FIBRE CHANNEL SFP 1310NM 10KM MODULE, CISCO COMPATIBLE Modules

2G FIBRE CHANNEL SFP 1310NM 10KM MODULE, CISCO COMPATIBLE

€145.20

CUSTOMIZED NETGEAR COMPATIBLE 10G CWDM XFP 1350-1450NM 20KM DOM LC SMF TRANSCEIVER MODULE FOR TRANSMISSION Modules

CUSTOMIZED NETGEAR COMPATIBLE 10G CWDM XFP 1350-1450NM 20KM DOM LC SMF TRANSCEIVER MODULE FOR TRANSMISSION

€742.80

CUSTOMIZED DUAL-RATE 1000BASE-LX AND 10GBASE-LR SFP+ 1310NM 10KM DOM DUPLEX LC SMF TRANSCEIVER MODULE Modules

CUSTOMIZED DUAL-RATE 1000BASE-LX AND 10GBASE-LR SFP+ 1310NM 10KM DOM DUPLEX LC SMF TRANSCEIVER MODULE

€66.00

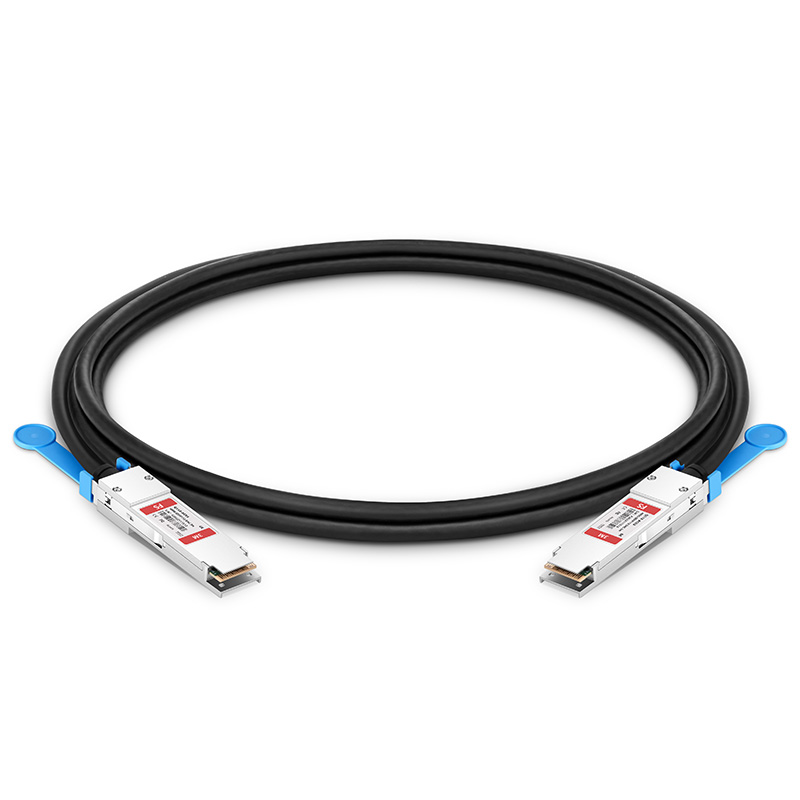

400G QSFP112 ACTIVE DAC TWINAX CABLE Modules
