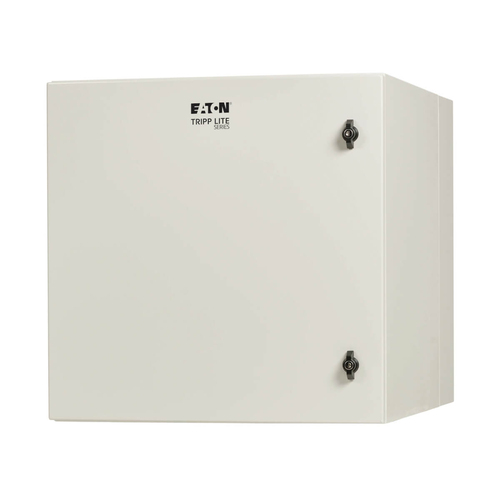

Tripp Lite SRN4G12US SmartRack Industrial Enclosure with Lock - NEMA 4, Wall Mount, Metal Construction, Hinged Back, 28 in. Depth, 12U, Gray

Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 28 in. Deep

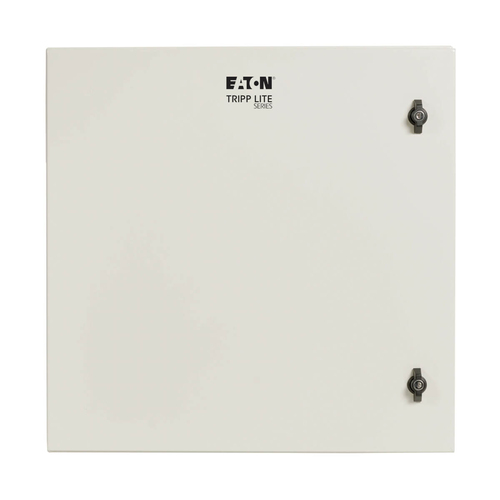

This SmartRack® industrial enclosure is designed to house 12U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable gray powder-coated finish, the SRN4G12US has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.

NEMA 4 Enclosure Designed for Protection Against Harsh Elements
The SRN4G12US protects its contents against the ingress of water (including rain, sleet, snow, splashing water and hose-directed water), solid foreign objects (including falling dirt and windblown dust) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.

Locks Securely to Help Prevent Theft, Damage and Tampering

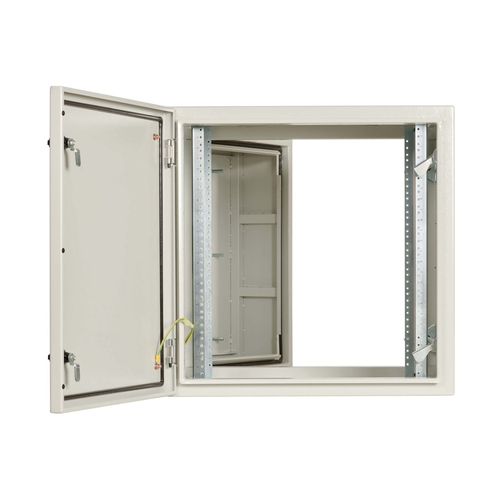

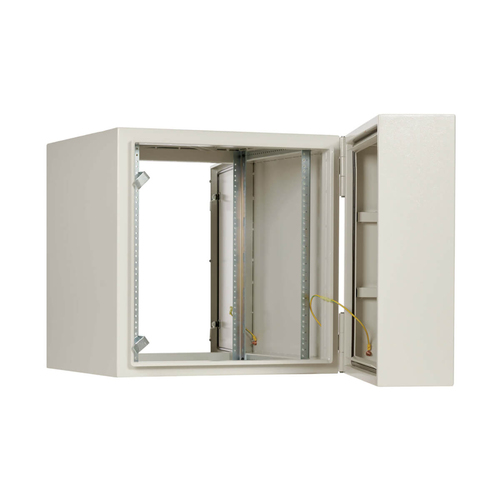

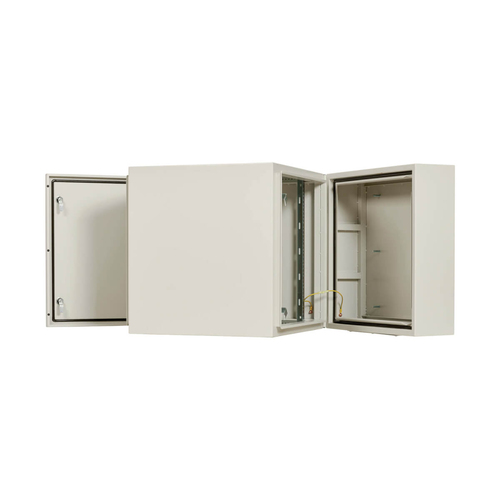

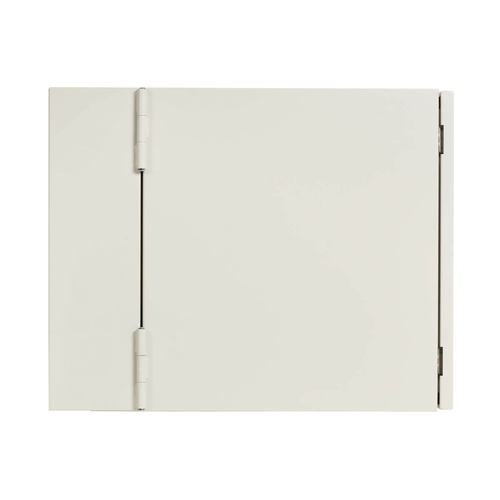

The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering, dust and other contaminants. The enclosure swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.

Easy Enclosure and Equipment Installation

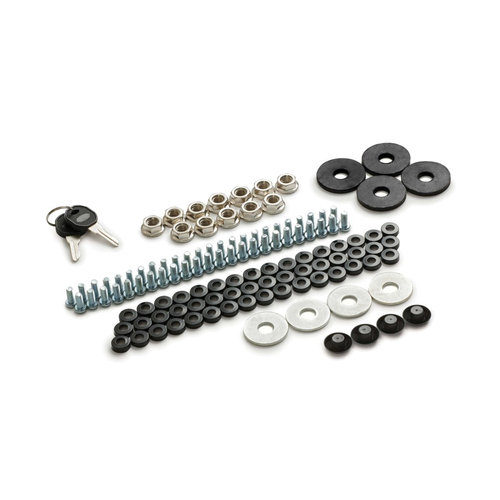

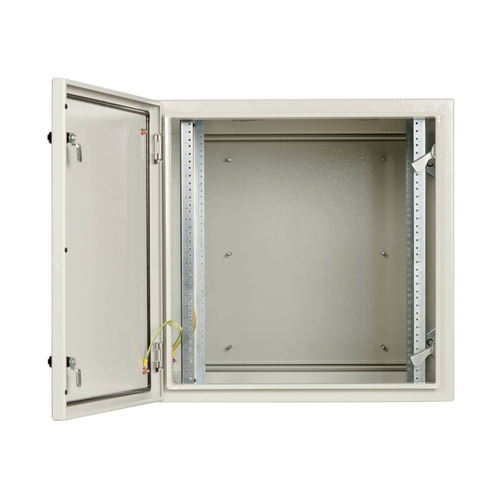

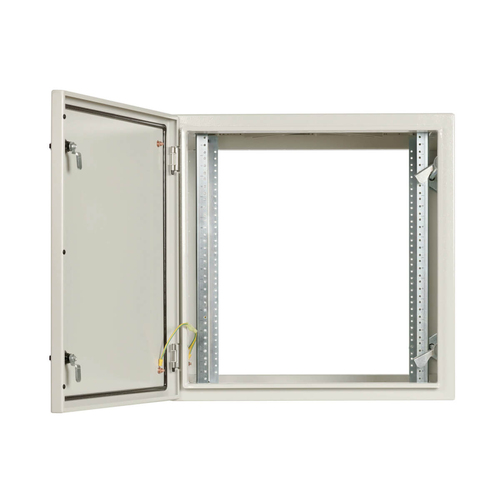

This 12U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 28 inches deep. Hardware for mounting equipment inside the enclosure is included.

ON ORDER

SKU: SRN4G12US

Manufacturer: Eaton Eaton

RRP Price €1,096.22

Specifications

Features

Rack capacity
12U
Type
Wall mounted rack
Maximum weight capacity
91 kg
Product colour
Grey
Material
Steel
Key lock
Yes

Weight & dimensions

Width
609.6 mm
Depth
763.3 mm
Height
611.6 mm
Weight
50.8 kg

Packaging data

Screws included
Yes
Number of screws
48
Manual
Yes
Package width
711.2 mm
Package depth
863.6 mm
Package height
745 mm
Package weight
79.4 kg

Technical details

Sustainability compliance
Yes
Compliance certificates
RoHS, REACH

Logistics data

Country of origin
China
Harmonized System (HS) code
8517.62.0090
Products per master (outer) case
1 pc(s)
